Material PVC
Height, mm 50
Width, mm 100
Length, mm 3000
Average filled area, sq.mm 4900
Thickness of metal sheet, mm 1,2
Perforation YES
Colour Light grey
Width, mm 100
Model Without connector
Height, mm 50
Surface protection Sendzimir galvanized
Material thickness, mm 1.2
Side wall perforation No
Material quality Other
Length, mm 3000
Material Steel
Mounting perforation in bottom Yes
Useful cross section, mm2 4900
Accessories
Joint Plate   h. 50
Code: 37301
Divider  h. 50 mt3
Code: 36480
Reduction 100mm, H50
Code: LR5100
Zinc paint spray 473 ml
Code: 37039HDZ

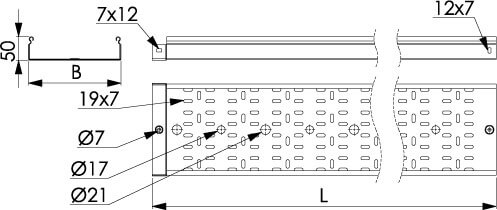

Drawings
Seria Name STEP SAT Intergraph Autodesk Revit DWG (dynamic blocks) AVEVA
S5 Combitech - metal sheet trays
S5 Combitech - metal sheet trays
S5 Combitech - metal sheet trays
S5 Combitech - metal sheet trays
S5 Combitech - metal sheet trays
S5 Combitech - metal sheet trays
Certificates
Name Document
