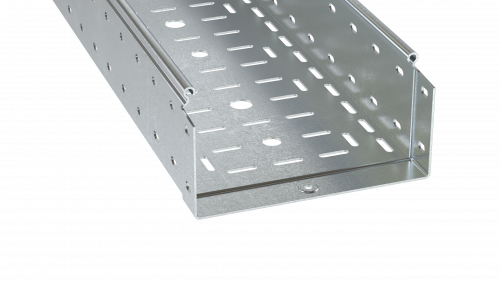

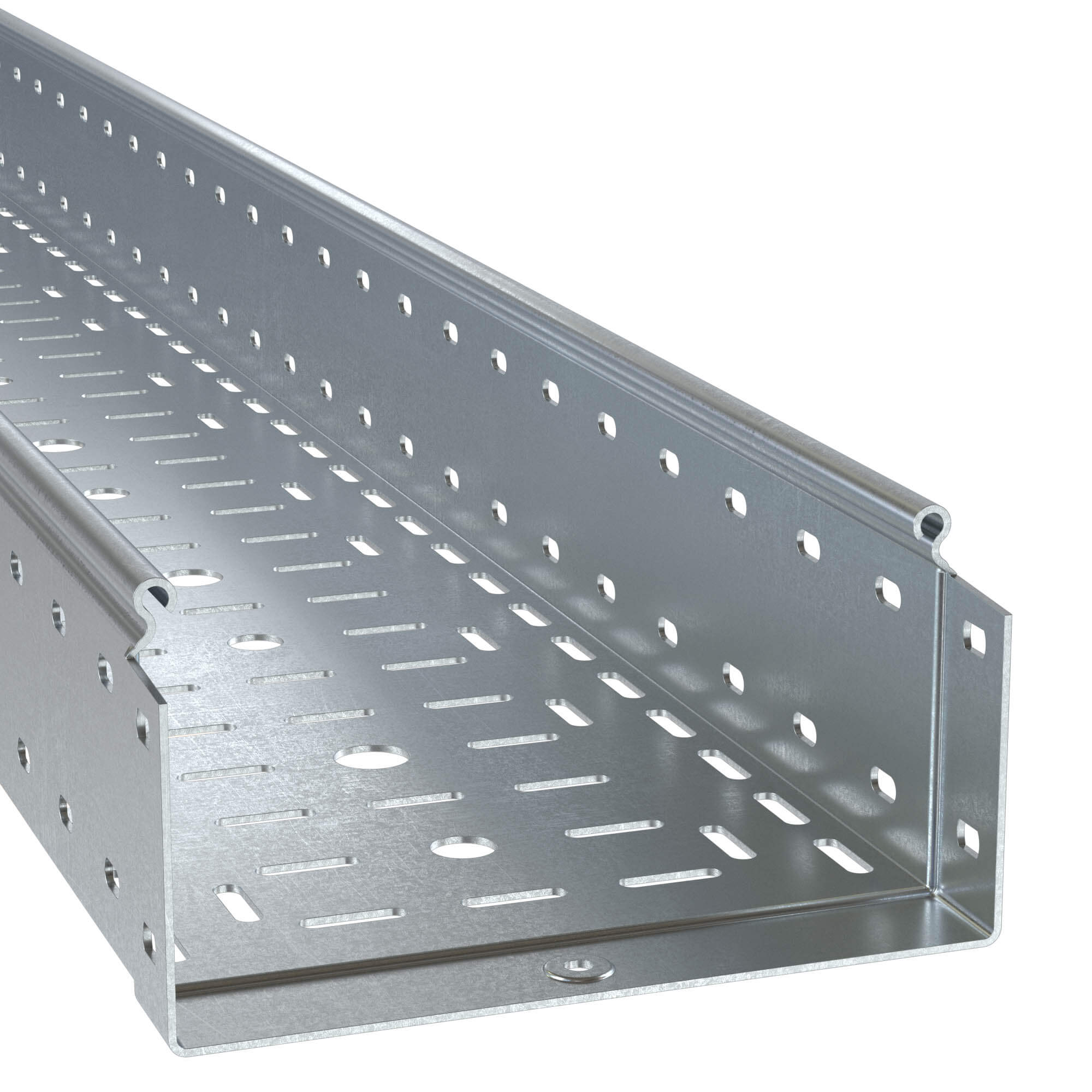

Perforated Straight Element 100x100 L6000, thickness 1,0 mm
Code: SPV60110
Perforated Straight Element 100x100 L6000, thickness 1,0 mm
Code: SPV60110
Width, mm | 100 |
Height, mm | 100 |
Surface protection | Sendzimir galvanized |
Material thickness, mm | 1 |
Length, mm | 6000 |
Material | Steel |
Mounting perforation in bottom | Yes |
Material quality | Steel |
Wide span model | Yes |
Colour | Light grey |
Model | Without connector |
Side wall perforation | Yes |
Suitable for circuit integrity | Yes |
Product type | Perforated straight elements |
Type | Metal sheet trays - " S5 Combitech" |
Height | 100 mm |
Length | 6000 mm |
Thickness | 1.0 mm |
Material | Pre-galvanized |
Width | 100 mm |
Accessories
Analogs

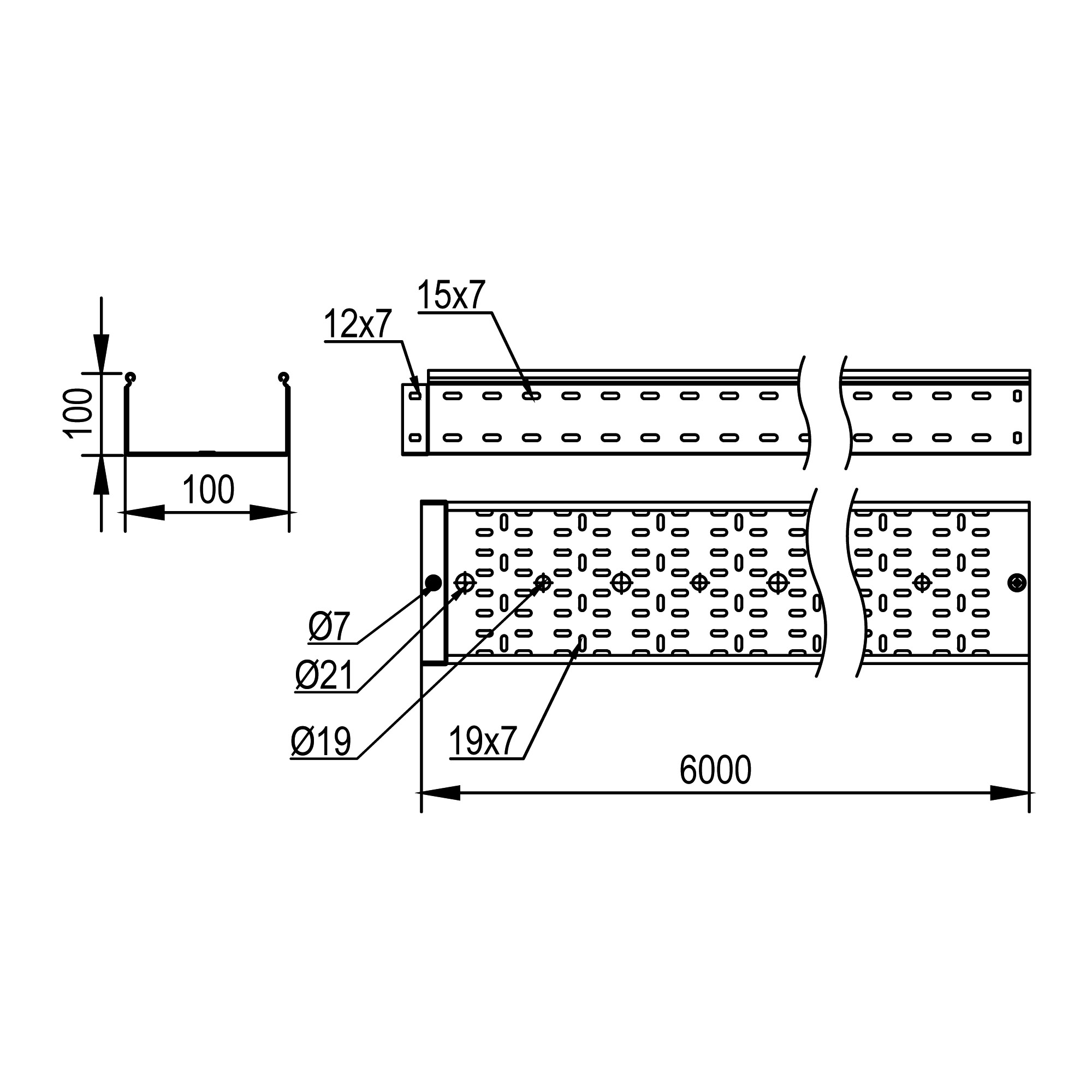

Drawings
Seria | Name | AVEVA | DWG (dynamic.) | Autodesk Revit | Intergraph | SAT | STEP |
---|---|---|---|---|---|---|---|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
Certificates
Name | Document |
---|---|
