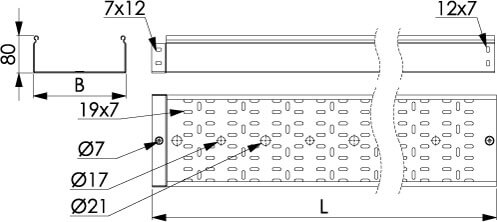

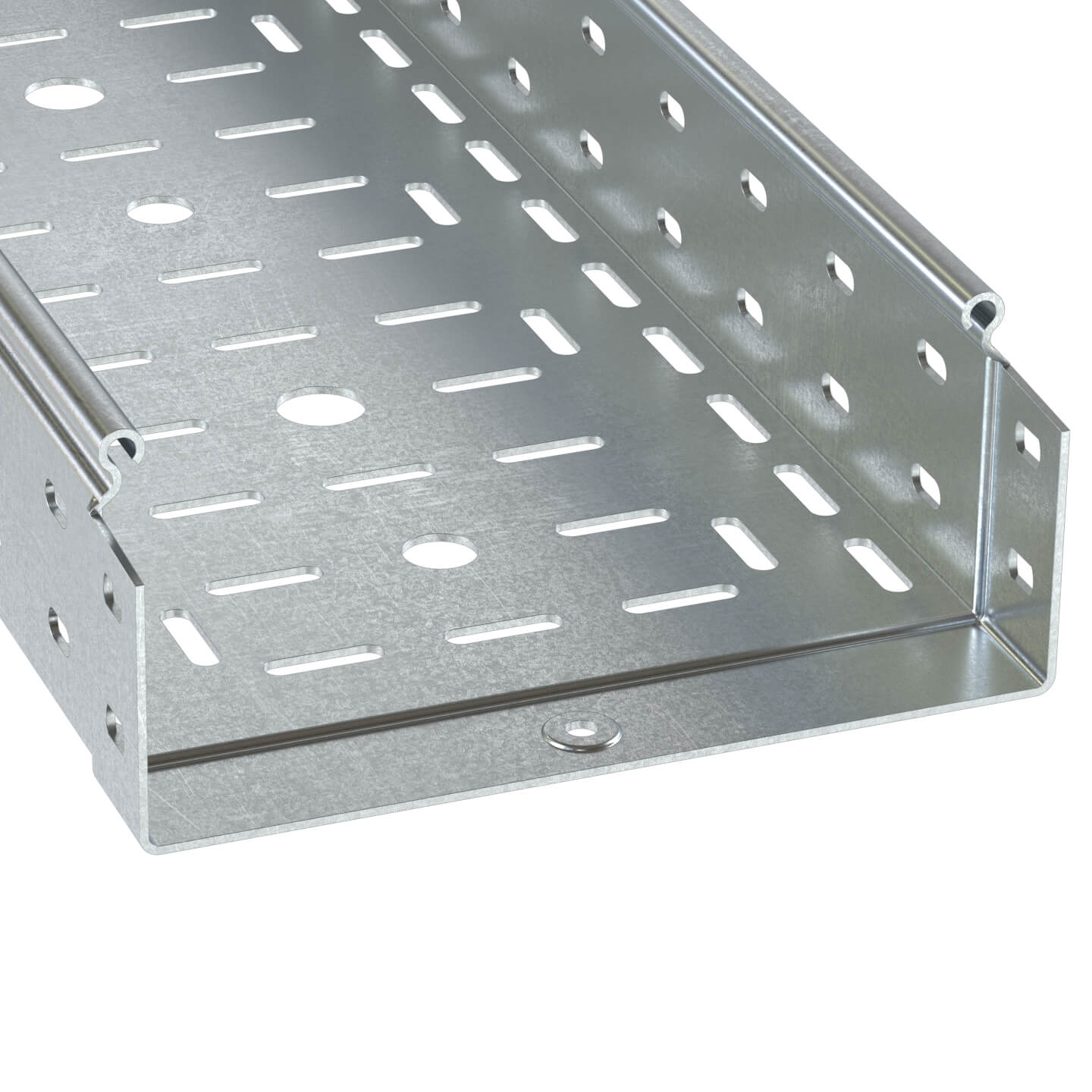

Perforated Straight Element 600х80 L3000 thick.1,0 mm

Code: 3530810
Perforated Straight Element 600х80 L3000 thick.1,0 mm
Perforated Straight Element 600х80 L3000 thick.1,0 mm
Colour Light grey
Width, mm 600
Model Without connector
Height, mm 80
Surface protection Sendzimir galvanized
Material thickness, mm 1
Side wall perforation No
Material quality Other
Length, mm 3000
Material Steel
Mounting perforation in bottom Yes
Useful cross section, mm2 48000
With cover No
Analogs
Perforated Straight Element600х80 L3000 thick1,2 mm
Perforated Straight Element600х80 L3000 thick1,2 mm
Code: 3530812
Perforated Straight Element 600х80 L3000 thick.1,2 mm, HDZ
Perforated Straight Element 600х80 L3000 thick.1,2 mm, HDZ
Code: 3530812HDZ
Perforated Straight Element600х80 L3000 thick1,2 mm ZL
Perforated Straight Element600х80 L3000 thick1,2 mm ZL
Code: 3530812ZL
Perforated Straight Element 600х80 L3000, HDZ
Perforated Straight Element 600х80 L3000, HDZ
Code: 35308HDZ
Perforated Straight Element 600х80 L3000 ZL
Perforated Straight Element 600х80 L3000 ZL
Code: 35308ZL
