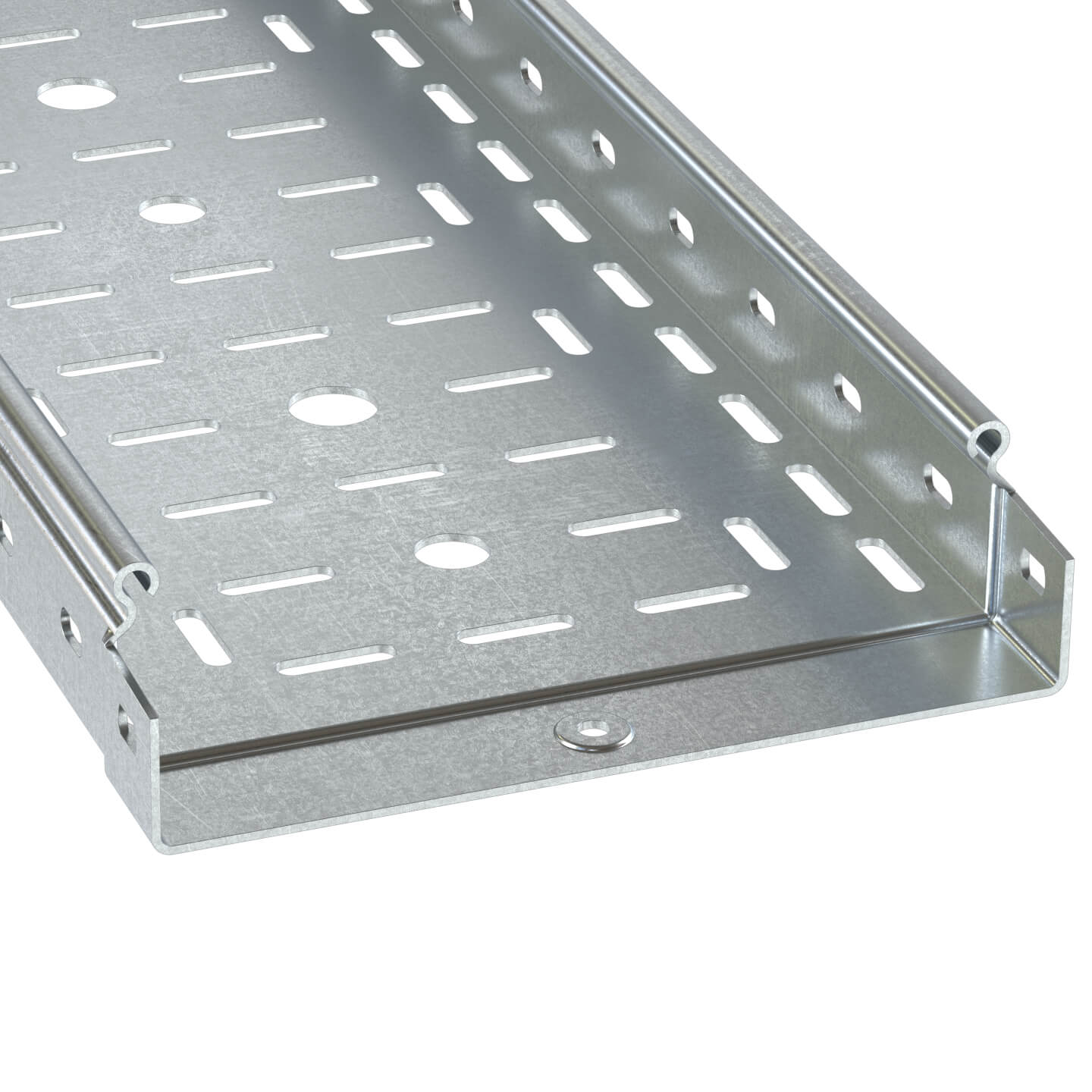

Perforated Straight Element 600х50 L 3000 thick.1,0 mm

Code: 3526810

Perforated Straight Element 600х50 L 3000 thick.1,0 mm

Code: 3526810
Colour Light grey
Width, mm 600
Model Without connector
Height, mm 50
Surface protection Sendzimir galvanized
Material thickness, mm 1
Side wall perforation Yes
Material quality Steel
Length, mm 3000
Material Steel
Mounting perforation in bottom Yes
Useful cross section, mm² 30000
Wide span model Yes
Suitable for circuit integrity Yes
Product type Perforated Straight Element
Length 3000 mm
Width 600 mm
Height 50 mm
Material Pre-galvanized steel
Type Metal sheet trays - " S5 Combitech"
Thickness 1 mm
Accessories
Analogs

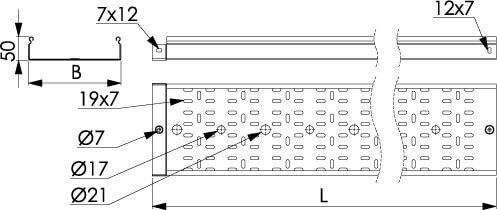

Drawings
Seria Name AVEVA DWG (dynamic.) Autodesk Revit Intergraph SAT STEP
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
Certificates
Name Document
