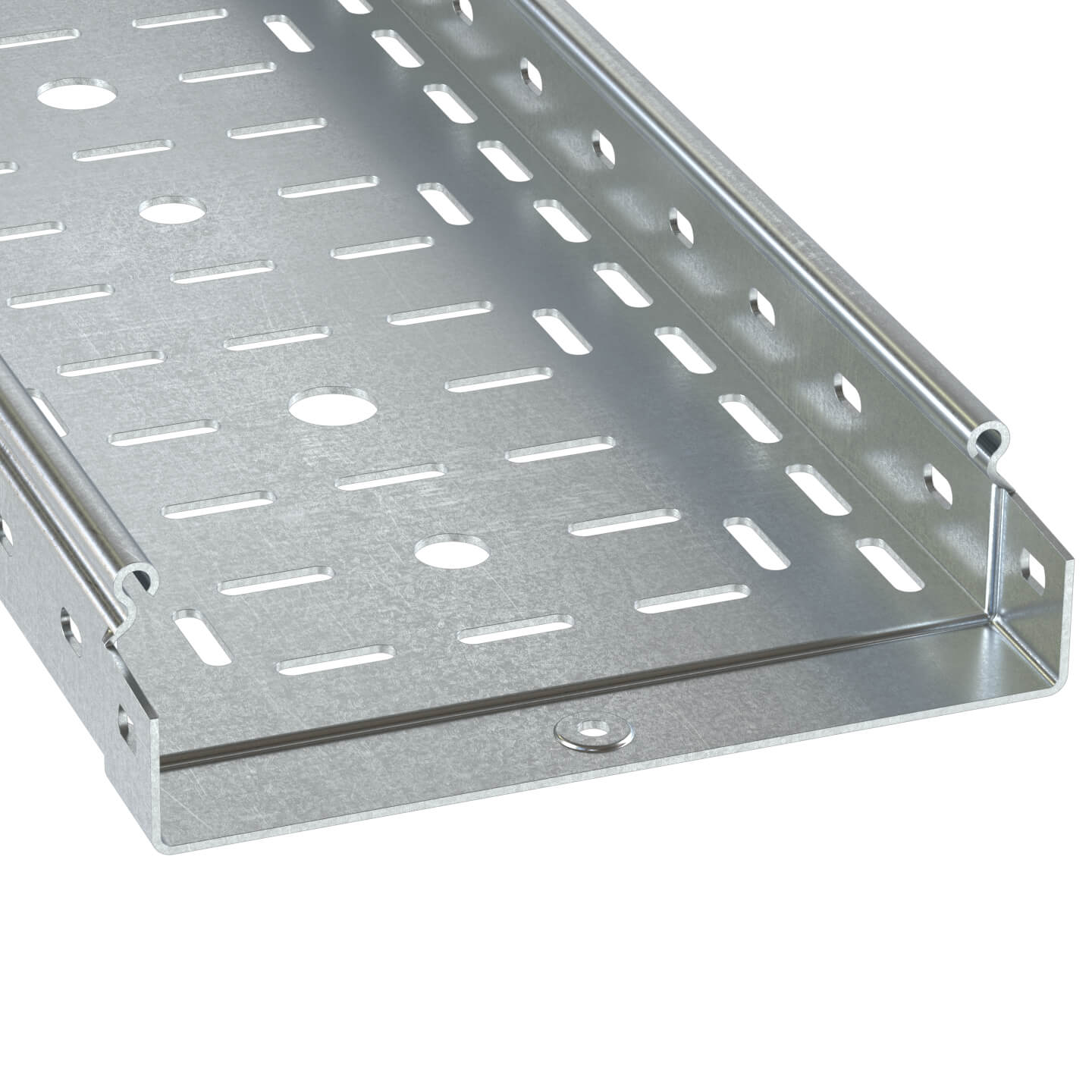

Perforated Straight Element 400х50 L 3000 thick.1,0 mm

Code: 3526610
Perforated Straight Element 400х50 L 3000 thick.1,0 mm
Perforated Straight Element 400х50 L 3000 thick.1,0 mm

Perforated Straight Element 400х50 L 3000 thick.1,0 mm

Code: 3526610
Removed from the product range . Proposed replacement: 35266
Colour Light grey
Width, mm 400
Model Without connector
Height, mm 50
Surface protection Sendzimir galvanized
Material thickness, mm 1
Side wall perforation Yes
Material quality Steel
Length, mm 3000
Material Steel
Mounting perforation in bottom Yes
Useful cross section, mm² 19600
Wide span model Yes
Suitable for circuit integrity Yes
Product type Perforated straight elements
Length 3000 mm
Width 400 mm
Height 50 mm
Material Pre-galvanized
Type Metal sheet trays - " S5 Combitech"
Thickness 1 mm

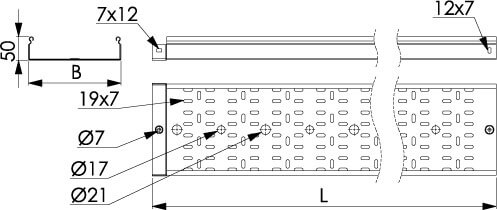

Drawings
