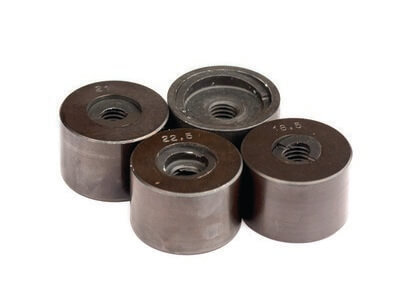

Matrix for the hole punch (code 37 039) diameter 22,5 mm

Code: 3703916
Matrix for the hole punch (code 37 039) diameter 22,5 mm
Matrix for the hole punch (code 37 039) diameter 22,5 mm
Length, mm 22.5
Max. material thickness, mm 1.2
Raw material Steel
Diameter (nominal), mm 22,5
