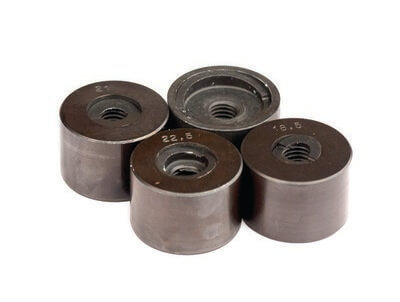

Matrix for the hole punch (code 37 039) diameter 19,5 mm

Code: 3703914
Matrix for the hole punch (code 37 039) diameter 19,5 mm
Matrix for the hole punch (code 37 039) diameter 19,5 mm
Length, mm 19.5
Max. material thickness, mm 1.2
Raw material Steel
Diameter (nominal), mm 19,5
