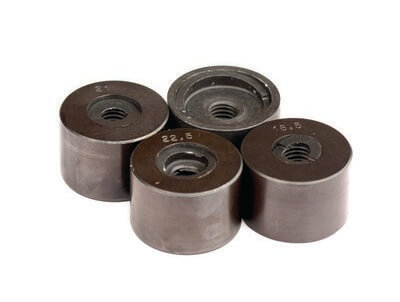

Matrix for the hole punch (code 37 039) diameter 18,5 mm

Code: 3703913
Matrix for the hole punch (code 37 039) diameter 18,5 mm
Matrix for the hole punch (code 37 039) diameter 18,5 mm
Length, mm 18.5
Max. material thickness, mm 1.2
Raw material Steel
Diameter (nominal), mm 18,5
