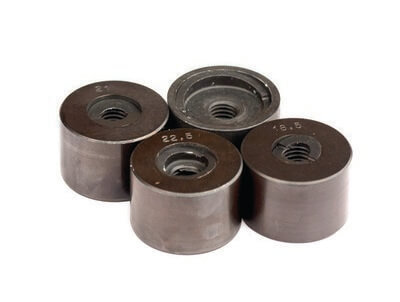

Matrix for the hole punch (code 37 039) diameter 16,5 mm

Code: 3703911
Matrix for the hole punch (code 37 039) diameter 16,5 mm
Matrix for the hole punch (code 37 039) diameter 16,5 mm
Length, mm 16.5
Max. material thickness, mm 1.2
Raw material Steel
Diameter (nominal), mm 16,5
