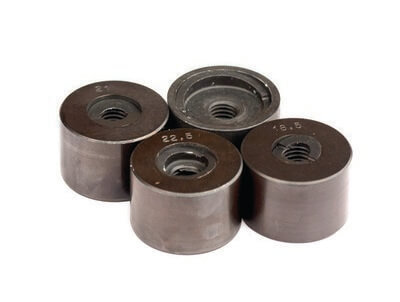

Matrix for the hole punch (code 37 039) diameter 15,5 mm

Code: 37039015
Matrix for the hole punch (code 37 039) diameter 15,5 mm
Matrix for the hole punch (code 37 039) diameter 15,5 mm
Length, mm 15.5
Max. material thickness, mm 1.2
Raw material Steel
Diameter (nominal), mm 15,5
