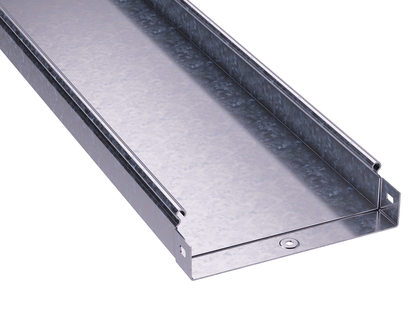

Non-perforated tray 300х50 L 3000, thickness 1,0 mm, stainless steel AISI304
Code: 3502510INOX
Non-perforated tray 300х50 L 3000, thickness 1,0 mm, stainless steel AISI304
Code: 3502510INOX
Side wall perforation | Yes |
Colour | Light grey |
Width, mm | 300 |
Model | Without connector |
Height, mm | 50 |
Surface protection | Bare |
Material thickness, mm | 1 |
Material quality | Stainless steel |
Length, mm | 3000 |
Material | Steel |
Mounting perforation in bottom | Yes |
Suitable for circuit integrity | Yes |
Stainless steel, pickled | Yes |
Product type | Non perforated straight elements |
Type | Metal sheet trays - " S5 Combitech" |
Height | 50 mm |
Length | 3000 mm |
Thickness | 1.0 mm |
Material | Stainless steel AISI 304 |
Width | 300 mm |
Accessories

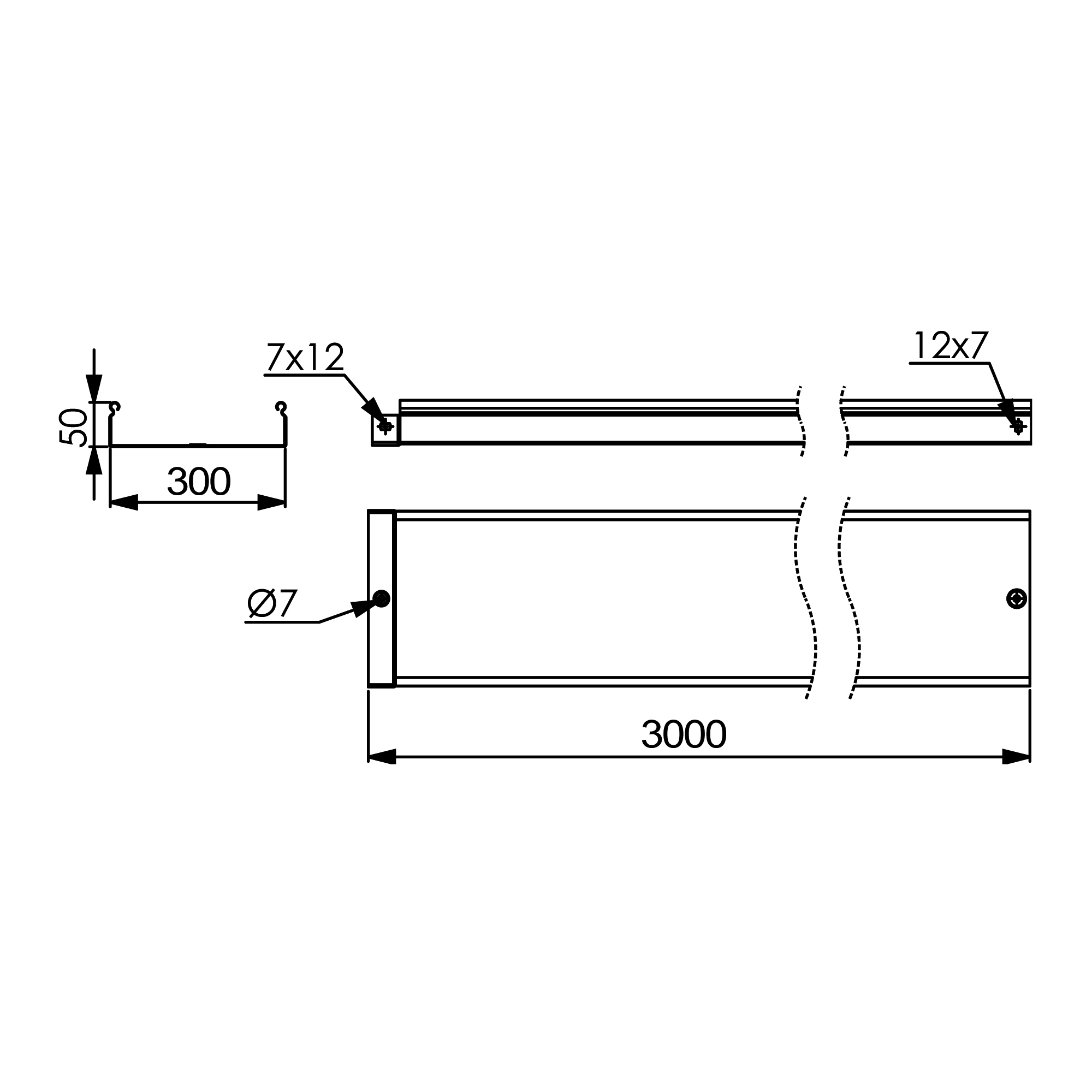

Drawings
Seria | Name | AVEVA | DWG (dynamic.) | Autodesk Revit | Intergraph | SAT | STEP |
---|---|---|---|---|---|---|---|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
Certificates
Name | Document |
---|---|
