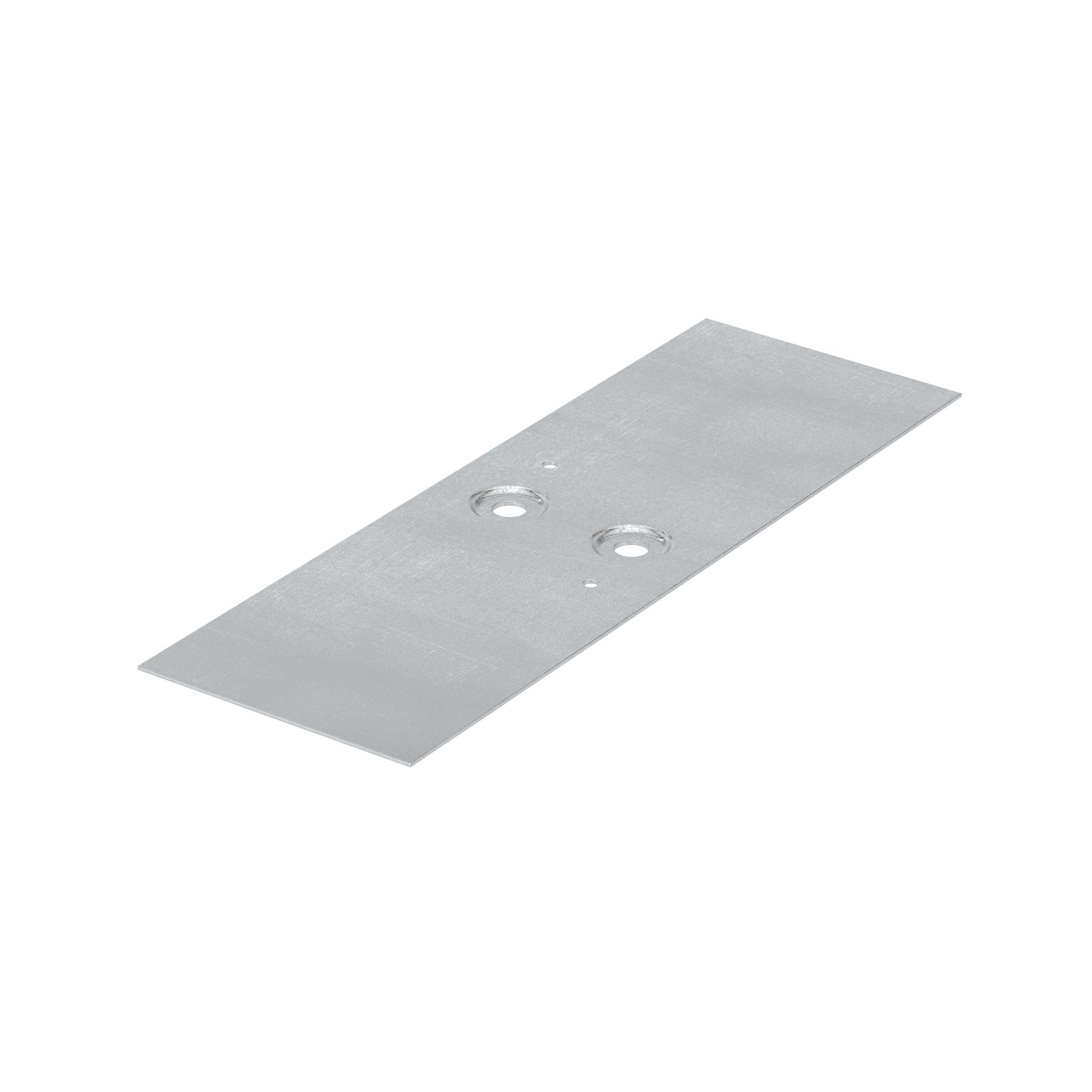

Joint for base b. 400 INOX
Code: 37356INOX
Joint for base b. 400 INOX
Code: 37356INOX
| Surface protection | Bare |
| Material quality | Stainless steel |
| Length, mm | 400 |
| Material | Steel |
| Suitable for wire mesh tray | Yes |
| Suitable for cable ladder | Yes |
| Suitable for cable tray | Yes |
| Stainless steel, pickled | Yes |
| Suitable for cable management system height, mm | 100 |
| Hinged joint horizontal | Yes |
| Hinged joint vertical | Yes |
| Suitable for circuit integrity | Yes |
| Suitable for cable management system width, mm | 400...400 |
| Colour | Light grey |
| Model | Joint clip bar |
| Type of connection | Screw connector |
| Product type | Mounting accessories |
| Type of accessories | Mounting accessories |
| Thickness | 1 mm |
| Material | Stainless steel AISI 304 |
| Width | 400 mm |

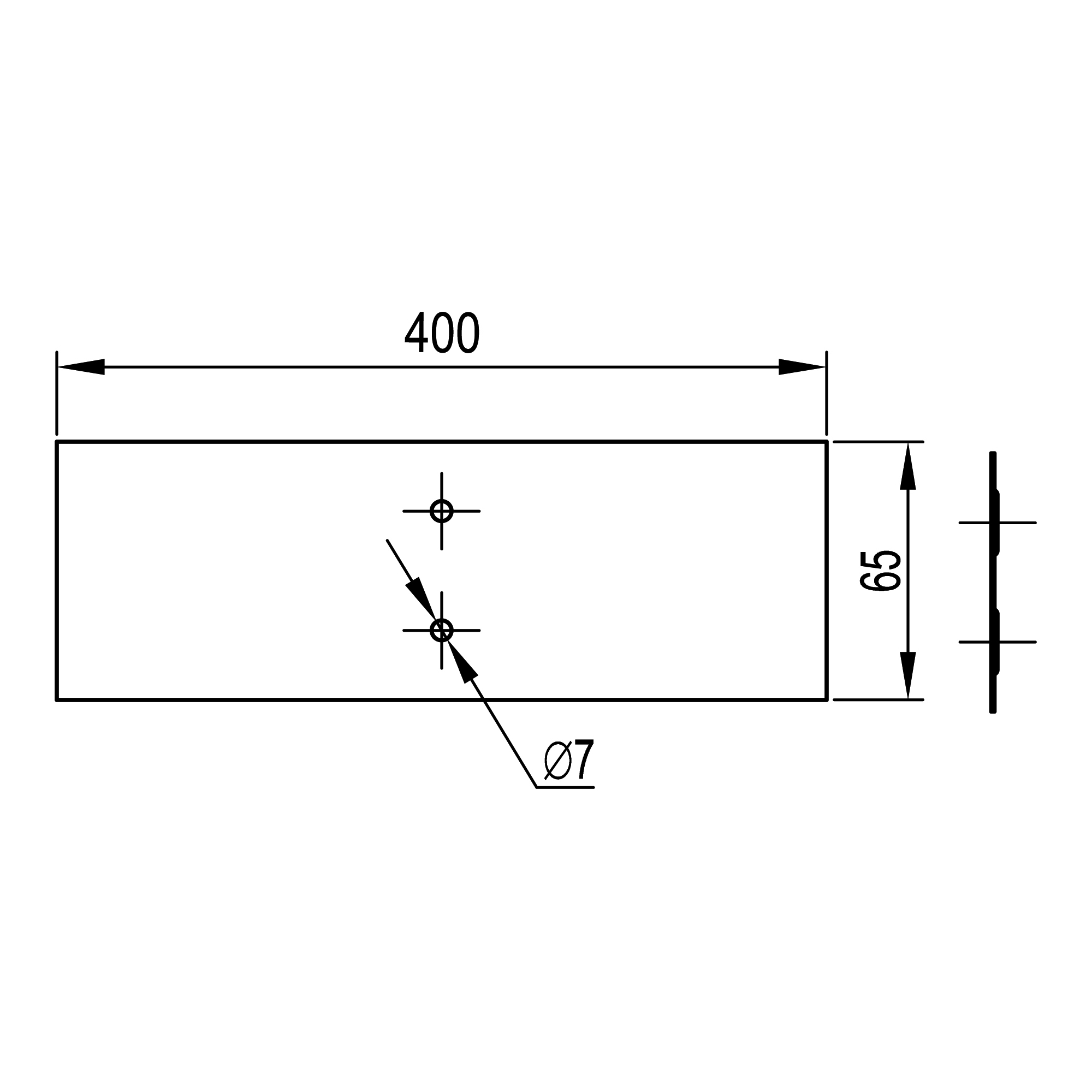

Drawings
| Seria | Name | AVEVA | DWG (dynamic.) | Autodesk Revit | Intergraph | SAT | STEP |
|---|---|---|---|---|---|---|---|
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
Certificates
| Name | Document |
|---|---|
