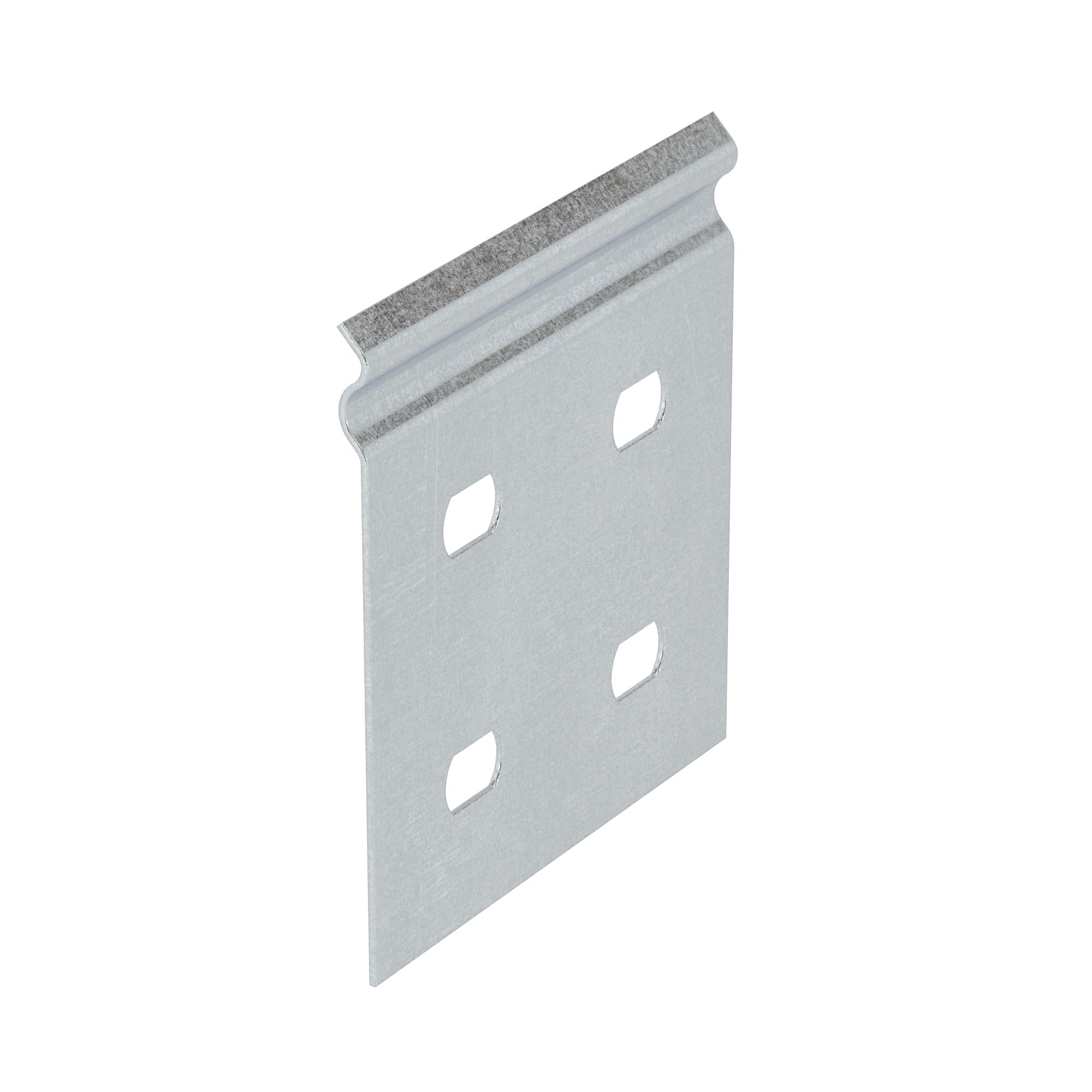

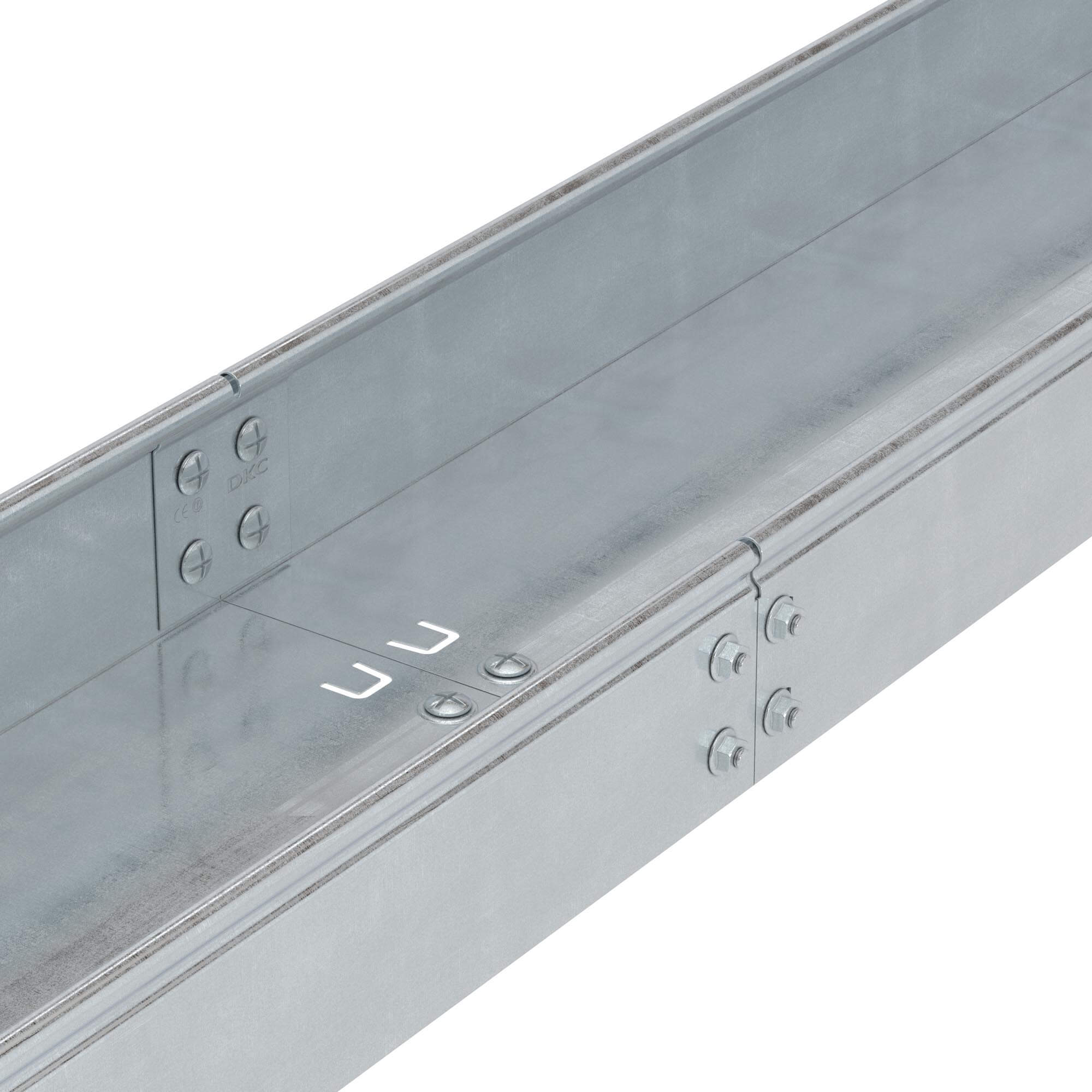

Joint Plate h. 80 INOX
Code: 37303INOX
Joint Plate h. 80 INOX
Code: 37303INOX
Surface protection | Bare |
Material quality | Stainless steel |
Length, mm | 65 |
Material | Steel |
Suitable for wire mesh tray | Yes |
Suitable for cable ladder | Yes |
Suitable for cable tray | Yes |
Stainless steel, pickled | Yes |
Suitable for cable management system height, mm | 80 |
Hinged joint horizontal | Yes |
Hinged joint vertical | Yes |
Suitable for circuit integrity | Yes |
Suitable for cable management system width, mm | 50...600 |
Colour | Light grey |
Model | Joint clip bar |
Type of connection | Screw connector |
Product type | Mounting accessories |
Type of accessories | Mounting accessories |
Height | 80 mm |
Material | Stainless steel AISI 304 |

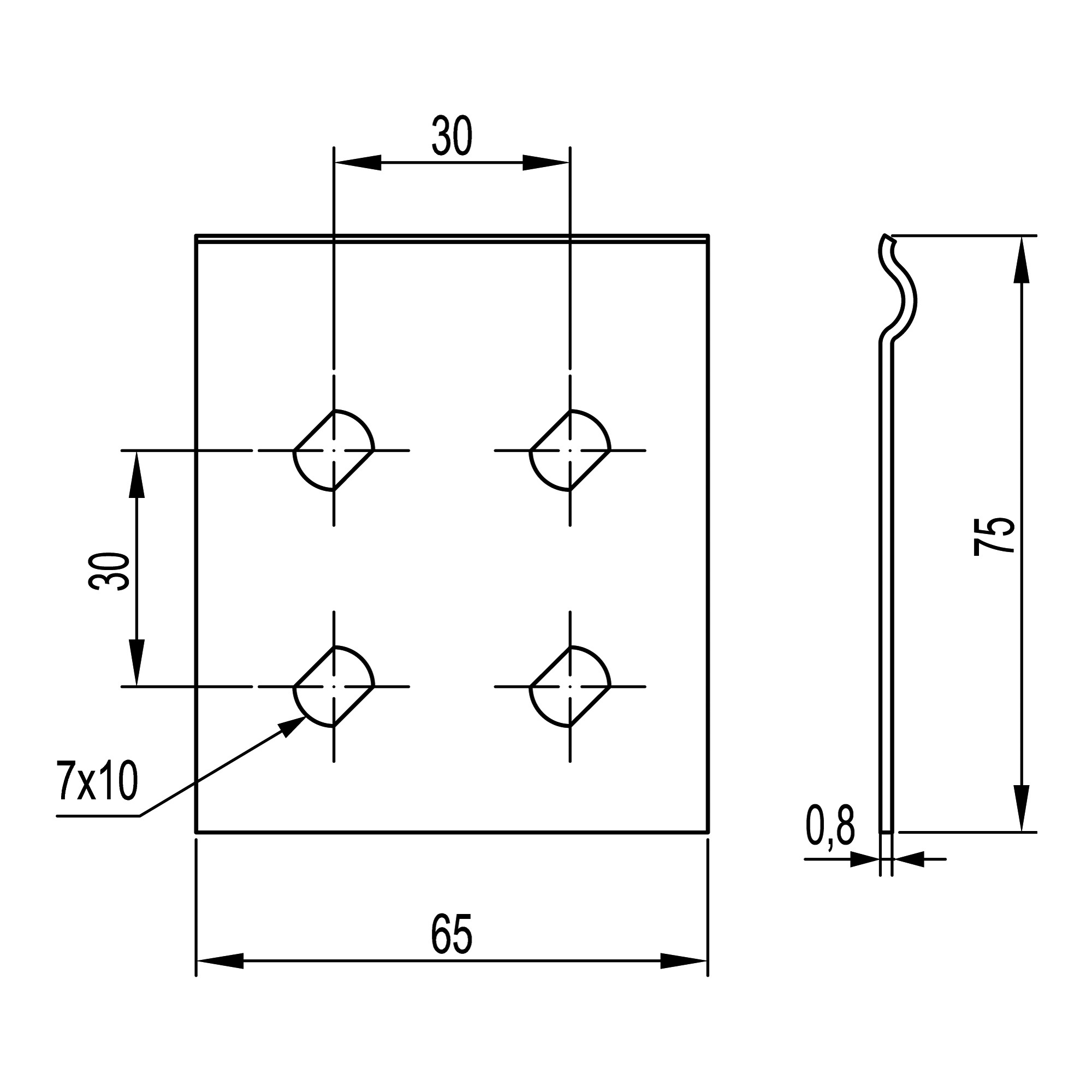

Drawings
Seria | Name | AVEVA | DWG (dynamic.) | Autodesk Revit | Intergraph | SAT | STEP |
---|---|---|---|---|---|---|---|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
Certificates
Name | Document |
---|---|
