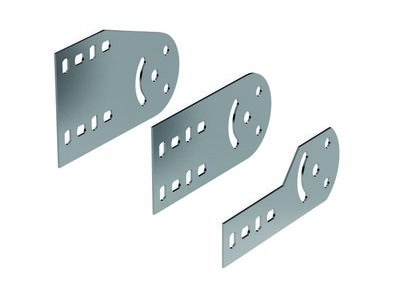

Articulated Vertical Joint h. 100

Code: 30015INOX

Articulated Vertical Joint h. 100

Code: 30015INOX
Model Horizontal/vertical
Surface protection Bare
Material quality Stainless steel
Material Stainless steel
Type of fastening Screw mounting
Plate width, mm 80
Plate height, mm 100
Stainless steel, pickled Yes

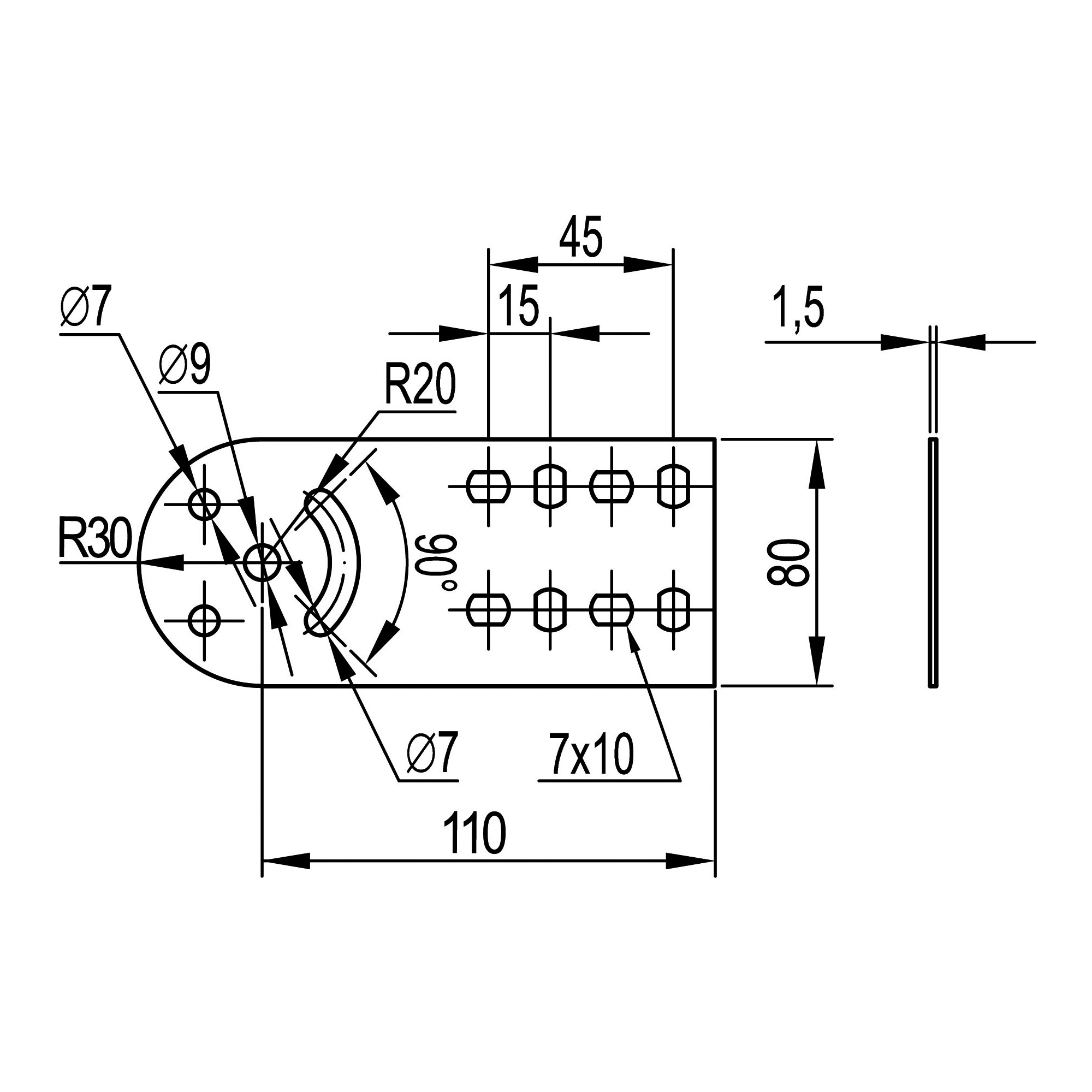

Drawings
Seria Name AVEVA DWG (dynamic.) Autodesk Revit Intergraph SAT STEP
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
Certificates
Name Document
