Cover Falling Elbow with plane inversion b.500 h.80 INOX
Code: 38346INOX
Cover Falling Elbow with plane inversion b.500 h.80 INOX
Code: 38346INOX
| Colour | Light grey |
| Width, mm | 500 |
| Deflection (angle) | 90° |
| Hinging | Yes |
| Material quality | Stainless steel |
| Length, mm | 210 |
| Material | Steel |
| Type of fastening | Snapped on |
| Suitable for wire mesh tray | Yes |
| Suitable for cable ladder | Yes |
| Suitable for cable tray | Yes |
| Stainless steel, pickled | Yes |
| Suitable for circuit integrity | Yes |
| Surface protection | Bare |
| Change of direction | Vertically descending |
| Product type | Covers for system accessories |
| Type of accessories | Cover for CDV 90 external vertical angle |
| Material | Stainless steel AISI 304 |
| Width | 500 mm |

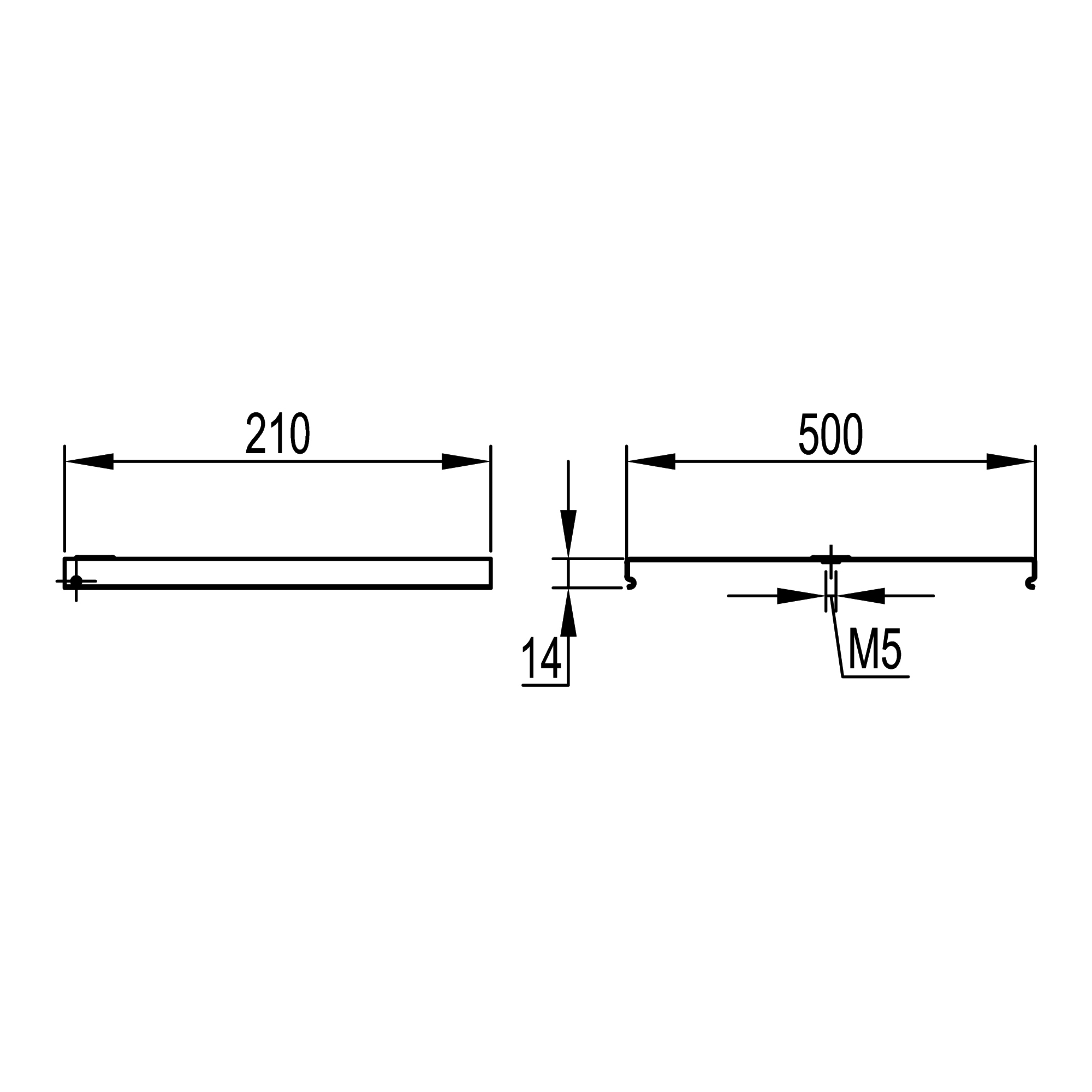

Drawings
| Seria | Name | AVEVA | DWG (dynamic.) | Autodesk Revit | Intergraph | SAT | STEP |
|---|---|---|---|---|---|---|---|
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
Certificates
| Name | Document |
|---|---|
