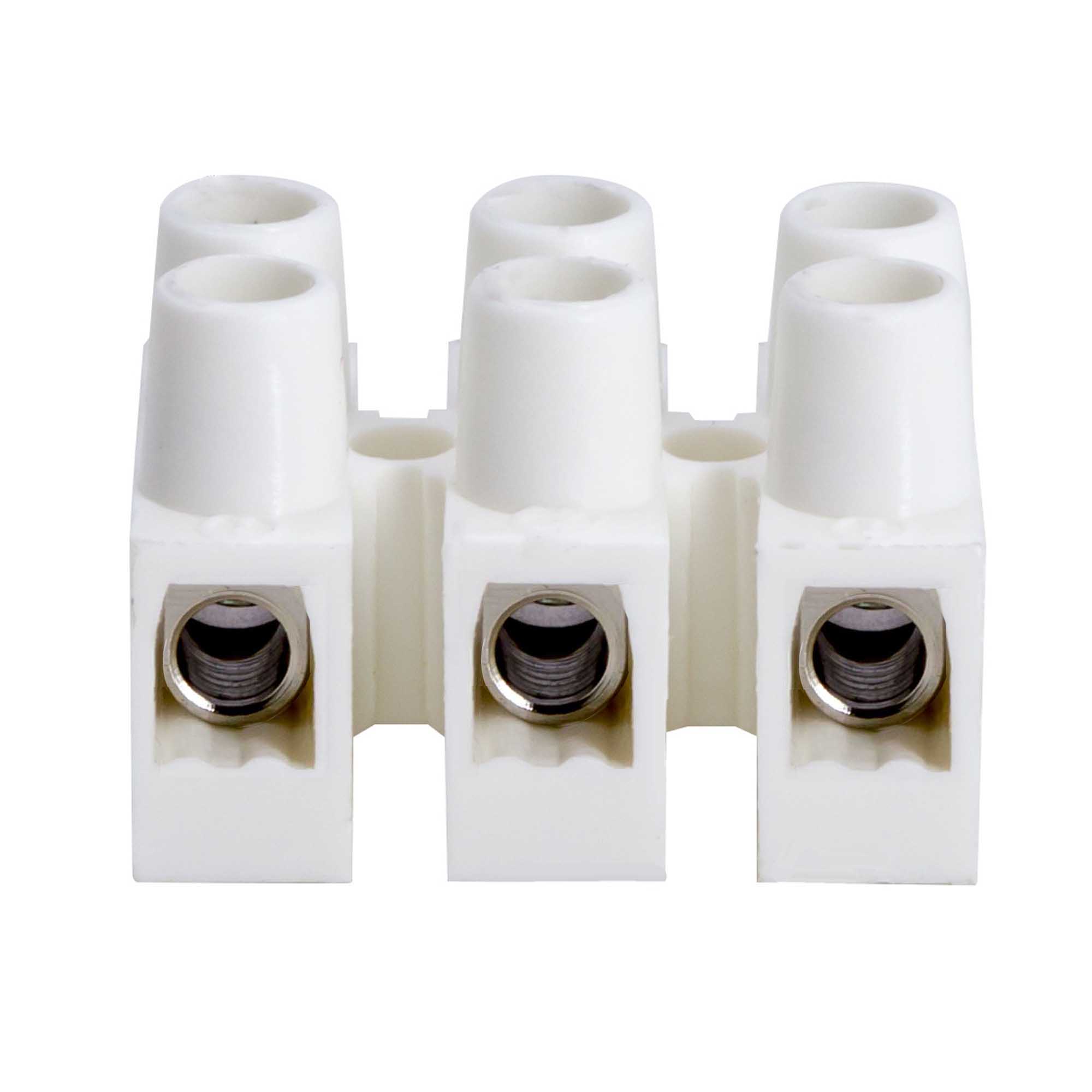

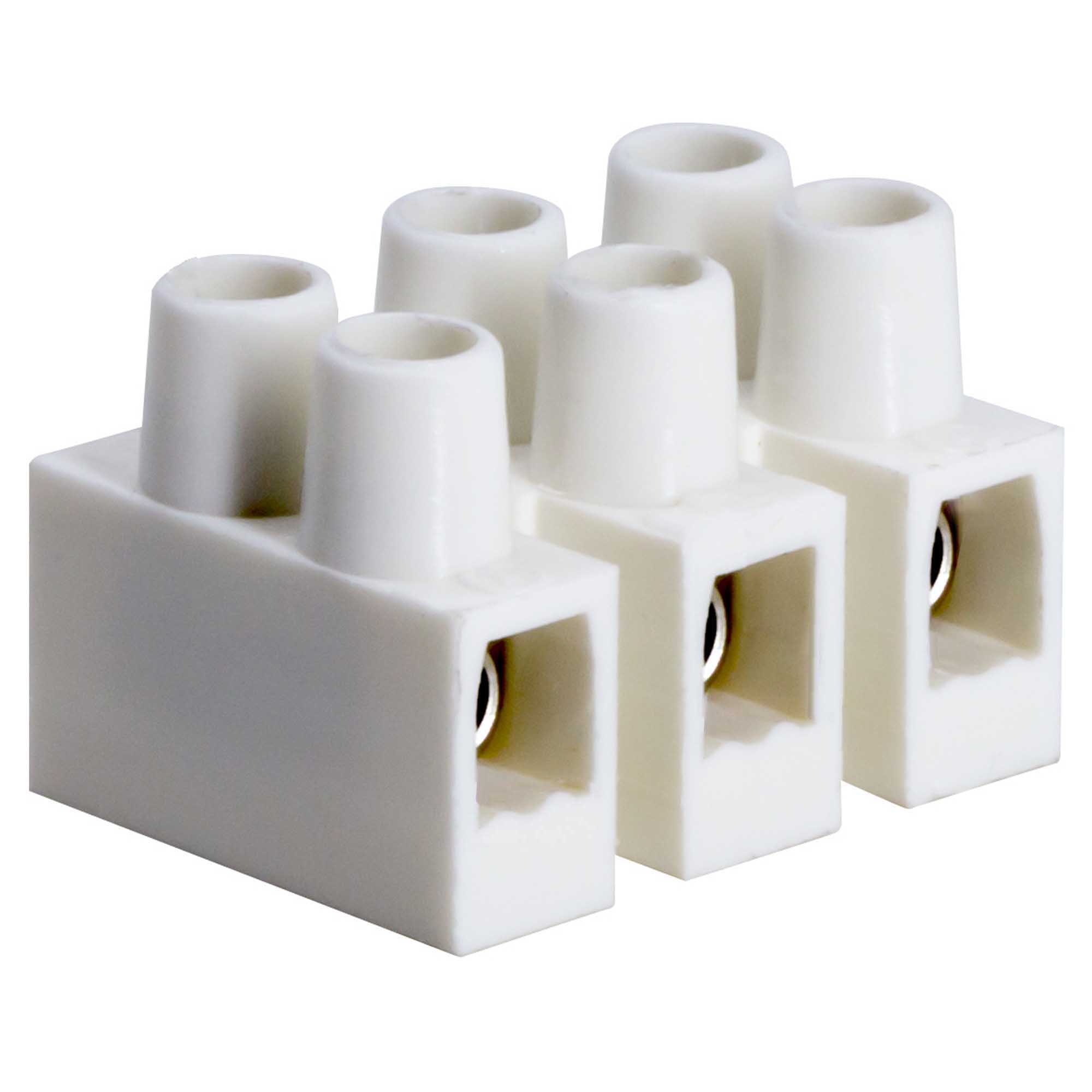

Terminal blocks polypropylene white, 3р,85°С,450V,32A, 4mm²
Code: 43303PL/B
Terminal blocks polypropylene white, 3р,85°С,450V,32A, 4mm²
Code: 43303PL/B
| Mounting method | Direct mounting |
| Colour | White |
| Rated voltage, V | 450 |
| Number of poles | 3 |
| Length, mm | 30.6 |
| Operating temperature, °C | -40…85 |
| Number of clamp positions per pole | 2 |
| Width/grid dimension, mm | 10 |
| Closing plate required | No |
| Transparent | No |
| Connectable conductor cross section multi-wired, mm² | 6 |
| Rated current In, A | 41 |
| Explosion-tested version 'Ex e' | No |
| Inflammability class of insulation material according to with UL94 | Other |
| Type of electrical connection 1 | Screw connection |
| Type of electrical connection 2 | Screw connection |
| Material insulation body | Polypropylene (PP) |
| Connection position | Sideways |
| Product type | Screw terminal blocks |
