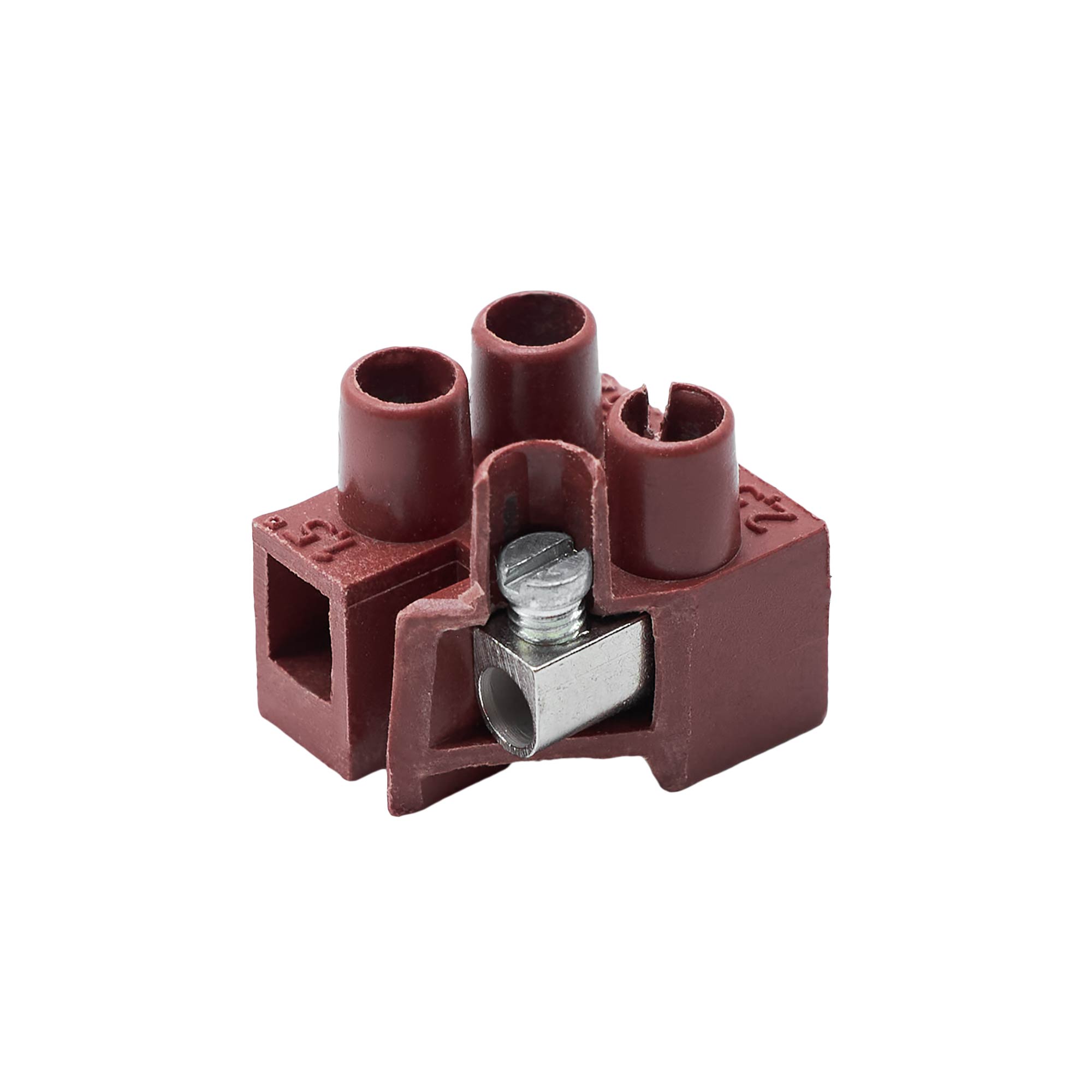

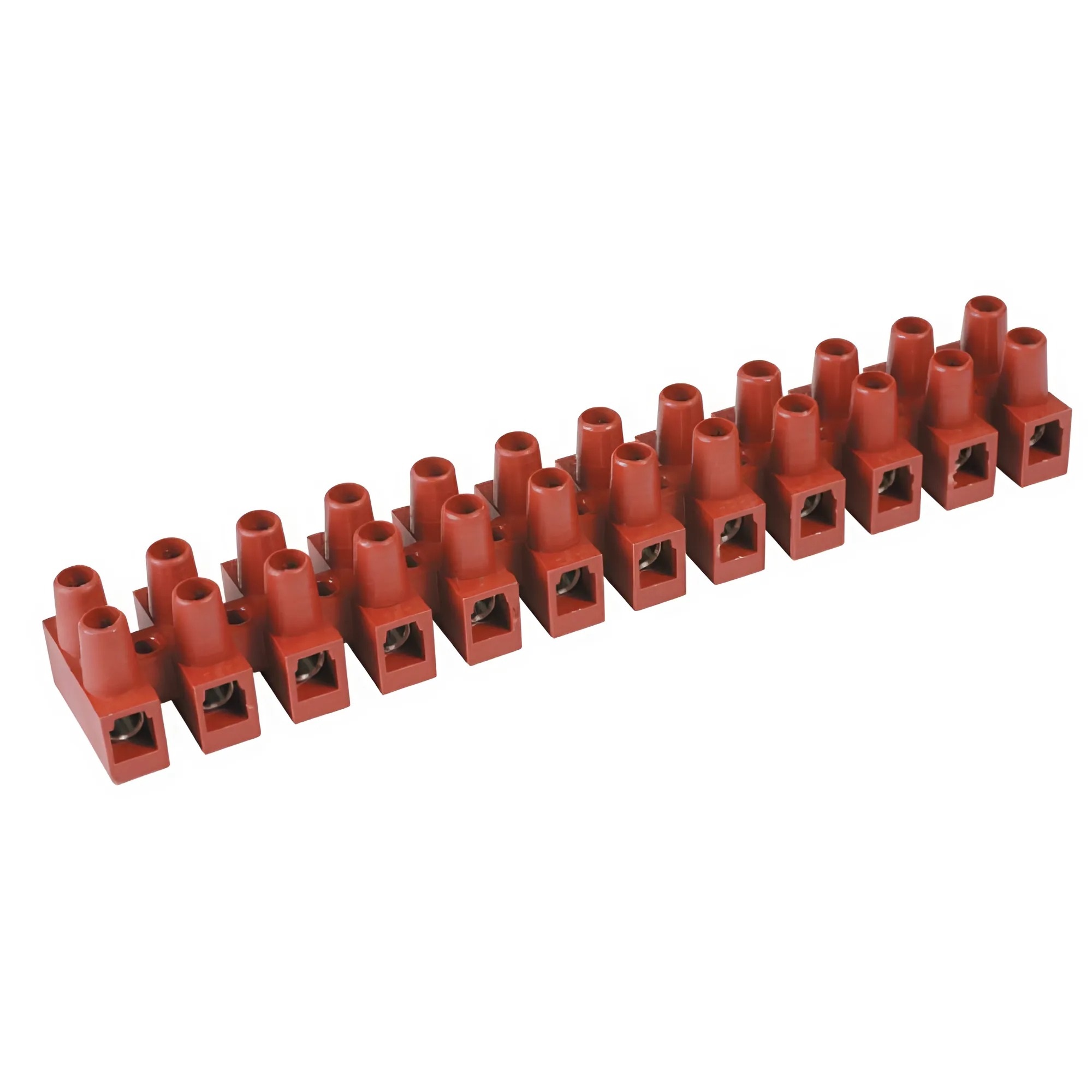

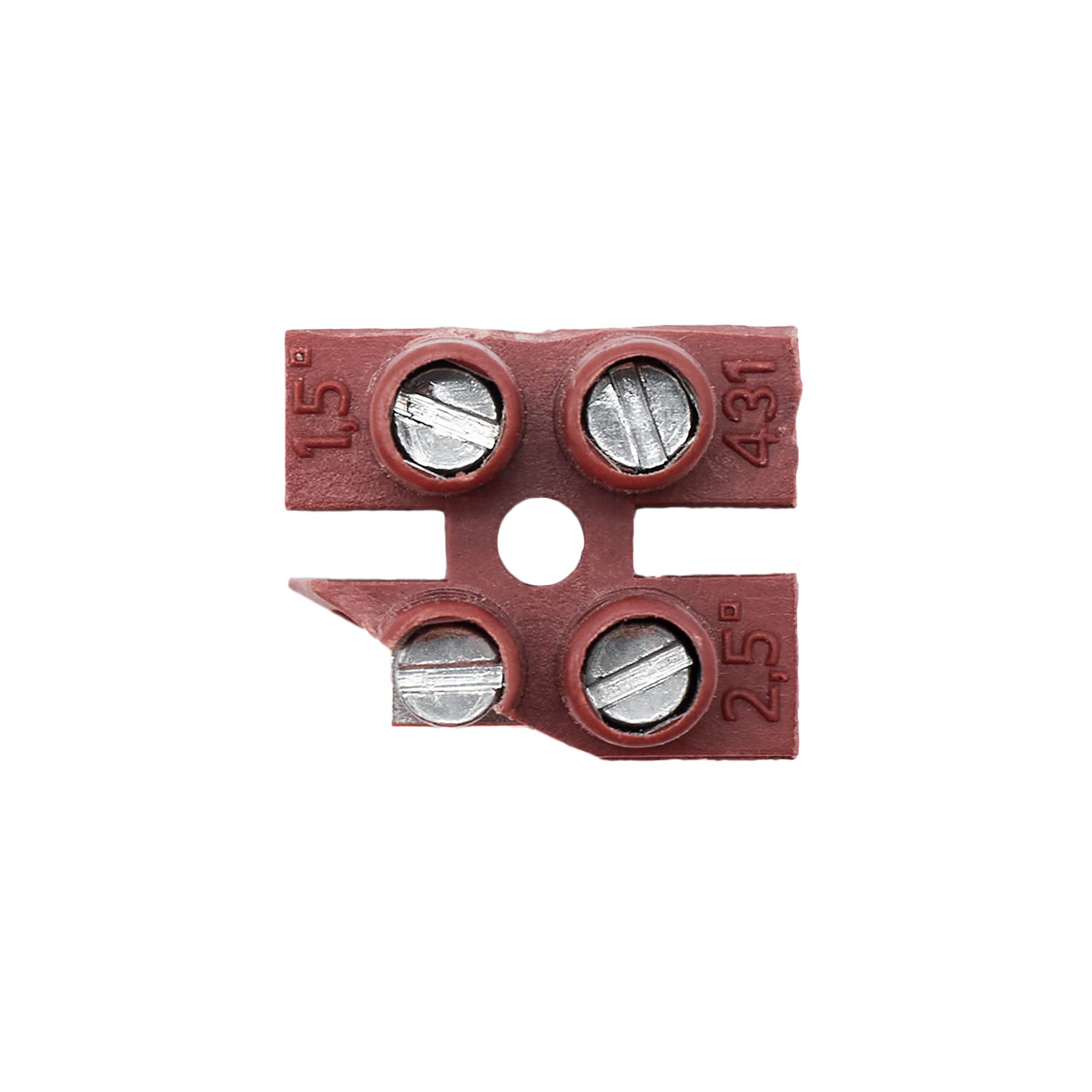

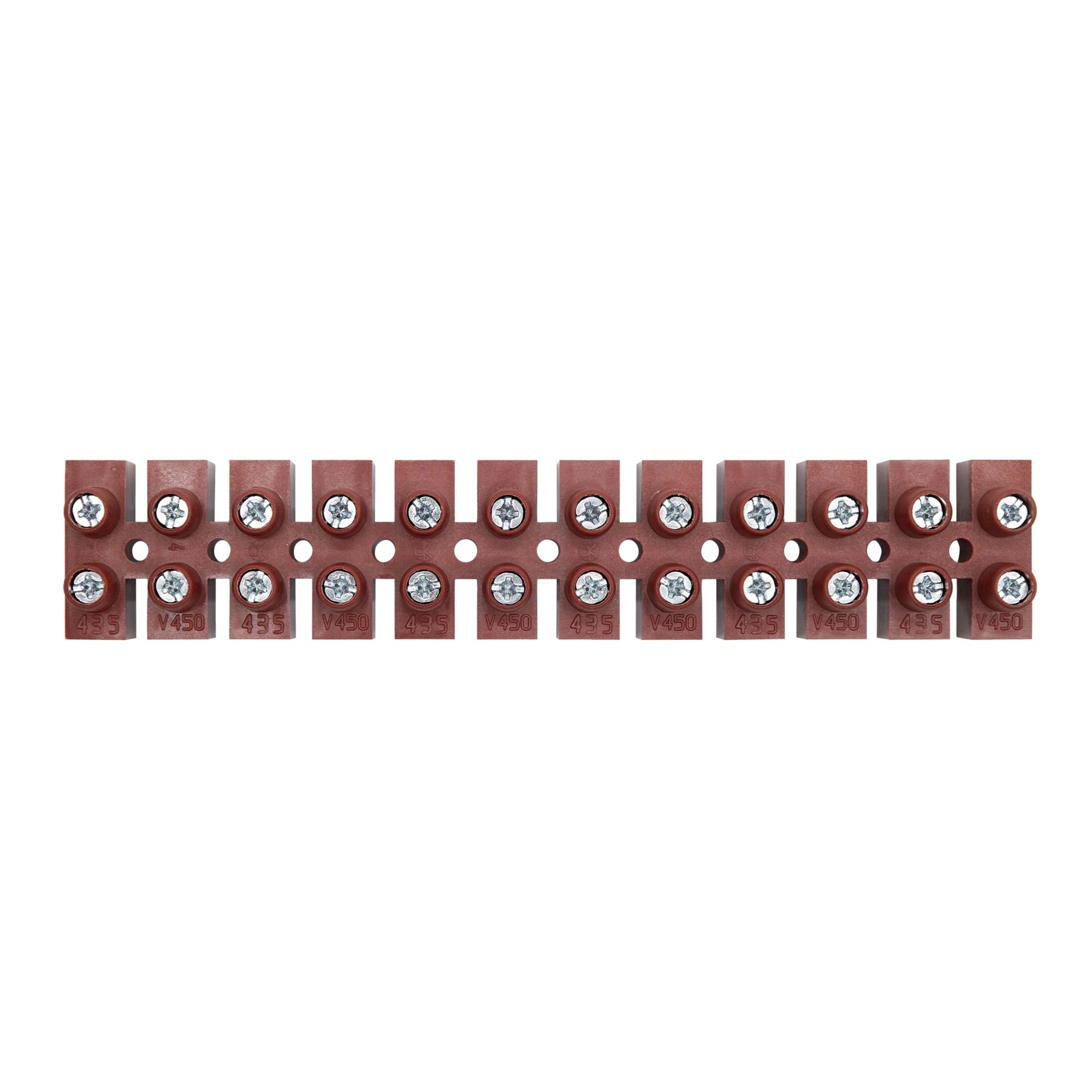

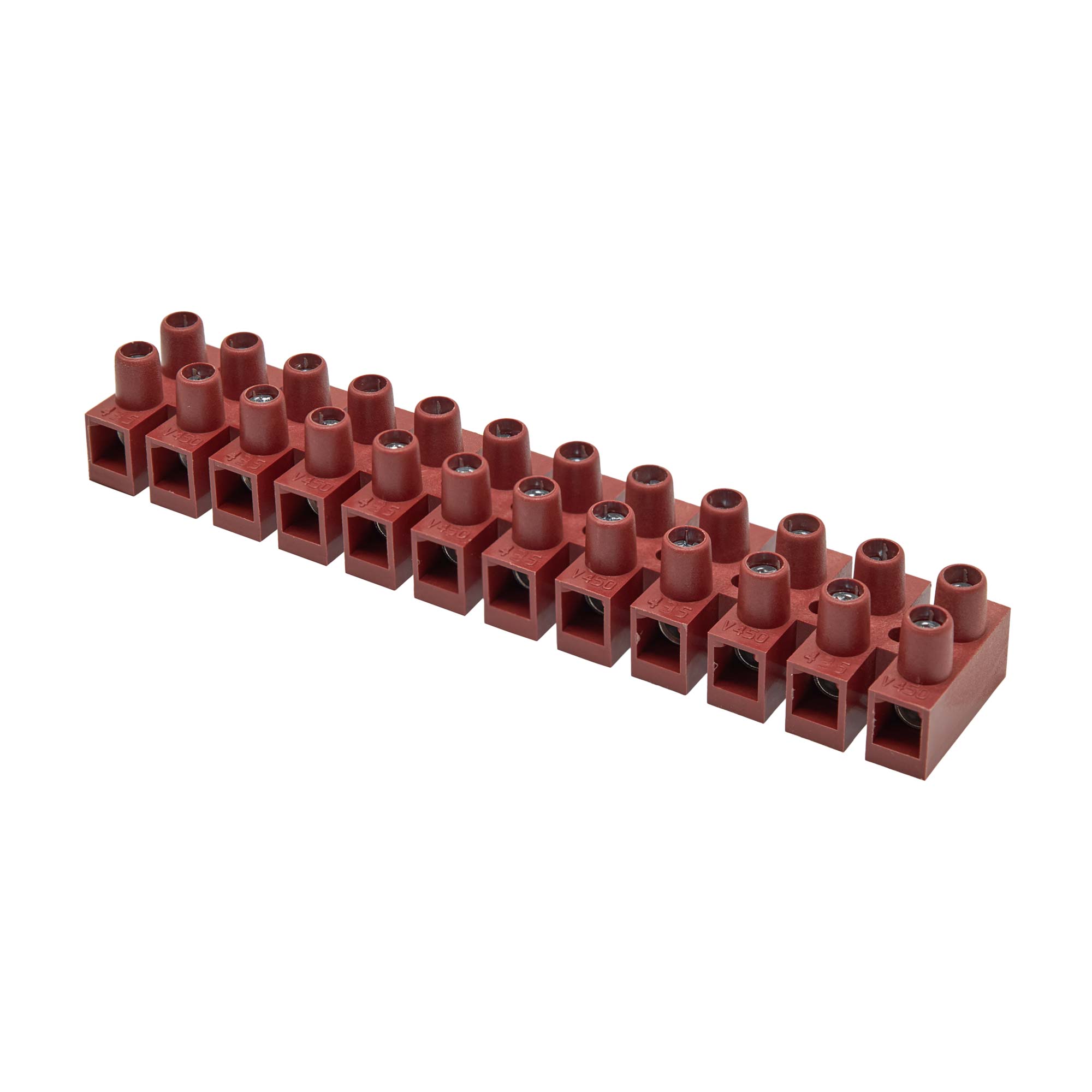

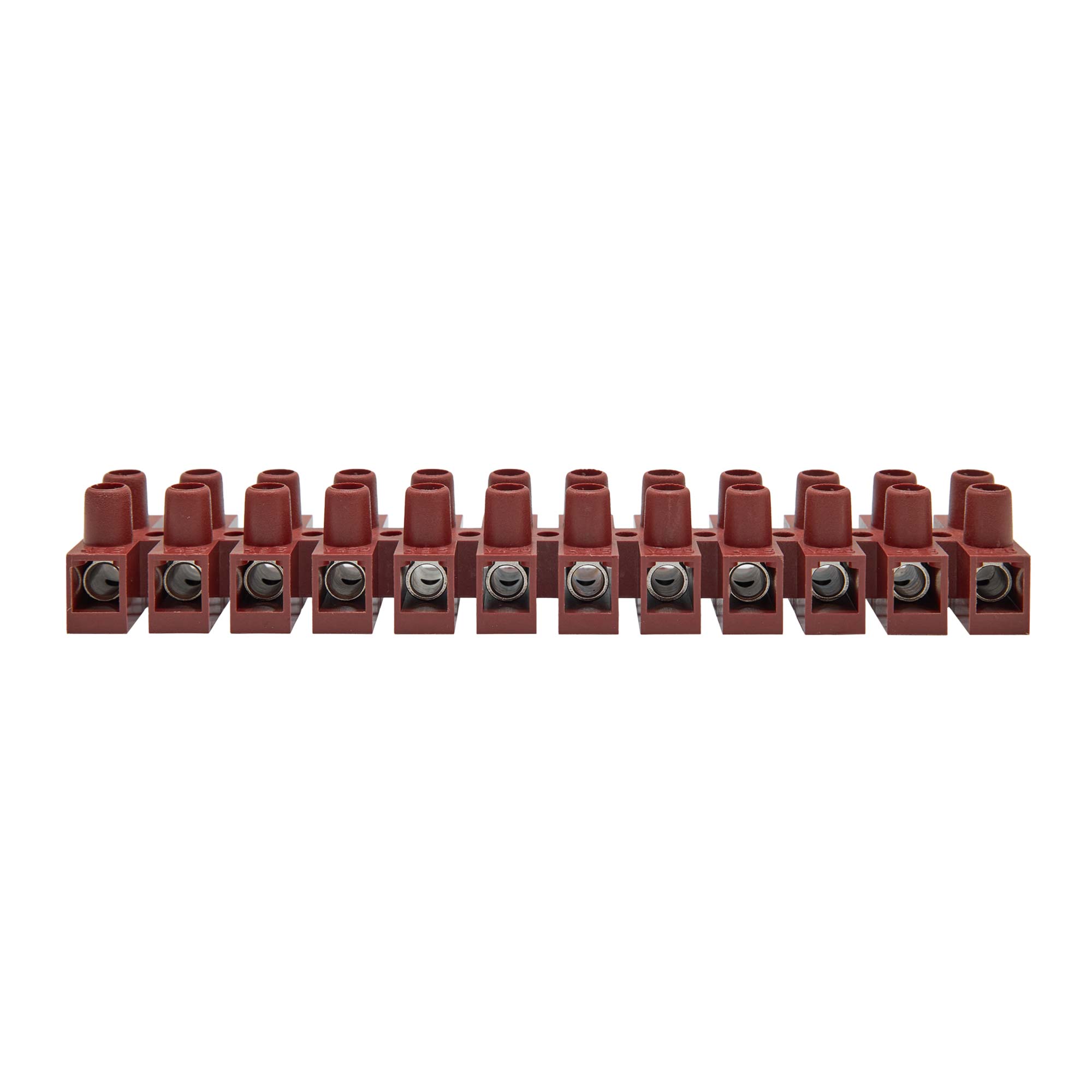

Terminal blocks fiberglass, 12р,150°С,450V, 76A, 16mm²
Code: 43512FV
Terminal blocks fiberglass, 12р,150°С,450V, 76A, 16mm²
Code: 43512FV
| Mounting method | Direct mounting |
| Colour | Red |
| Rated voltage, V | 450 |
| Number of poles | 12 |
| Length, mm | 173.5 |
| Operating temperature, °C | -40...150 |
| Number of clamp positions per pole | 2 |
| Width/grid dimension, mm | 32.2 |
| Closing plate required | No |
| Transparent | No |
| Connectable conductor cross section multi-wired, mm² | 16 |
| Rated current In, A | 76 |
| Explosion-tested version 'Ex e' | No |
| Inflammability class of insulation material according to with UL94 | Other |
| Type of electrical connection 1 | Screw connection |
| Type of electrical connection 2 | Screw connection |
| Material insulation body | Fiberglass |
| Connection position | Sideways |
| Product type | Screw terminal blocks |
