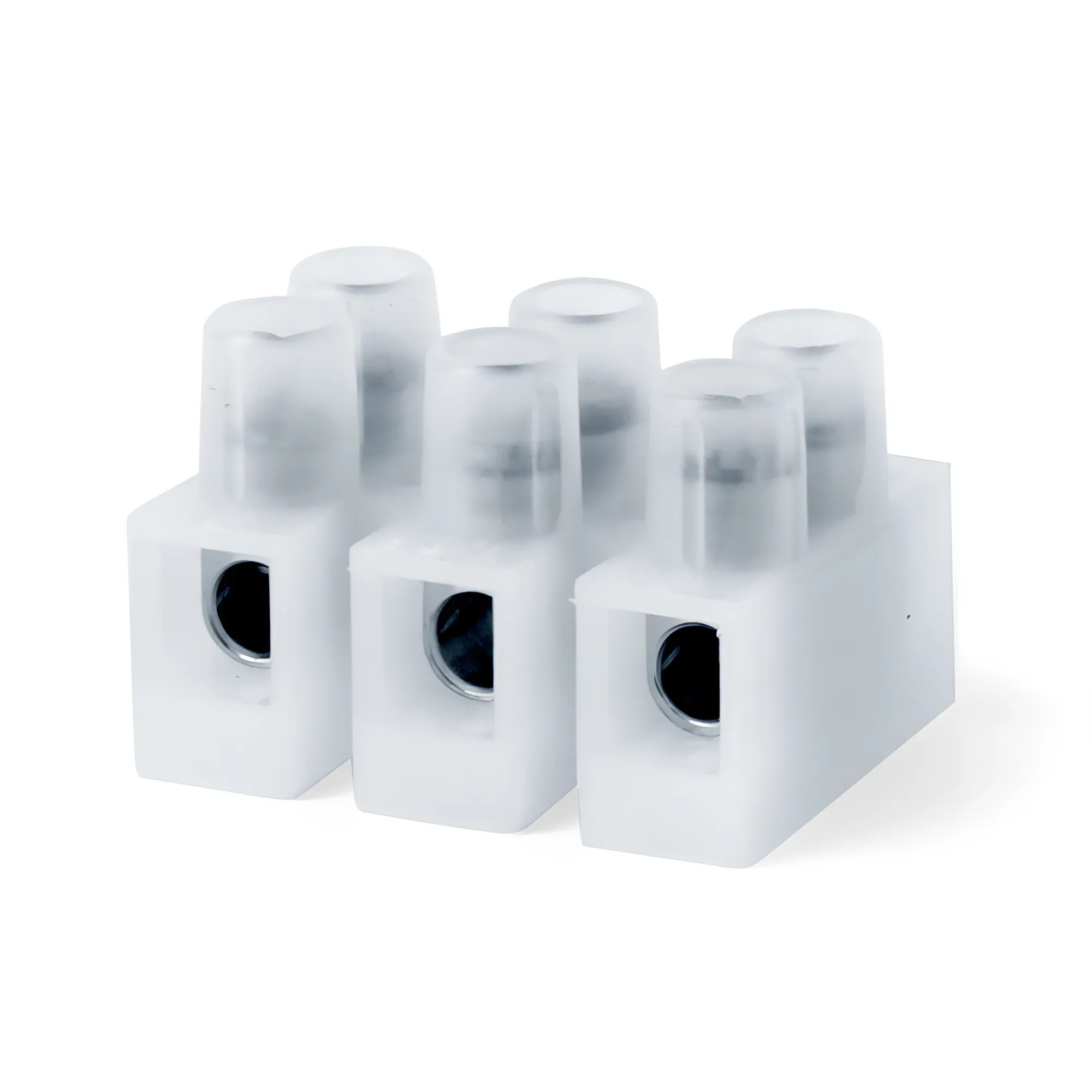

Terminal blocks polyamide 6.6, 3p,110°С,450V, 32A, 4mm²
Code: 43303NY
Terminal blocks polyamide 6.6, 3p,110°С,450V, 32A, 4mm²
Code: 43303NY
| Mounting method | Direct mounting |
| Colour | White |
| Rated voltage, V | 450 |
| Number of poles | 3 |
| Length, mm | 23.65 |
| Operating temperature, °C | -40...110 |
| Number of clamp positions per pole | 2 |
| Width/grid dimension, mm | 20.2 |
| Closing plate required | No |
| Transparent | No |
| Connectable conductor cross section multi-wired, mm² | 4 |
| Rated current In, A | 32 |
| Explosion-tested version 'Ex e' | No |
| Inflammability class of insulation material according to with UL94 | Other |
| Type of electrical connection 1 | Screw connection |
| Type of electrical connection 2 | Screw connection |
| Material insulation body | Polyamide (PA) |
| Connection position | Sideways |
| Frame frequency | 110 |
| With discharging function | 2 |
| Cross section of the connecting conductors | 20.2 |
| Number of auxiliary contacts as change-over contact | No |
| Spring loaded tweezers/gripper | No |
| EMC strain relief | Other |
| Suitable for outdoor use | Screw connection |
| Metal-free | Screw connection |
| Product type | Screw terminal blocks |
Drawings
| Seria | Name | Eplan |
|---|---|---|
|
Terminal blocks - "Quadro"
|
