| Mounting method | Direct mounting |
| Colour | White |
| Rated voltage, V | 450 |
| Number of poles | 2 |
| Length, mm | 16 |
| Operating temperature, °C | -40...110 |
| Number of clamp positions per pole | 2 |
| Width/grid dimension, mm | 10 |
| Closing plate required | No |
| Transparent | No |
| Rated current In, A | 32 |
| Explosion-tested version 'Ex e' | No |
| Inflammability class of insulation material according to with UL94 | Other |
| Type of electrical connection 1 | Screw connection |
| Type of electrical connection 2 | Screw connection |
| Material insulation body | Polyamide (PA) |
| Connection position | Sideways |

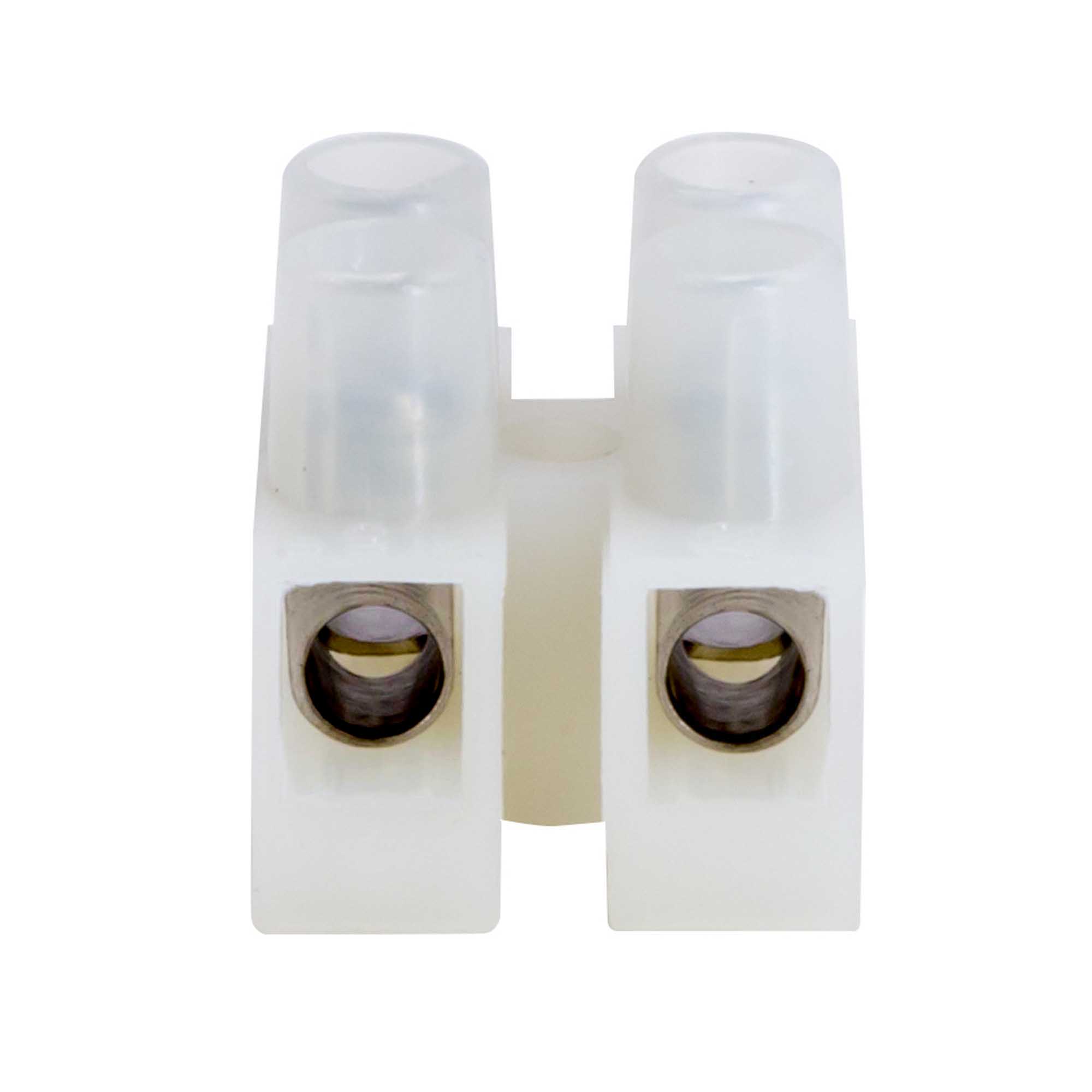

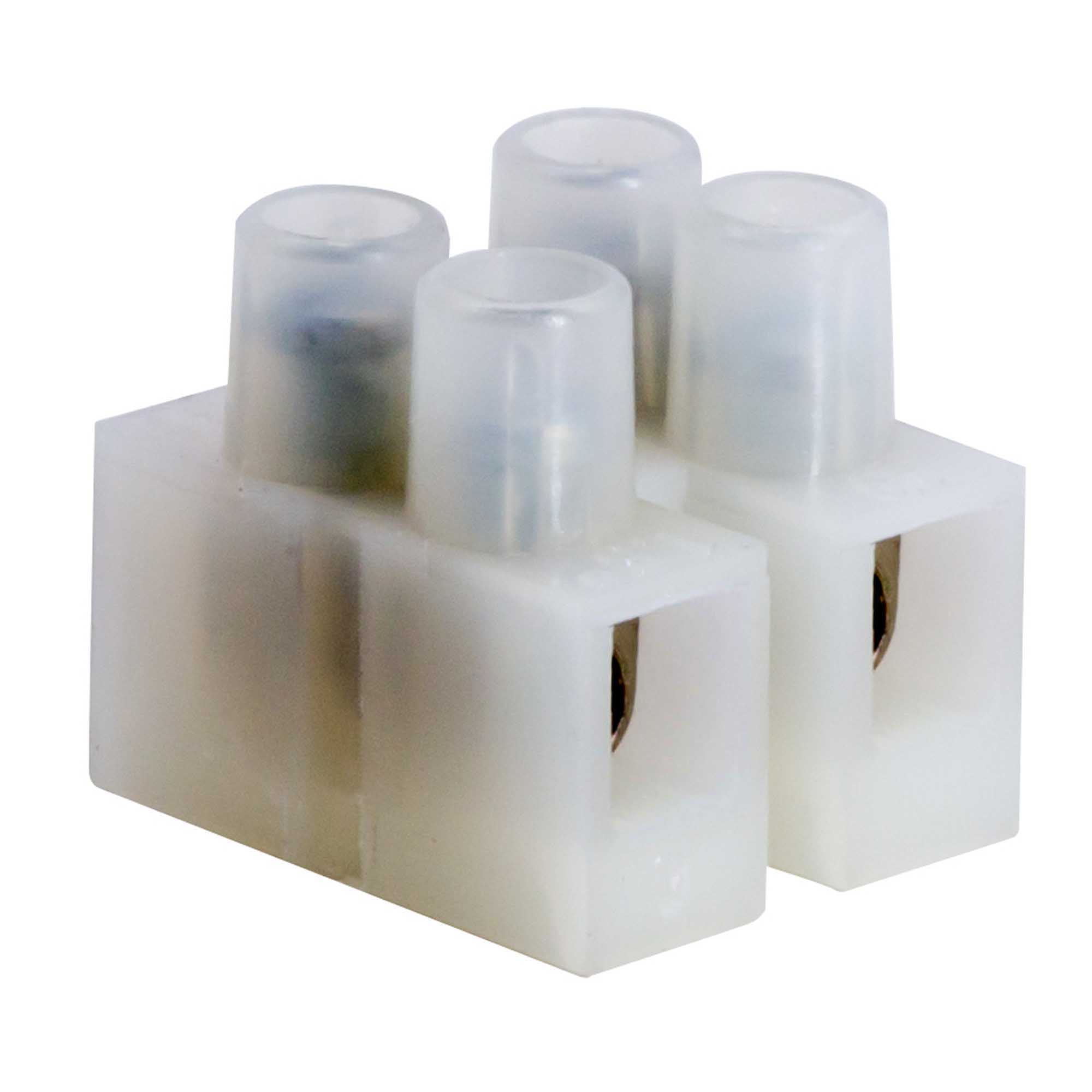

| Product type | Screw terminal blocks |
| Wire cross section | 4 mm2 |
