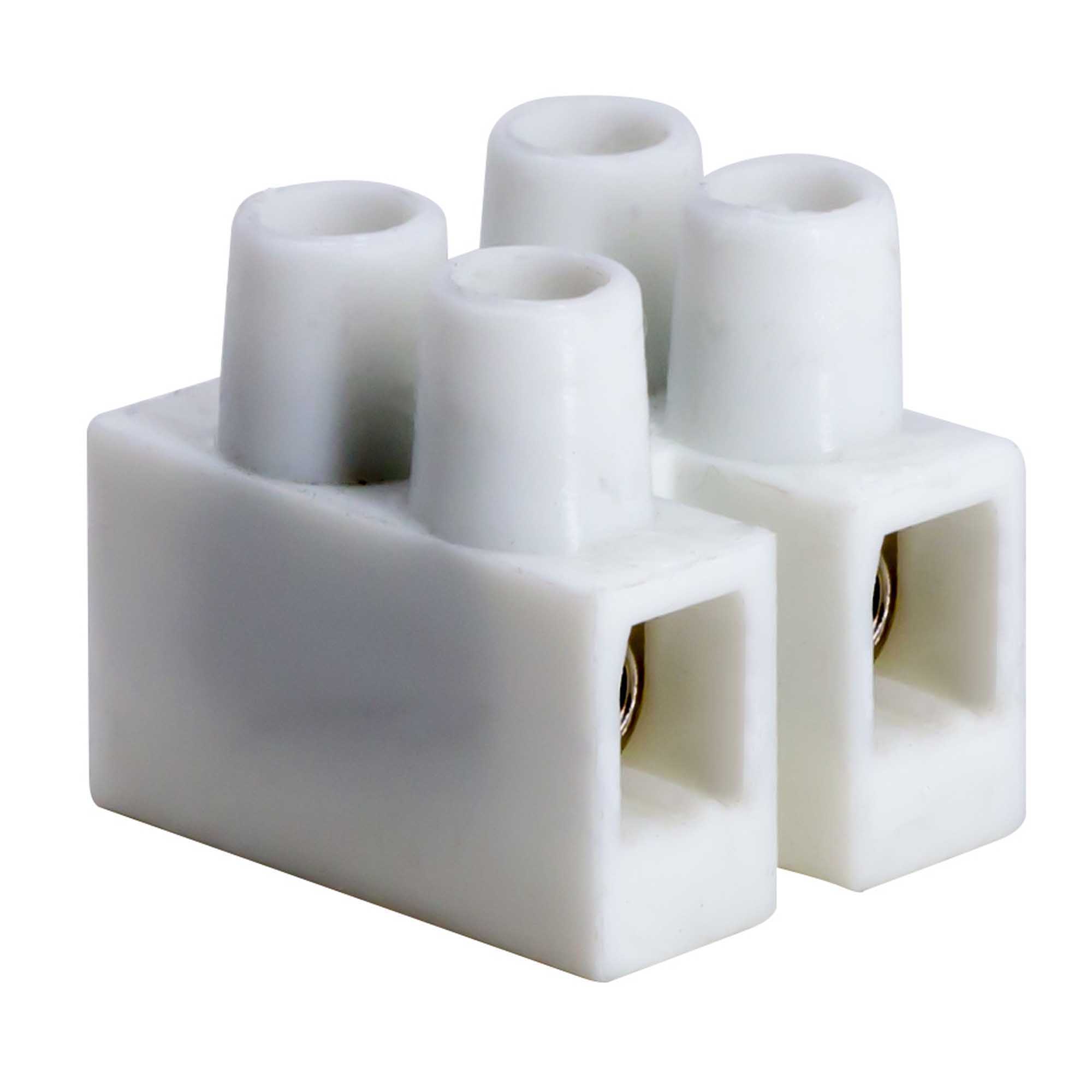

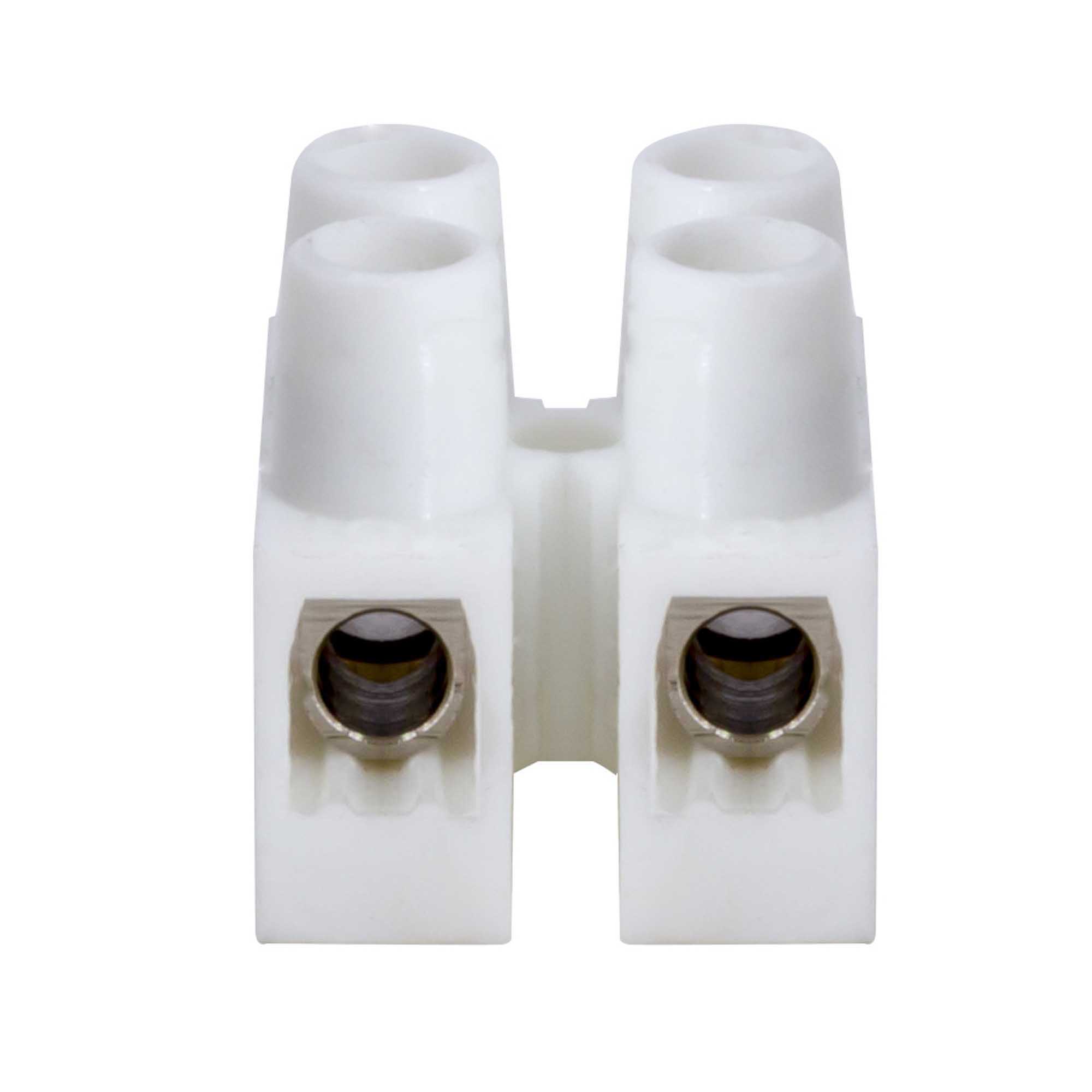

Terminal blocks polypropylene white, 2р,85°С,450V,24A, 2,5mm²
Code: 43102PL/B
Terminal blocks polypropylene white, 2р,85°С,450V,24A, 2,5mm²
Code: 43102PL/B
| Mounting method | Direct mounting |
| Colour | White |
| Rated voltage, V | 450 |
| Number of poles | 2 |
| Length, mm | 20.4 |
| Operating temperature, °C | -40…85 |
| Number of clamp positions per pole | 2 |
| Width/grid dimension, mm | 8 |
| Closing plate required | No |
| Transparent | No |
| Connectable conductor cross section multi-wired, mm² | 2.5 |
| Rated current In, A | 24 |
| Explosion-tested version 'Ex e' | No |
| Inflammability class of insulation material according to with UL94 | Other |
| Type of electrical connection 1 | Screw connection |
| Type of electrical connection 2 | Screw connection |
| Material insulation body | Polypropylene (PP) |
| Connection position | Sideways |
| Product type | Screw terminal blocks |
Drawings
| Seria | Name | Eplan |
|---|---|---|
|
Terminal blocks - "Quadro"
|
