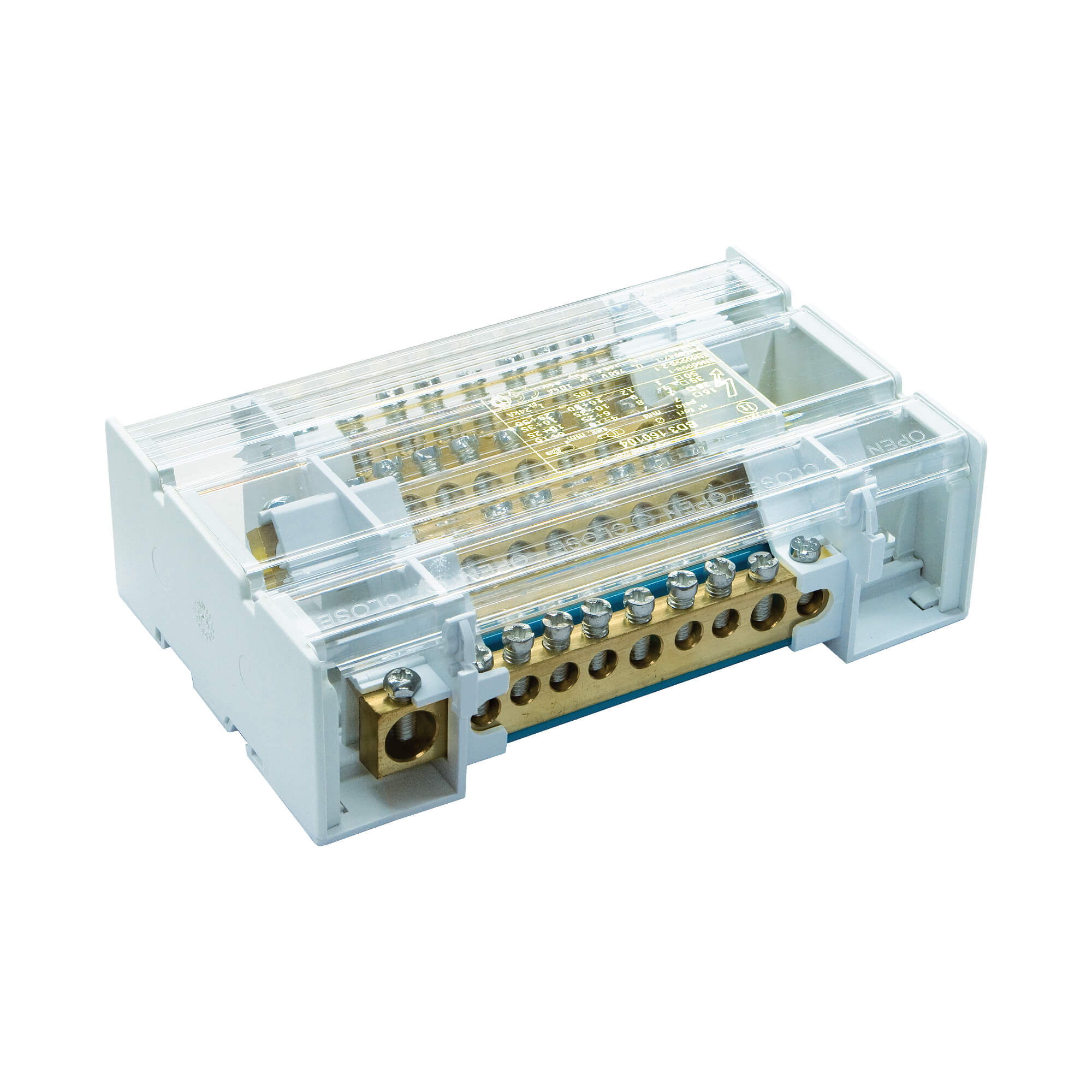

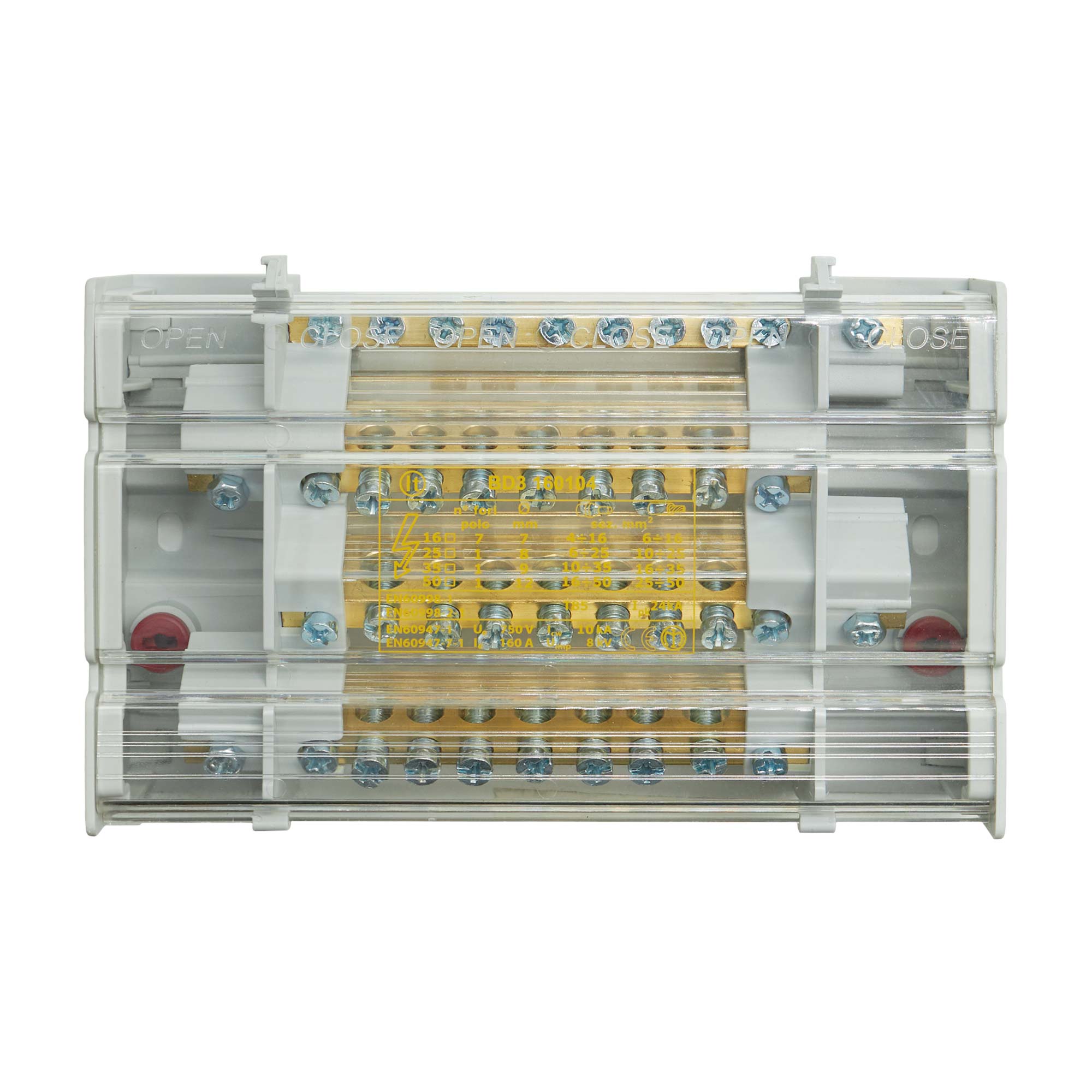

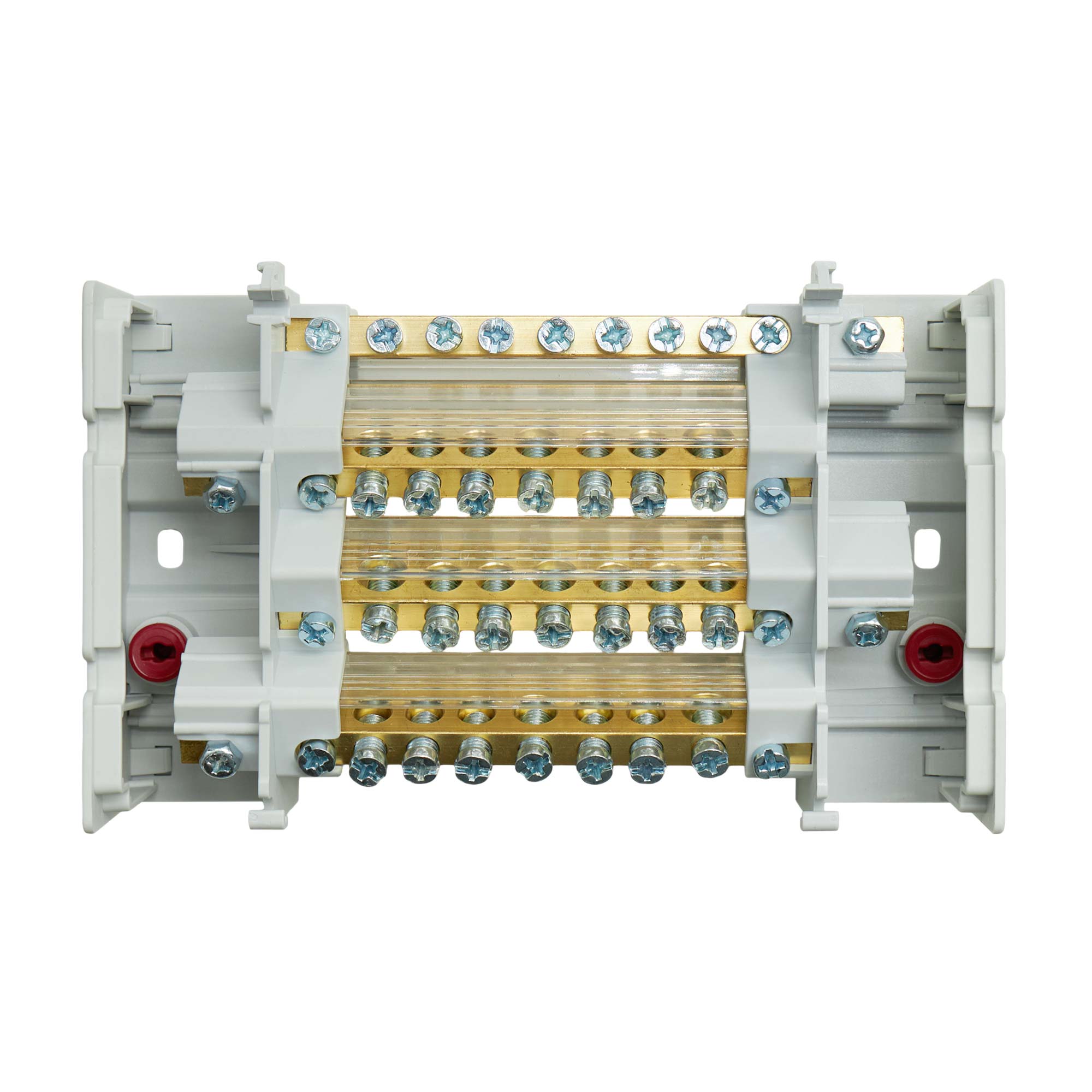

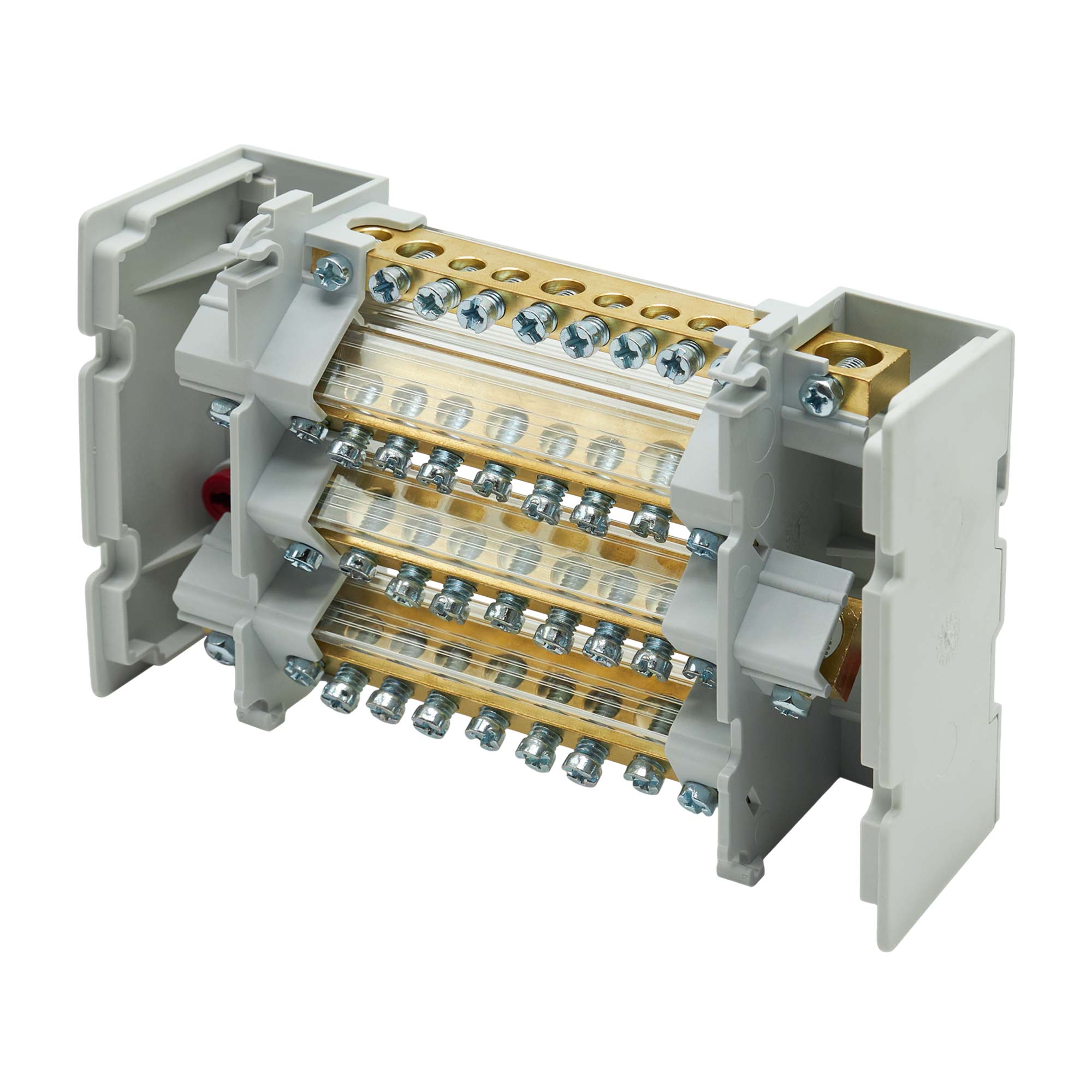

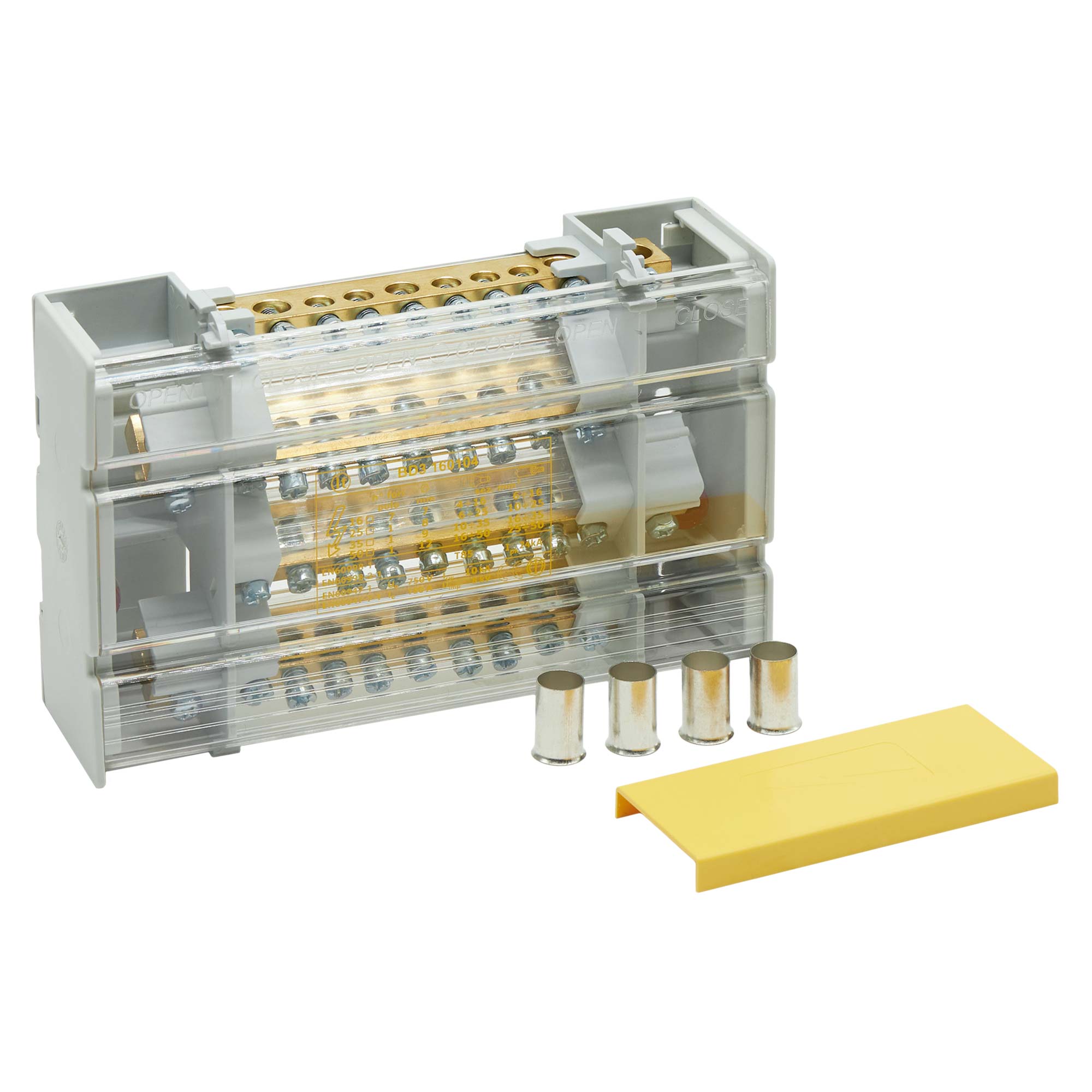

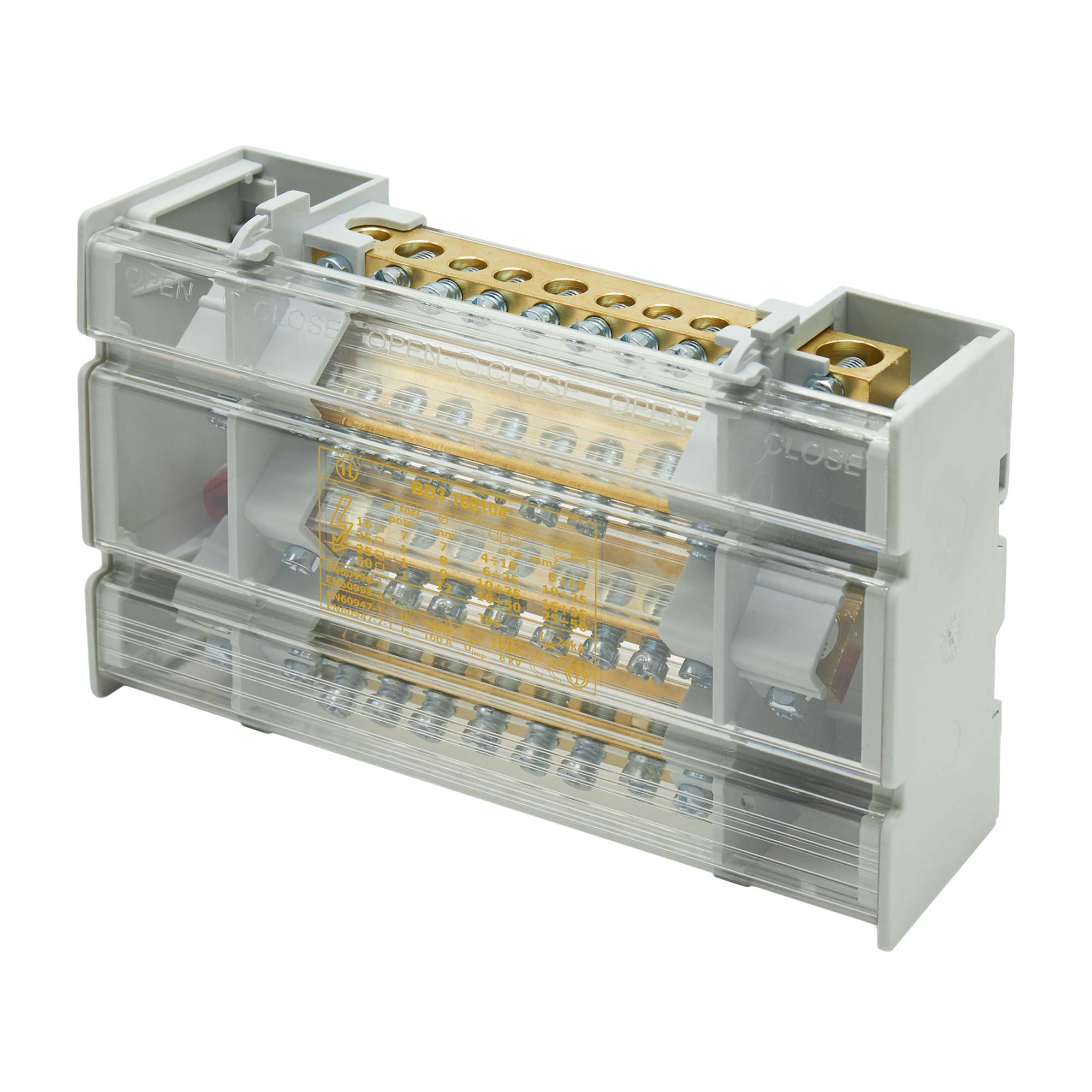

Protected terminal post with remote plug 4р 160A, 7х7mm 1х8мmm 1х9mm 1х12mm
Code:
BD3160104
Code:
BD3160104
| Width, mm | 168 |
| Height, mm | 107 |
| Depth, mm | 45 |
| Number of poles | 4 |
| Number of clamp positions per pole | 10 |
| Max. rated current, A | 160 |
| Number of modular spacings | 4 |
| Conductor cross section flexible (fine-strand) with cable end sleeve, mm² | 4...50 |
| Conductor cross section solid (solid, stranded), mm² | 6...50 |
| With N-rail | Yes |
| With PE-rail | No |
| Product type | Distribution terminal blocks |
| Honest SIGN system. Commodity group | Radio‑electronic products |
| Russian Classification of Products by Economic Activities (OKPD 2) | 27.33.13.120 |
| Commodity Nomenclature of Foreign Economic Activity | 8536901000 |
| Rated voltage | 750 VDC |
| Rated impulse withstand voltage | 8 kV |
| Rated short‑term withstand current | 10 kA |
| Peak withstand current | 24 kA |
| Qty of Ø7 holes | 7 |
| Wire cross-cestion for Ø7 holes | 6−16 mm2 |
| 2 wires cross-cestion for Ø7 holes | 4−6 mm2 |
| Qty of Ø8 holes | 1 |
| Wire cross-cestion for Ø8 holes | 10−25 mm2 |
| 2 wires cross-cestion for Ø8 holes | 4−6 mm2 |
| Qty of Ø9 holes | 1 |
| Wire cross-cestion for Ø9 holes | 16−35 mm2 |
| 2 wires cross-cestion for Ø9 holes | 6−10 mm2 |
| Qty of Ø12 holes | 1 |
| Wire cross-cestion for Ø12 holes | 25−50 mm2 |
| 2 wires cross-cestion for Ø12 holes | 16 mm2 |
