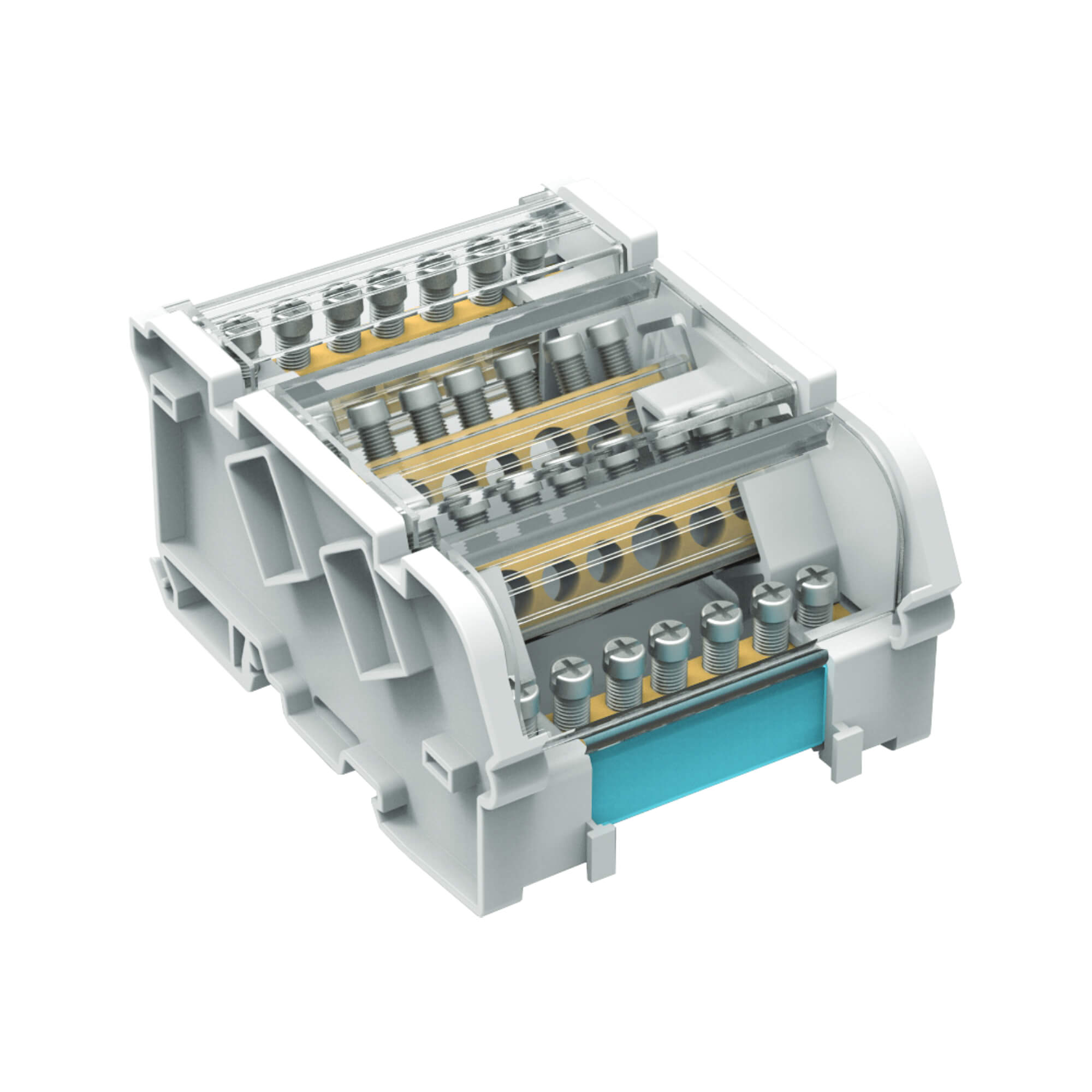

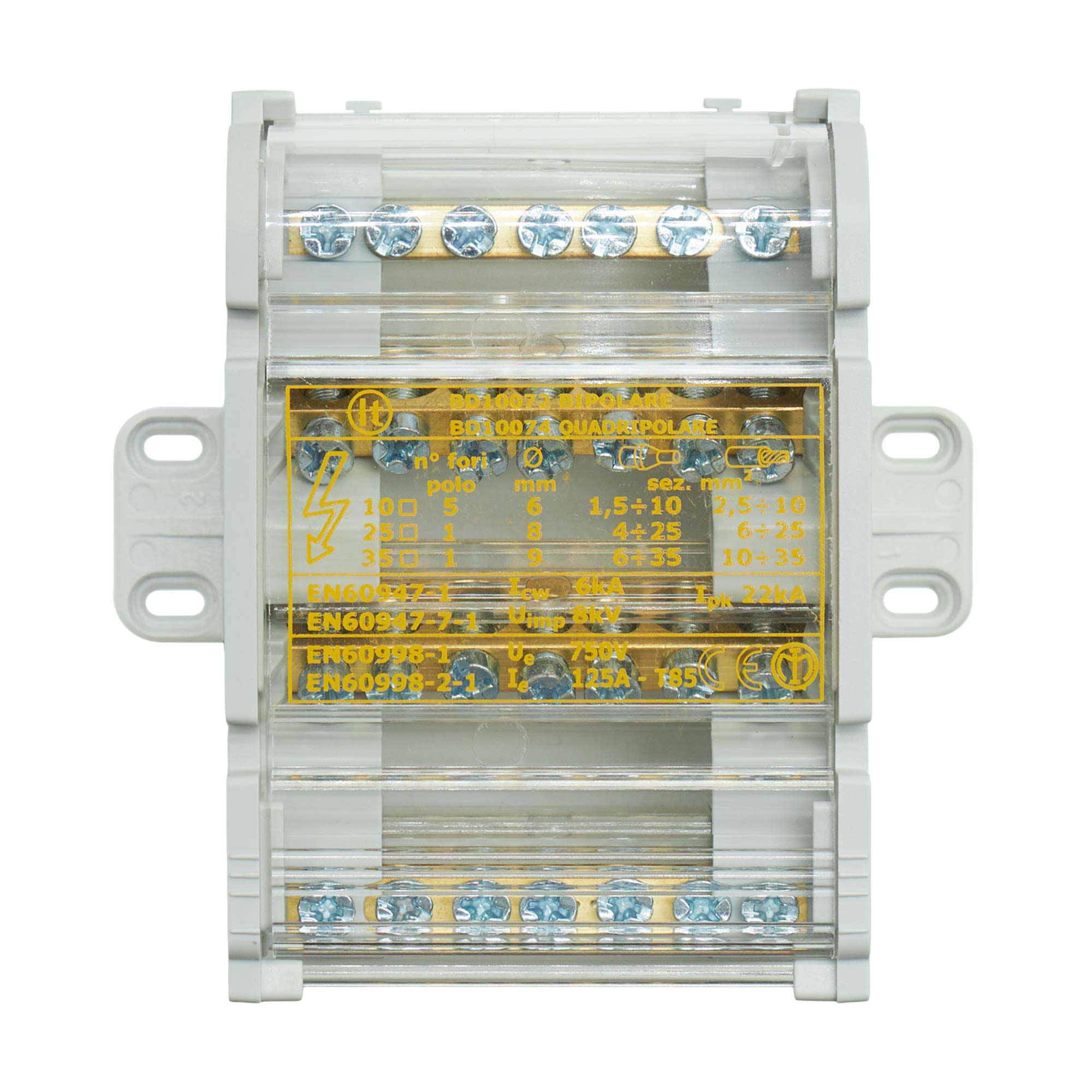

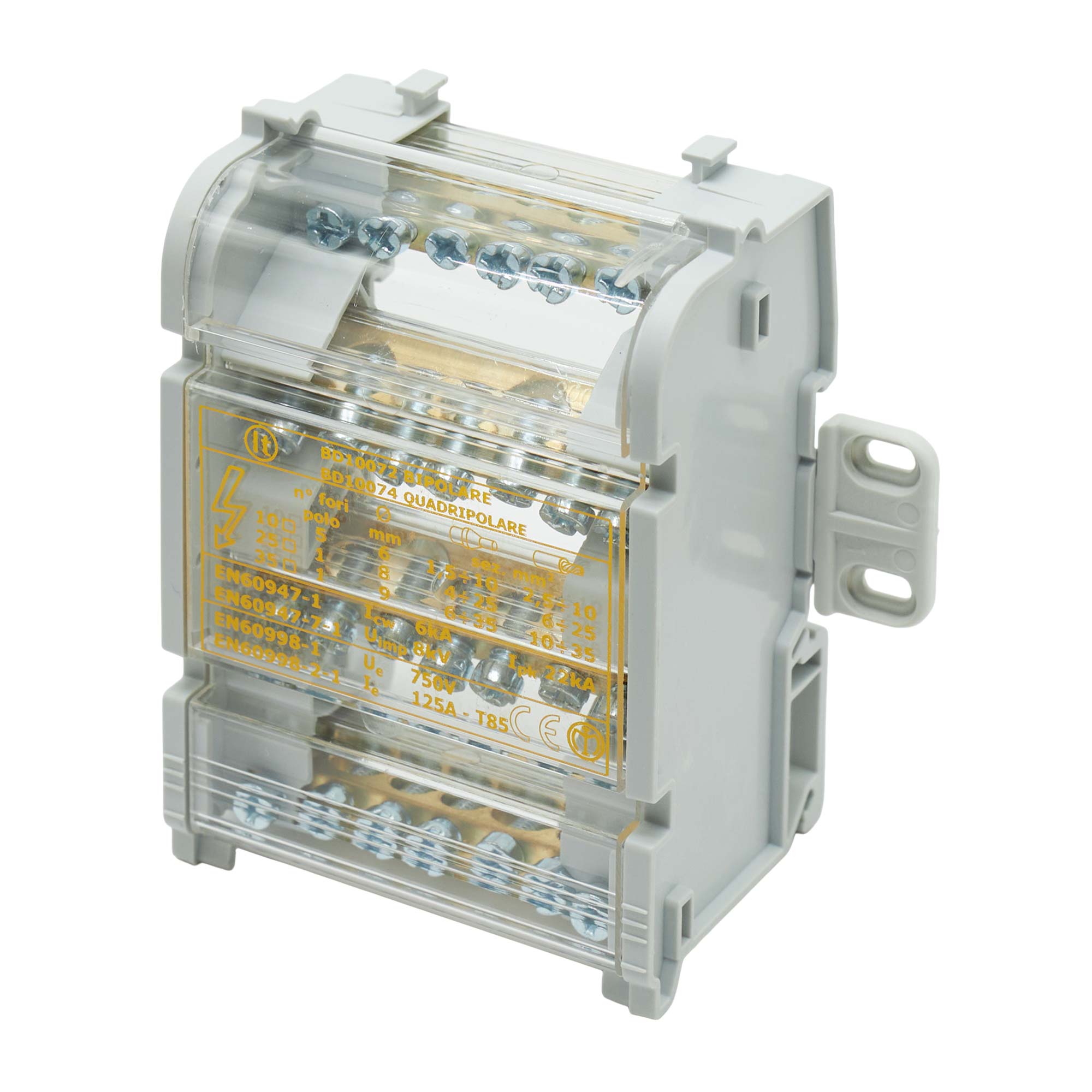

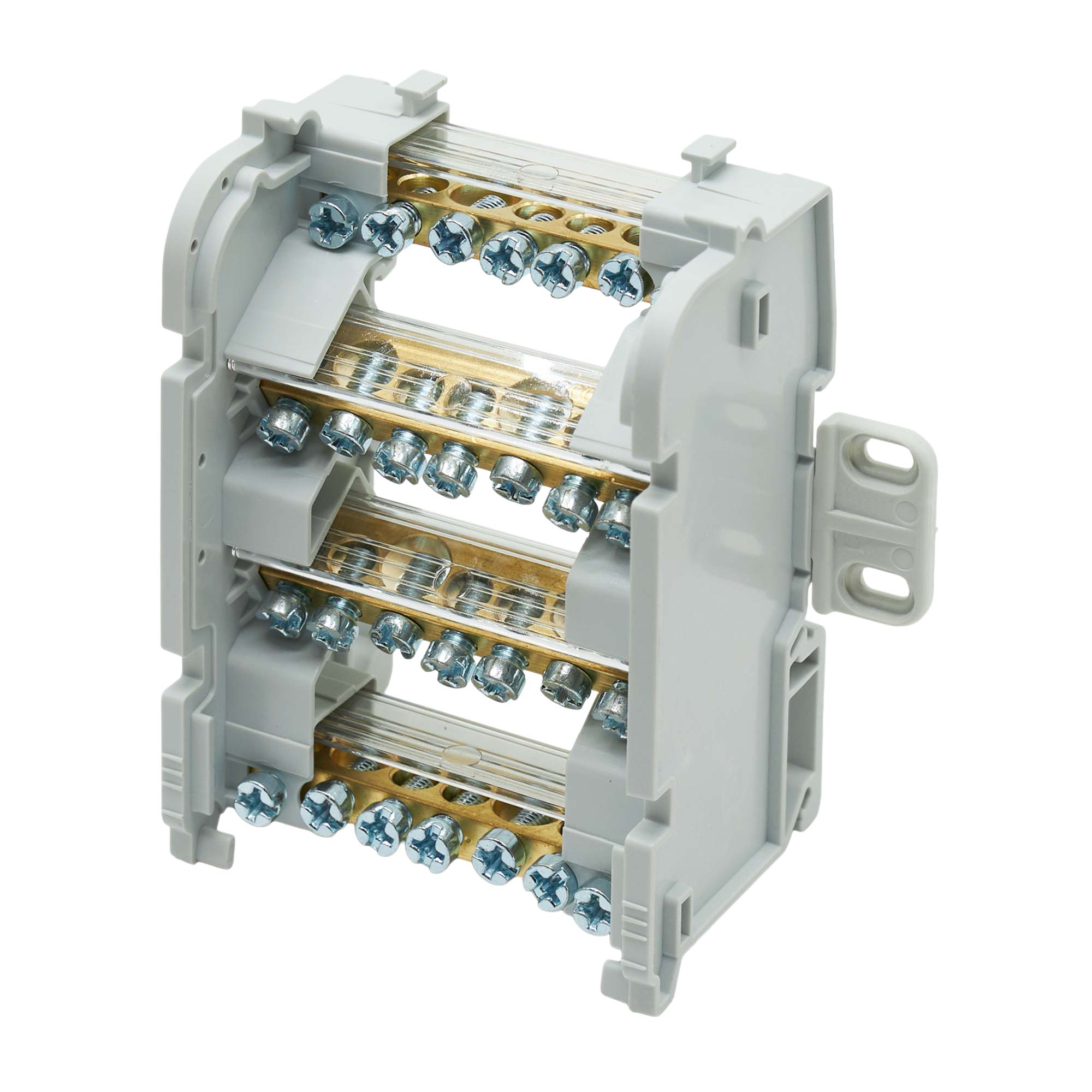

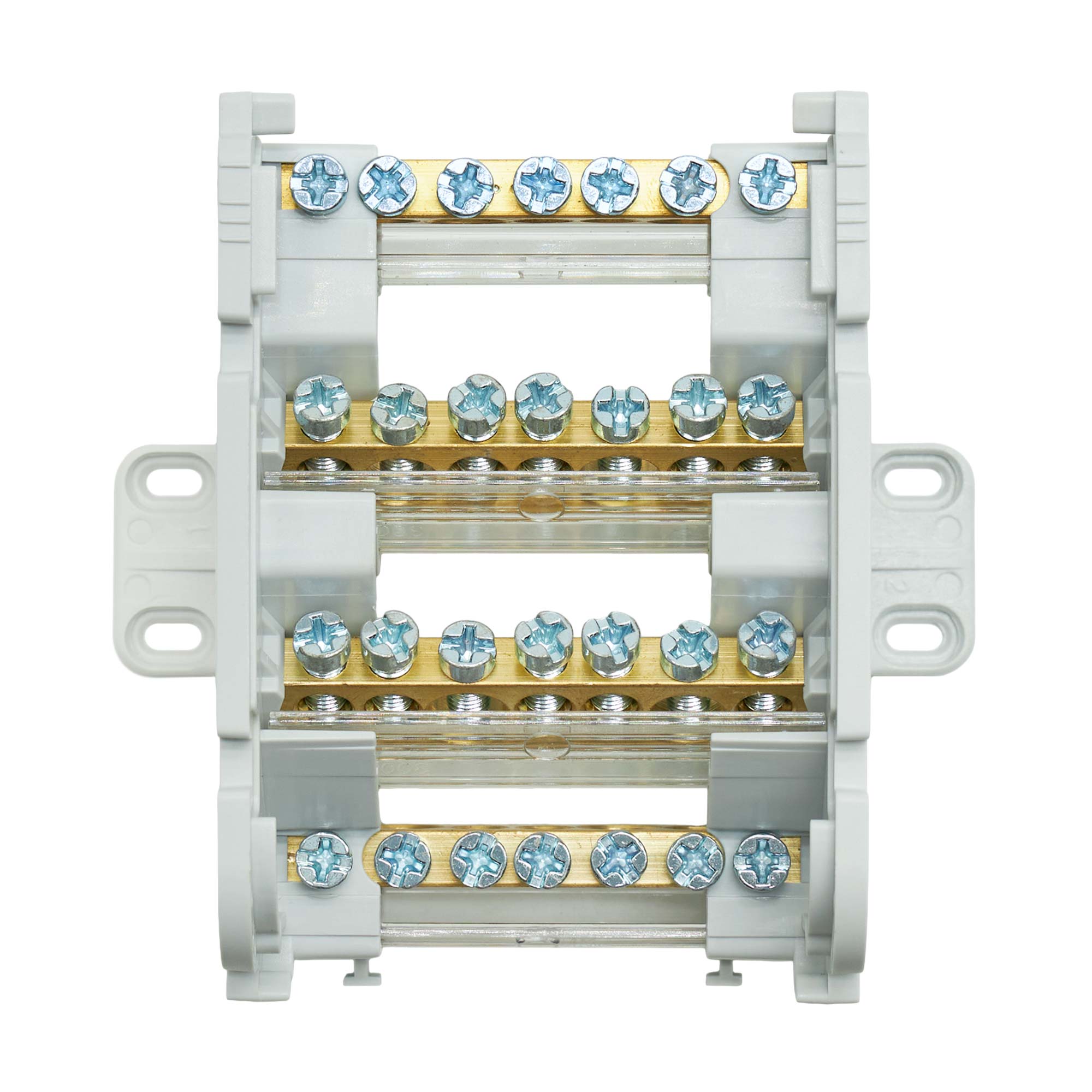

Protected terminal post 4р 100A, 5х6mm 2х7,5mm

Code: BD10074
Protected terminal post 4р 100A, 5х6mm 2х7,5mm
  • To ask a question
Width, mm 72
Height, mm 98
Depth, mm 45
Number of poles 4
Number of clamp positions per pole 7
Max. rated current, A 100
Number of modular spacings 4
Product type Distribution terminal blocks
Accessories
Drawings
Seria Name Eplan
Terminal blocks - "Quadro"
