| Mounting method | Other |
| Colour | Other |
| Rated voltage, V | 500 |
| Number of poles | 1 |
| Length, mm | 19.7 |
| Operating temperature, °C | -5...85 |
| Number of clamp positions per pole | 2 |
| Width/grid dimension, mm | 22.2 |
| Closing plate required | No |
| Transparent | Yes |
| Connectable conductor cross section multi-wired, mm² | 1...10 |
| Explosion-tested version 'Ex e' | No |
| Inflammability class of insulation material according to with UL94 | V0 |
| Type of electrical connection 1 | Screw connection |
| Type of electrical connection 2 | Screw connection |
| Material insulation body | Other |
| Connection position | Sideways |
| Height at lowest possible mounting height, mm | 21 |
| Rated current In, A | 80 |

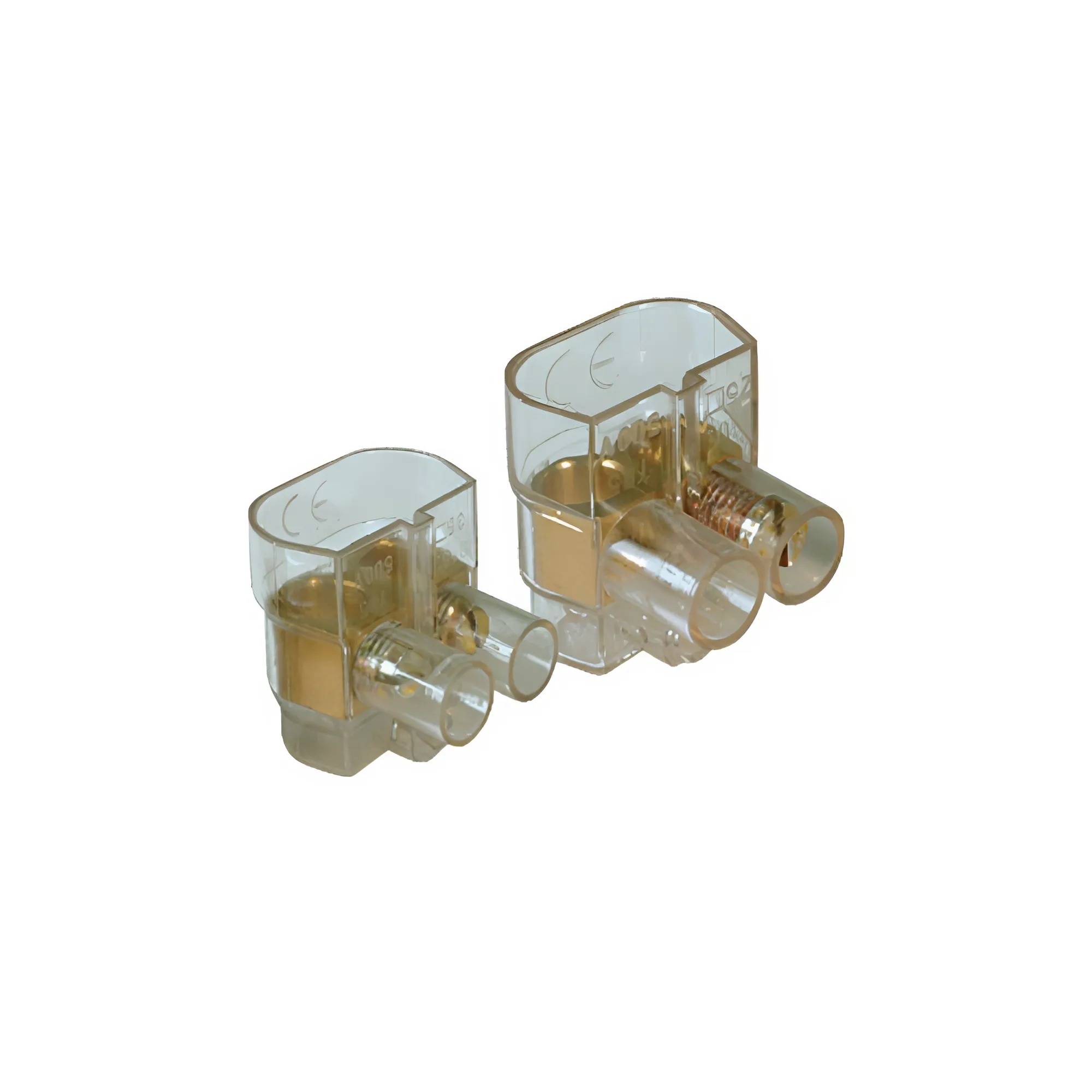

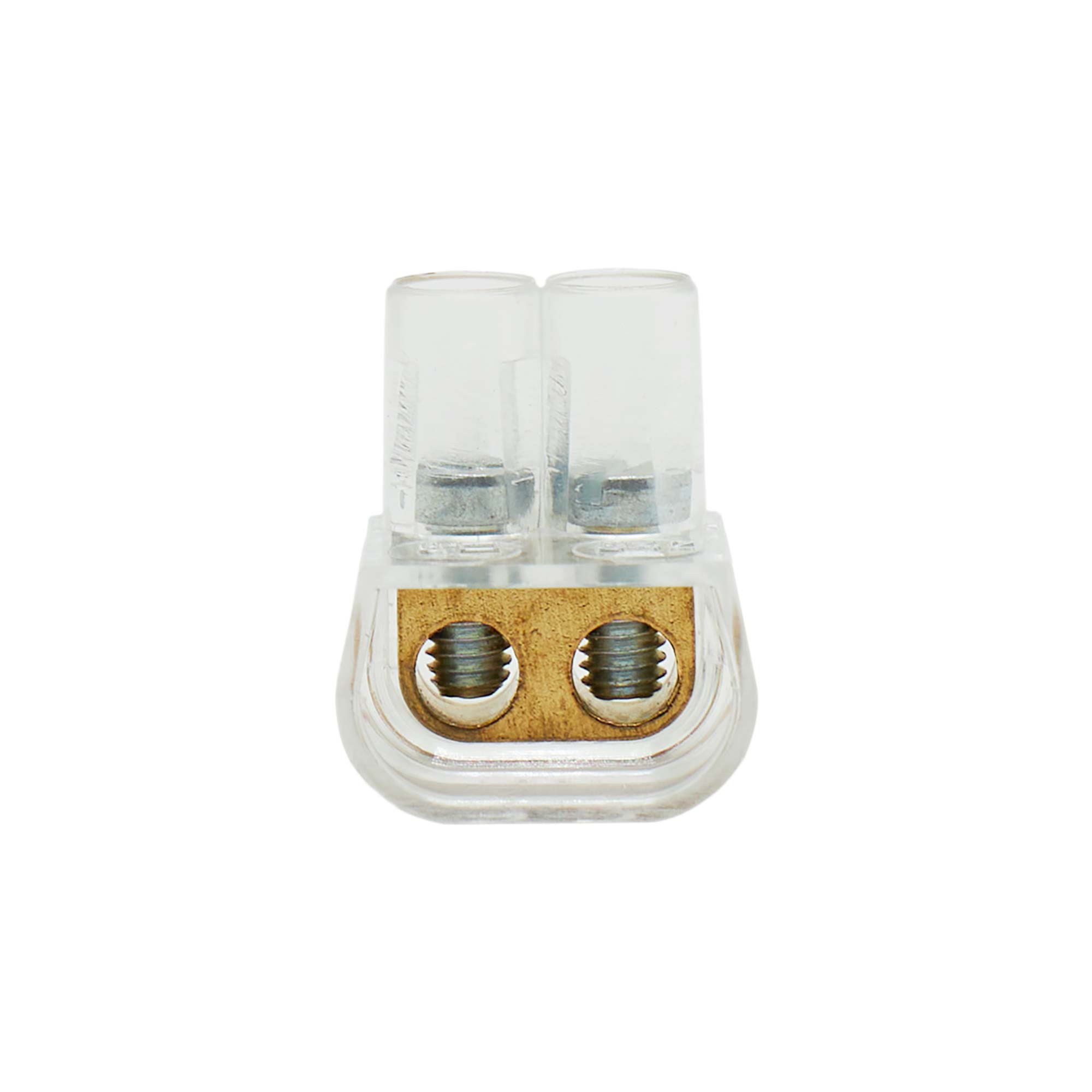

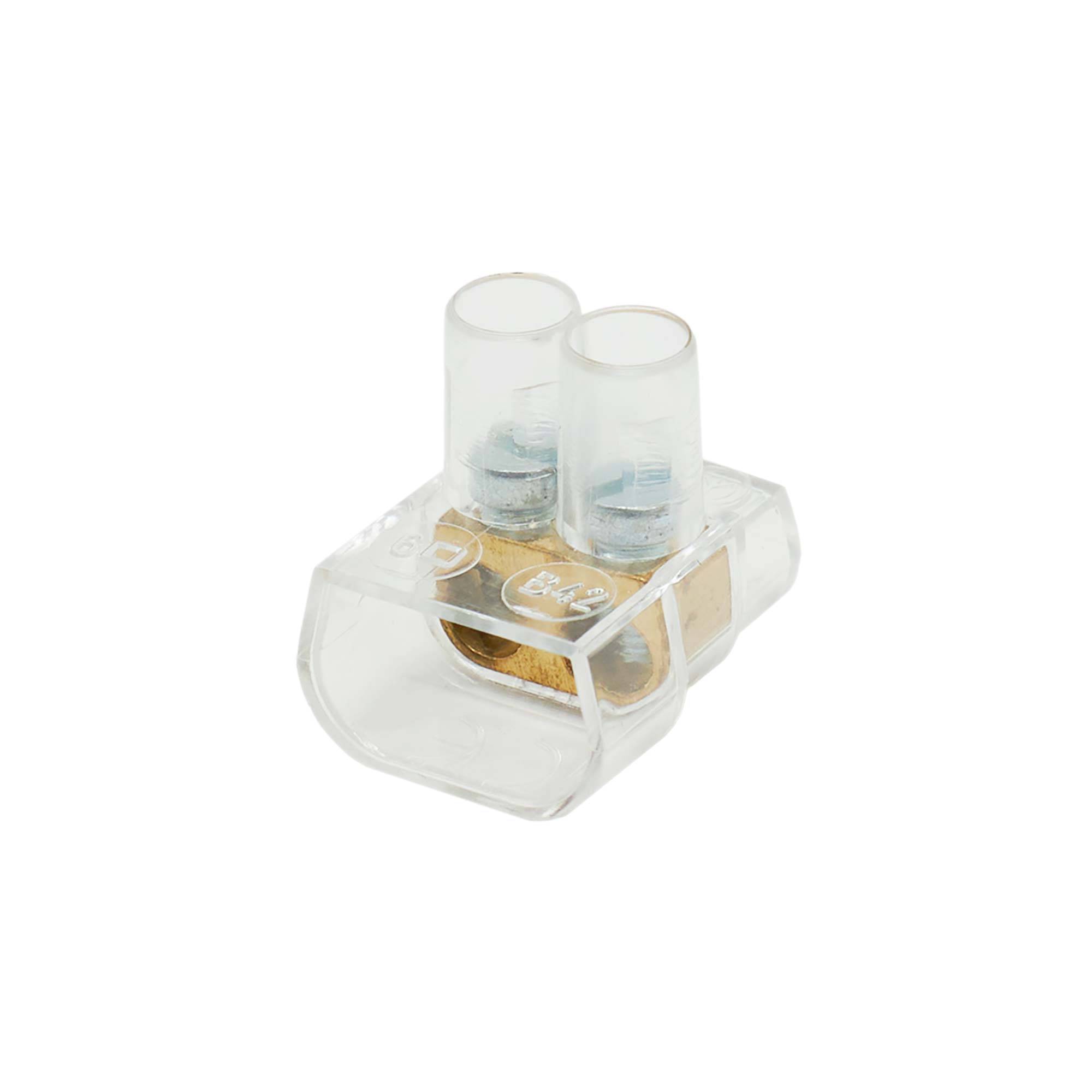

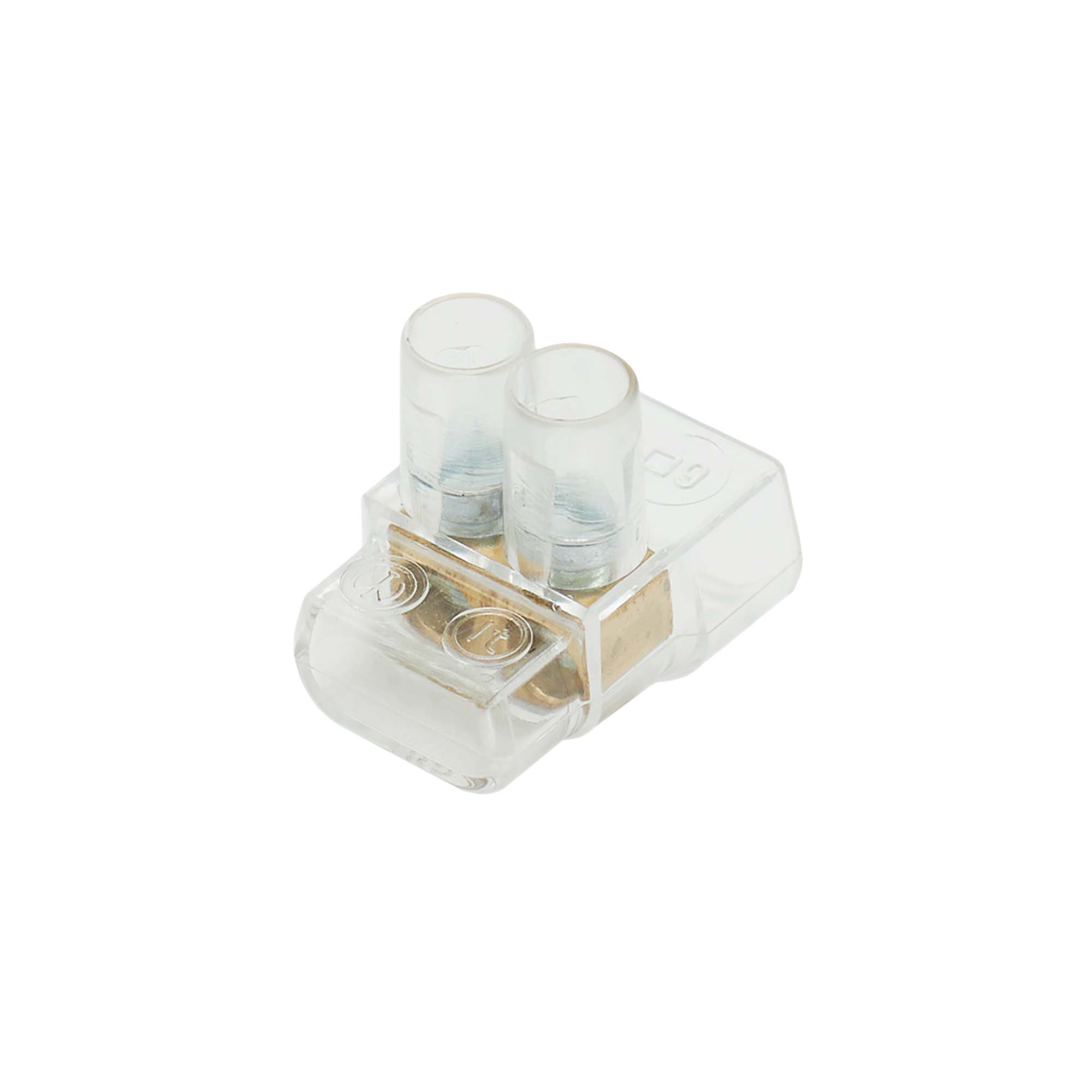

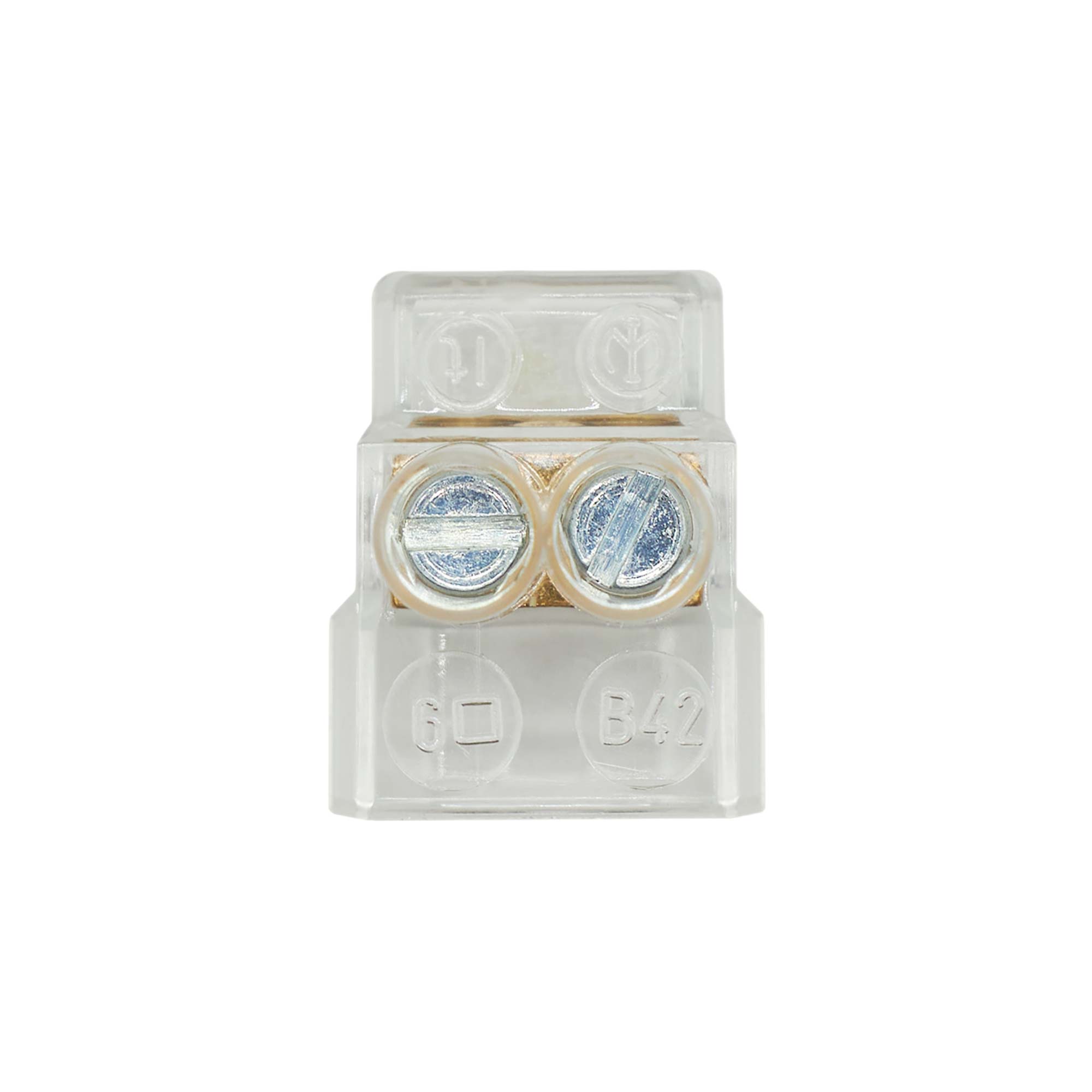

| Product type | Connecting terminal blocks |
| Maximum wire cross section | 10 mm2 |
