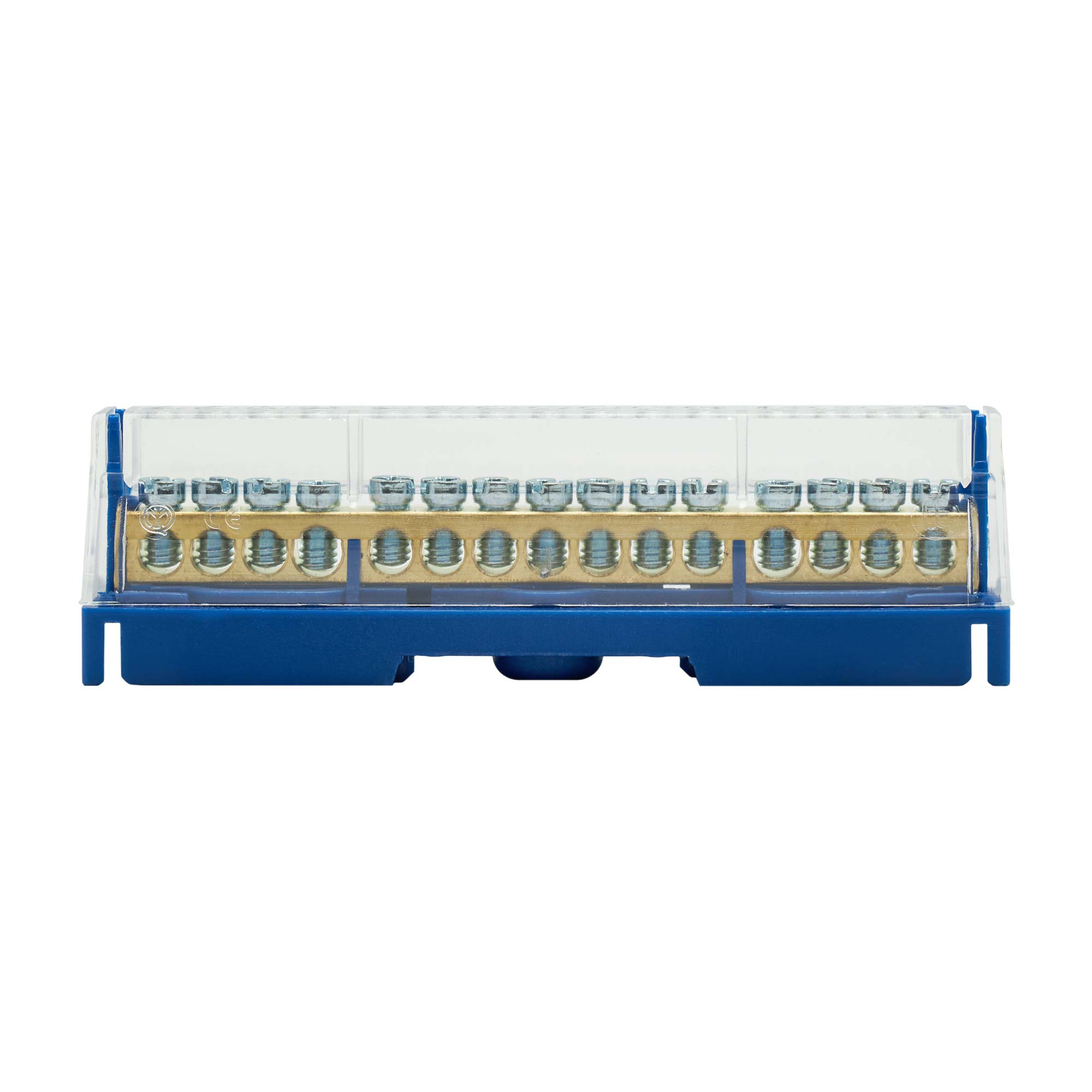

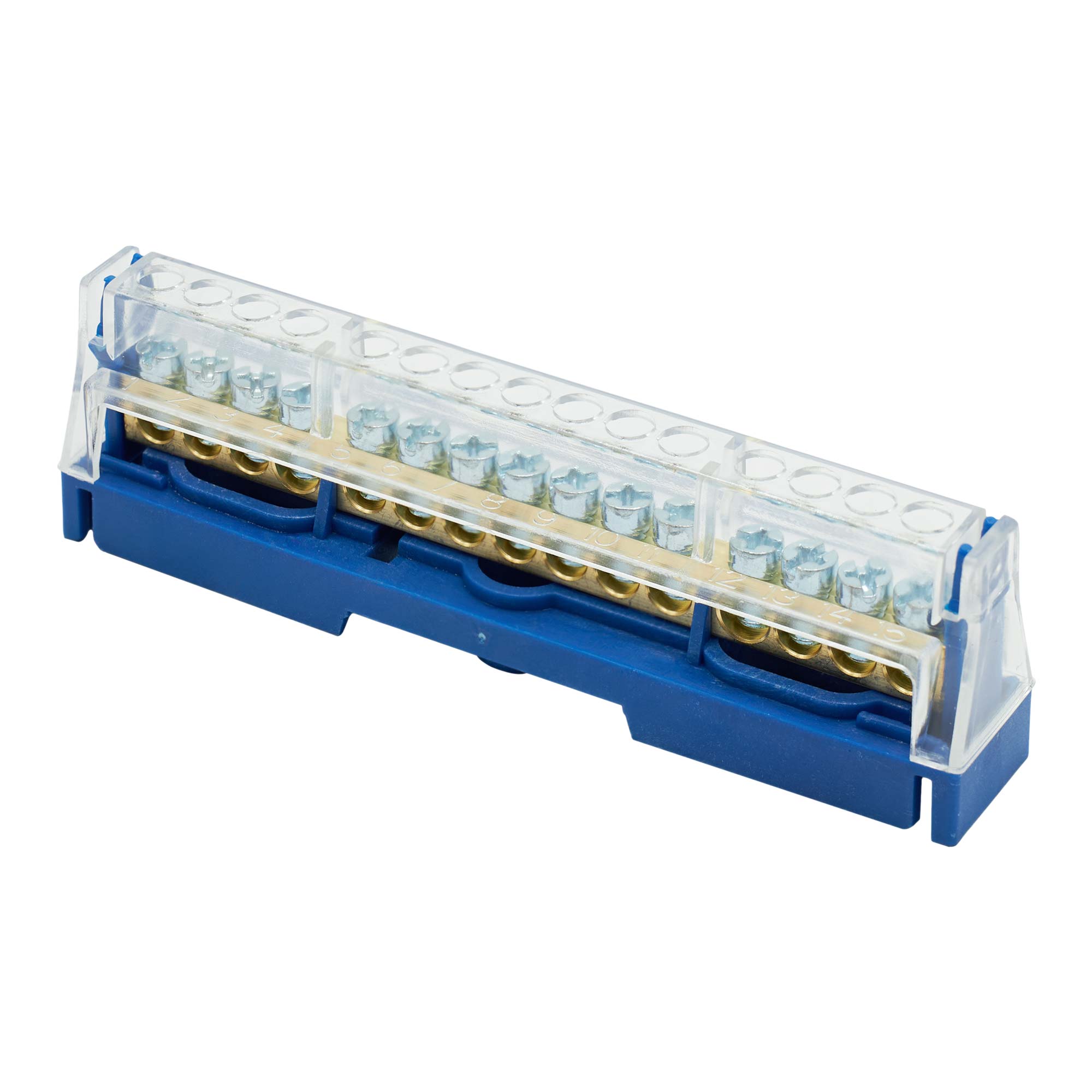

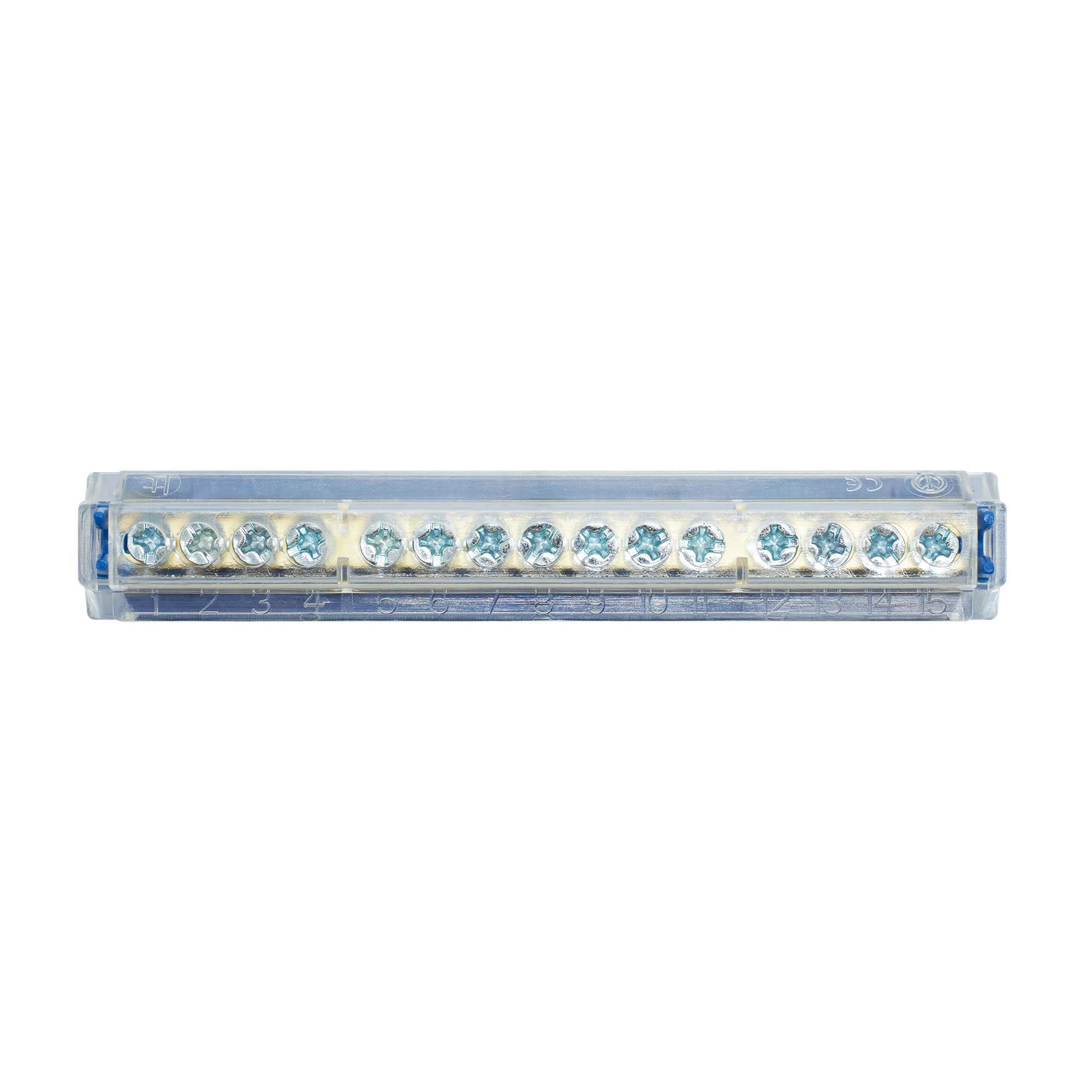

Unipolar terminal blocks 1р 15х5,3mm blue

Code: 5015N
Mounting method DIN rail (top hat rail) 15 mm
Colour Blue
Nominal rated voltage, V 750
Number of poles 1
Length, mm 114
Operation temperature, °C -5…85
Number of clamp positions per pole 15
Width/grid dimension, mm 5.3
Closing plate required No
Transparent No
Connectable conductor cross section multi-wired, mm² 16
Rated current In, A 63
Explosion-tested version 'Ex e' No
Inflammability class of insulation material acc. with UL94 Other
Type of electrical connection 1 Screw connection
Type of electrical connection 2 Screw connection
Material insulation body Polycarbonate
Connection position Sideways
P121 Yes
Color gray
Q'ty of holes 15
Drawings
Seria Name Eplan
Quadro - terminal blocks
