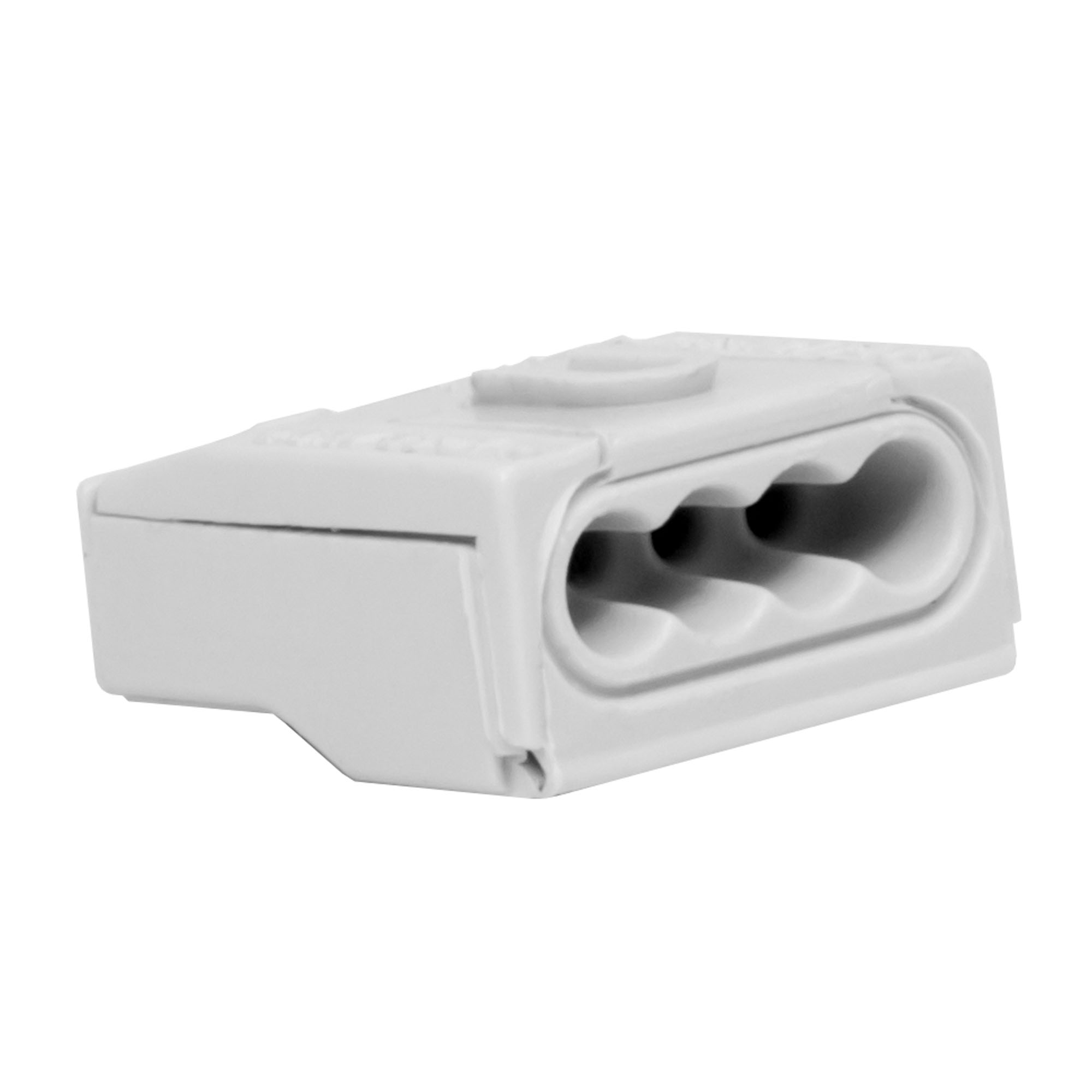

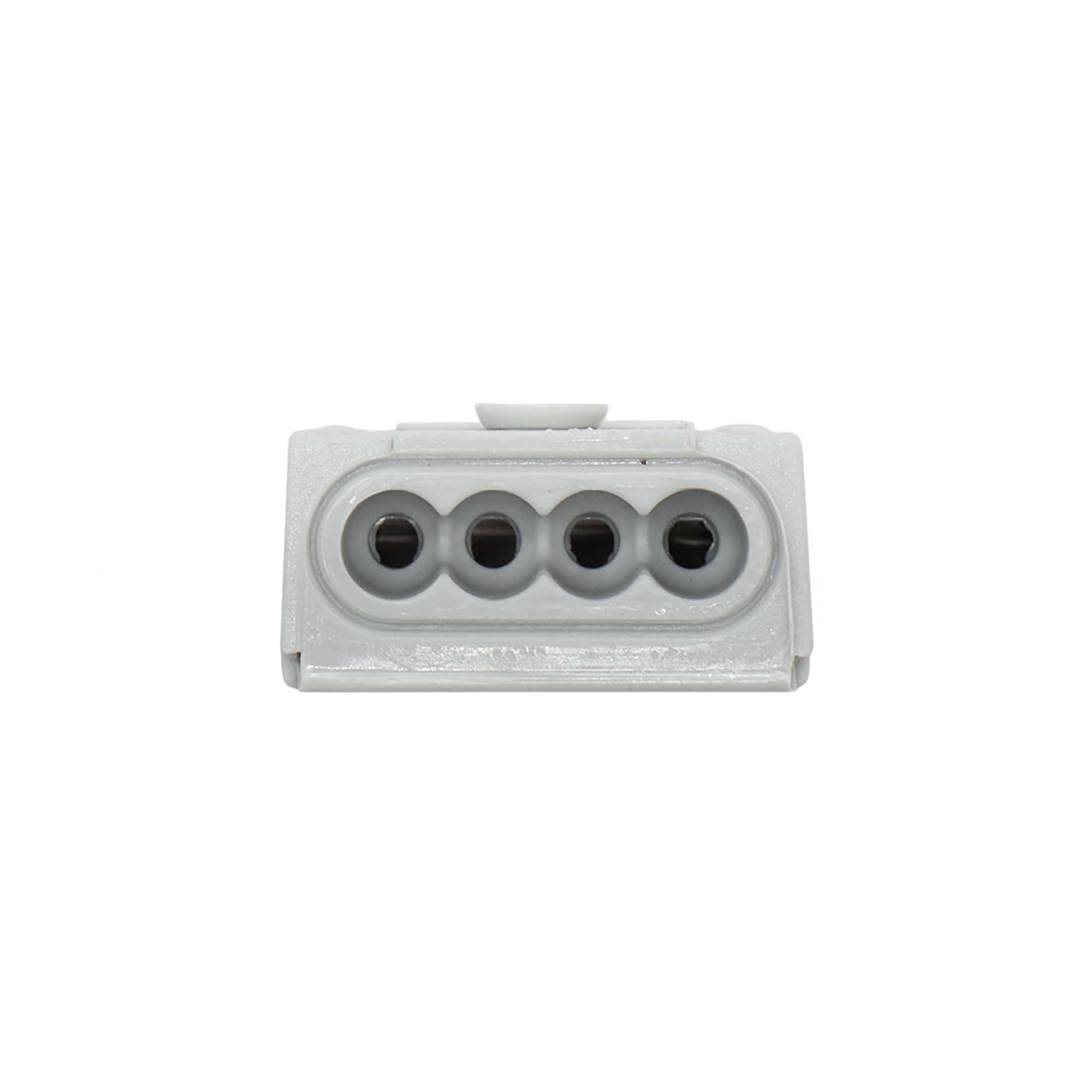

Quick wiring unipolar terminal 4х1,5-2,5 mm²

Code: B273/4
Quick wiring unipolar terminal 4х1,5-2,5 mm²
  • To ask a question
Mounting method Other
Colour Grey
Rated voltage, V 450
Length, mm 18.5
Operating temperature, °C -5…85
Width/grid dimension, mm 19
Closing plate required Нет
Transparent Нет
Connectable conductor cross section solid-core, mm² 2.5
Connectable conductor cross section fine-strand with cable end sleeve, mm² 1.5
Connectable conductor cross section fine-strand without cable end sleeve, mm² 1.5…2.5
Connectable conductor cross section multi-wired, mm² 1.5…2.5
Rated current In, A 24
Explosion-tested version 'Ex e' Нет
Inflammability class of insulation material according to with UL94 Other
Type of electrical connection 1 Spring clamp connection
Type of electrical connection 2 Spring clamp connection
Material insulation body Polyamide (PA)
Connection position Sideways
Product type Screwless terminal blocks
Drawings
Seria Name Eplan
Terminal blocks - "Quadro"
