| Mounting method | Other |
| Colour | Grey |
| Rated voltage, V | 450 |
| Length, mm | 15 |
| Operating temperature, °C | -5…85 |
| Width/grid dimension, mm | 19 |
| Closing plate required | Нет |
| Transparent | Нет |
| Connectable conductor cross section solid-core, mm² | 2.5 |
| Connectable conductor cross section fine-strand with cable end sleeve, mm² | 1.5 |
| Connectable conductor cross section fine-strand without cable end sleeve, mm² | 1.5…2.5 |
| Connectable conductor cross section multi-wired, mm² | 1.5…2.5 |
| Rated current In, A | 24 |
| Explosion-tested version 'Ex e' | Нет |
| Inflammability class of insulation material according to with UL94 | Other |
| Type of electrical connection 1 | Spring clamp connection |
| Type of electrical connection 2 | Spring clamp connection |
| Material insulation body | Polyamide (PA) |
| Connection position | Sideways |

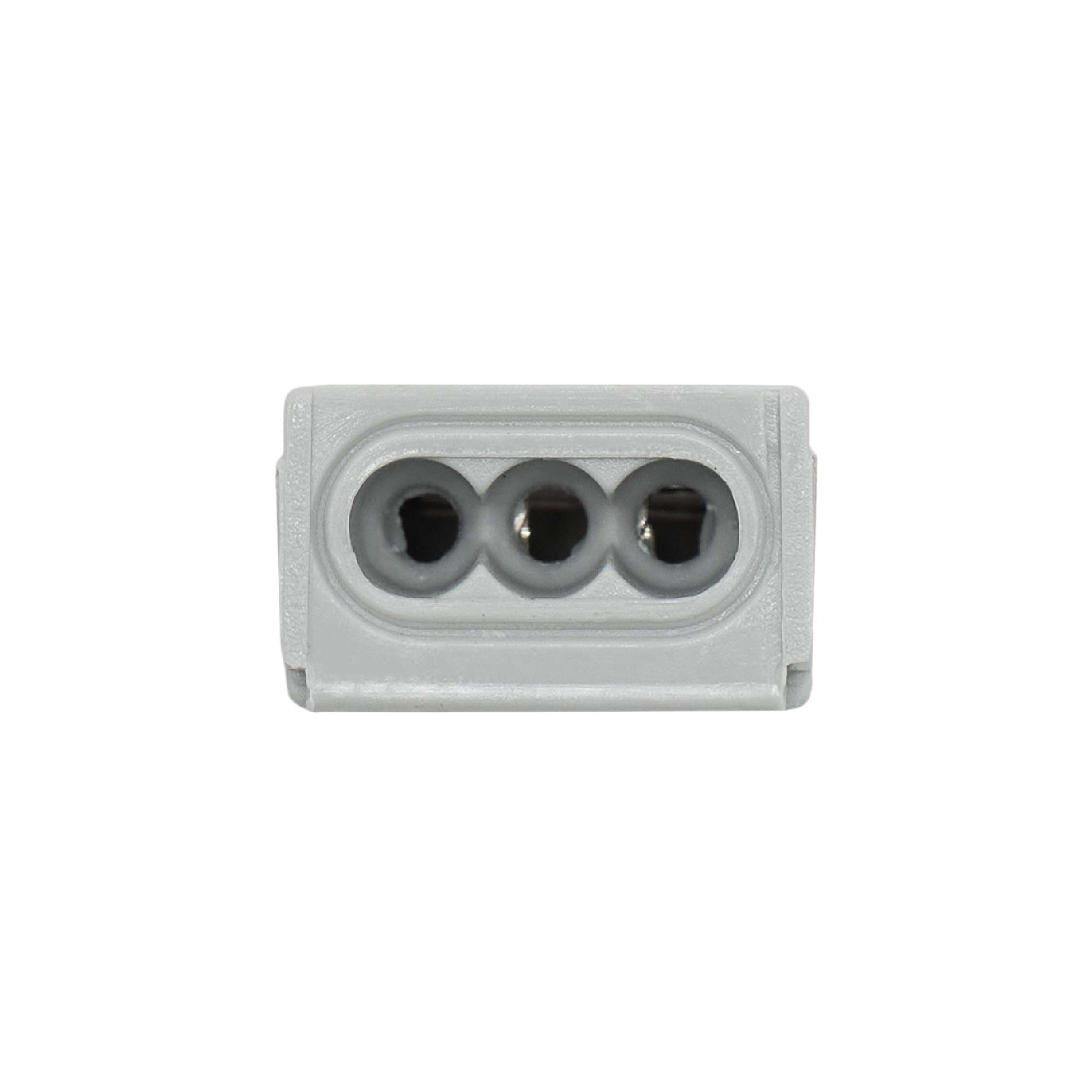

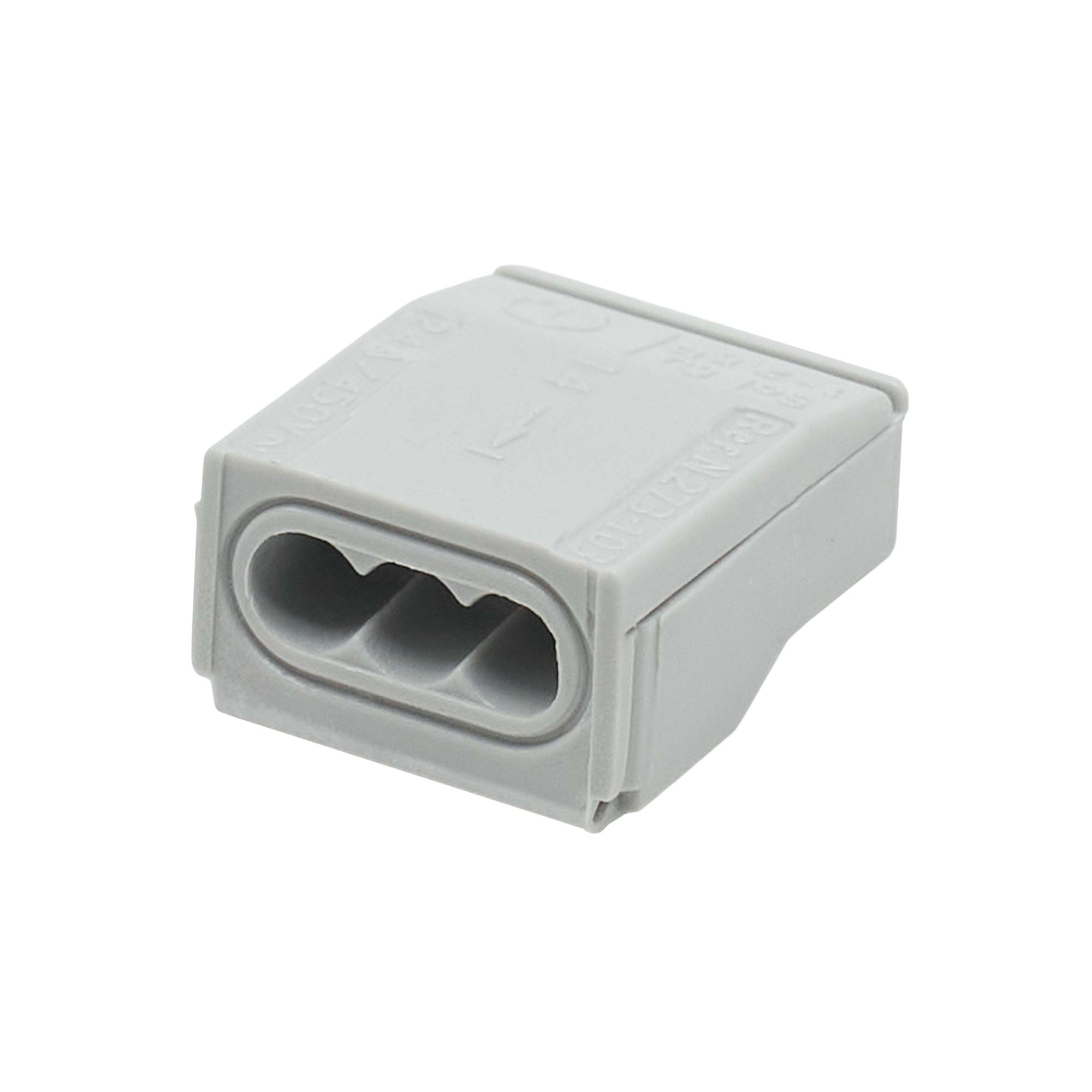

| Product type | Screwless terminal blocks |
Drawings
| Seria | Name | Eplan |
|---|---|---|
|
Terminal blocks - "Quadro"
|
