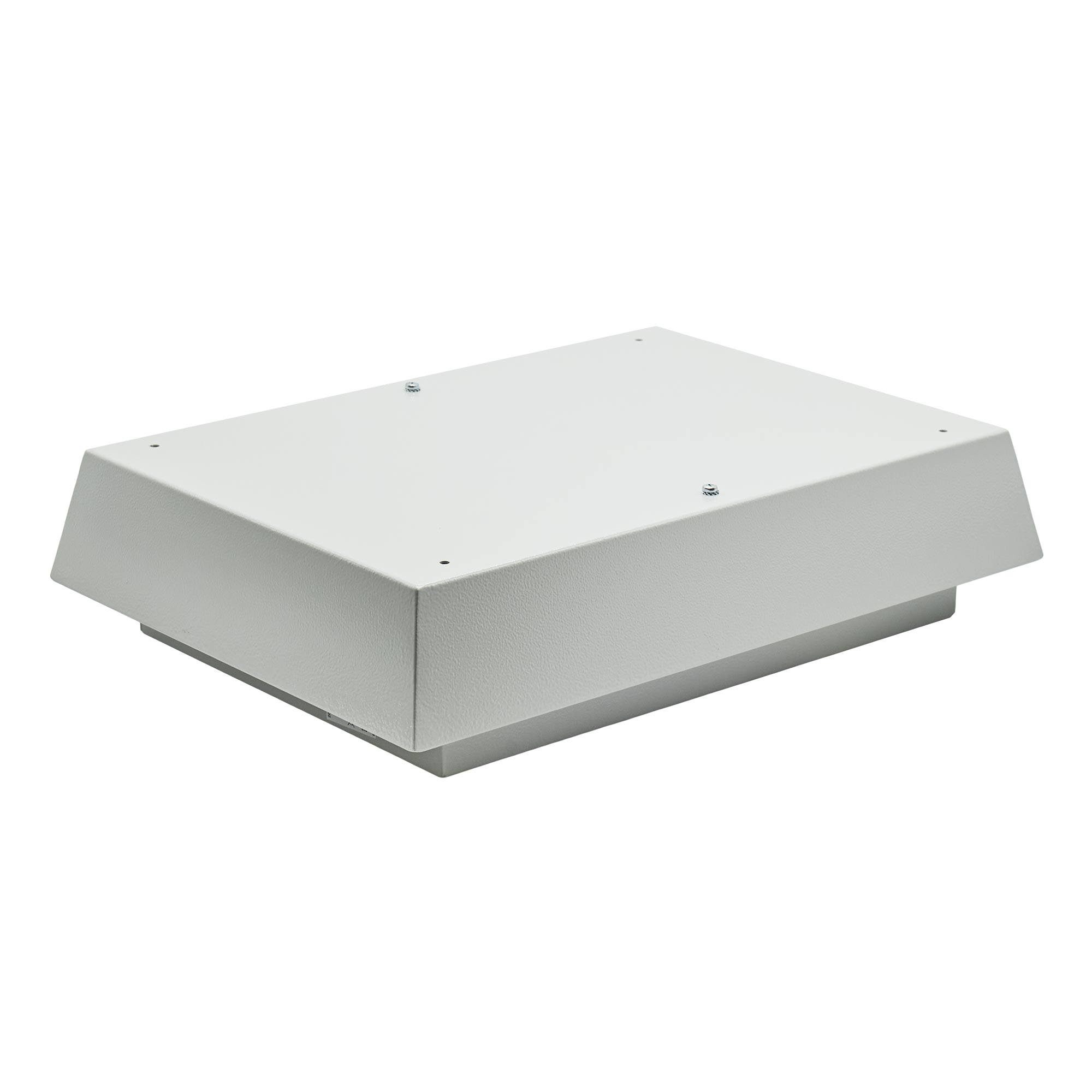

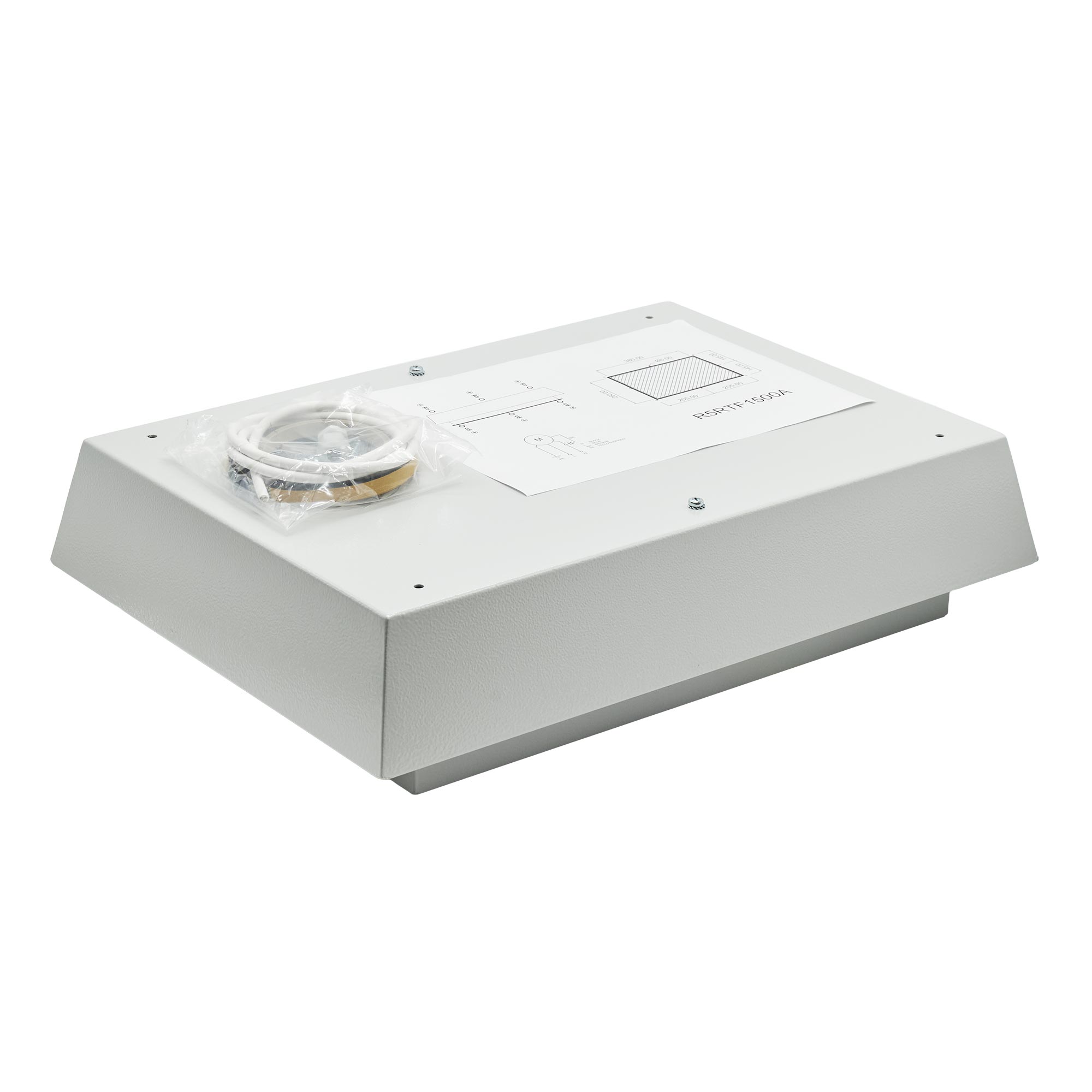

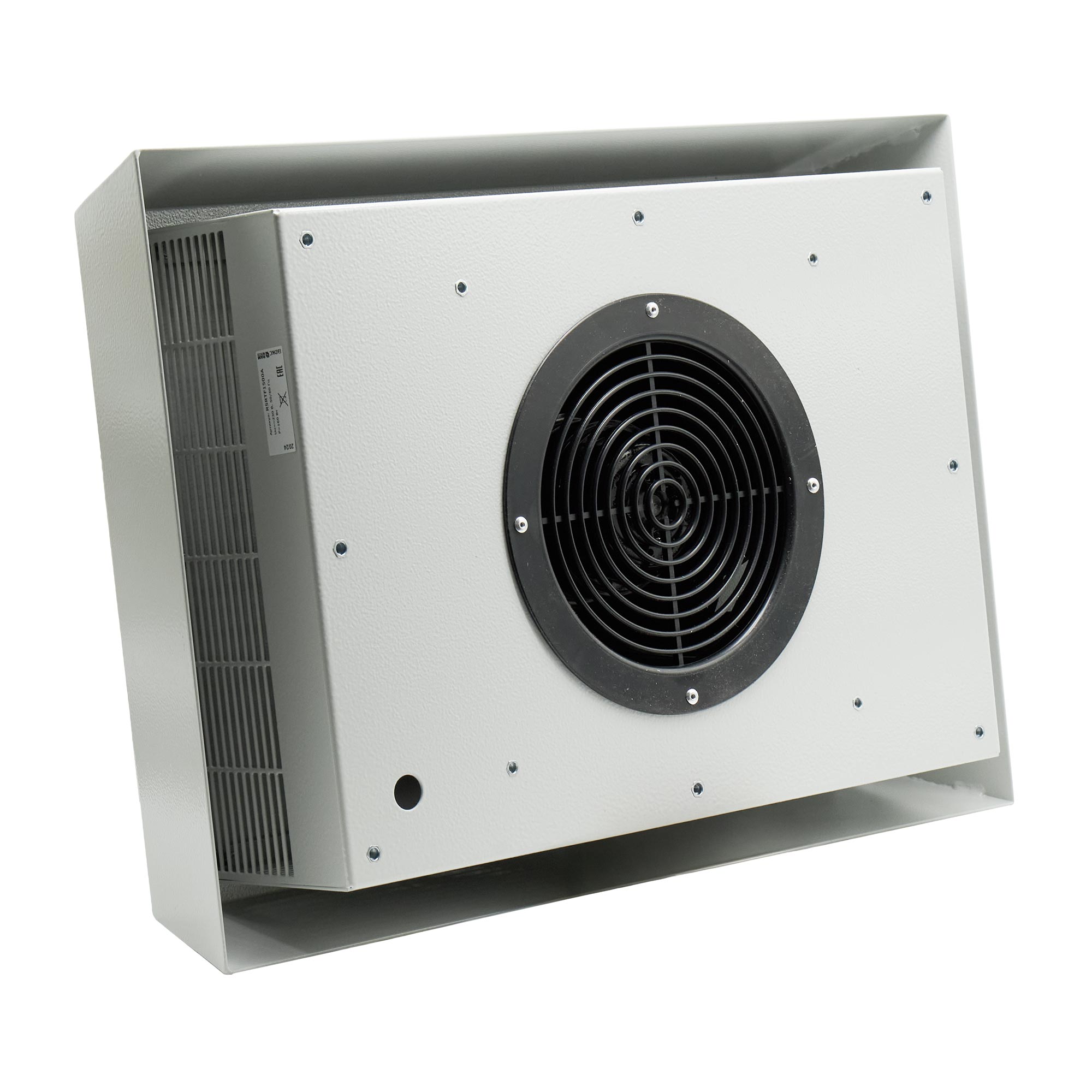

Roof fan with filter 1500/1550 m3/h, 230 V, IP44
Code: R5RTF1500A
Roof fan with filter 1500/1550 m3/h, 230 V, IP44
Code: R5RTF1500A
Mounting method | Snap mounting |
Width, mm | 540 |
Height, mm | 128 |
Depth, mm | 390 |
Suitable for 19 inch rack mounting | Нет |
Number of fans | 1 |
EMC-version | Нет |
Degree of protection (IP) | IP44 |
With filter | Да |
Rated power, W | 160 |
Roof ventilator | Да |
Built as slide-in ventilator | Нет |
Volume flow, freeblowing, m³/h | 1500 |
Air circulator | Нет |
Wall build in | Нет |
Operating voltage at AC 50 Hz, V | 230 |
Operating voltage at AC 60 Hz, V | 230 |
Voltage type | AC |
RAL-number | 7035 |
With protective cover | ДА |
Noise emission, dB(A) | 74 |
Colour | Grey |
Product type | Fan |
Mounting type | Roof-mounted |
Rated operating voltage V, ~, Hz | 230 V, 1 p, 50/60 Hz |
Size | Roof-mounted, 540 x 128 x 390 |
EMC-version | No |
Code of ventilation grille | 2 x R5RF20 |
External dimensions (W x H x D), mm | 540 x 128 x 390 |
Maximum installation depth, mm | 38 |
Required mounting cut-out (W x H), mm | 380 x 260 |
Degree of protection | IP44 |
Optionally degree of protection | - |
Material | Steel sheet |
Operating temperature range, ˚C | -20…+50 |
Storage temperature range, ˚C | -20…+50 |
Noise level, dB(A) | 74 |
Rated current, A | 0.7 |
Rated power consumption, W | 160 |
Maximum static pressure, Pa | - |
Service life (MTBF), h | 50000 |
Filter class | - |
Color | RAL 7035, light grey |
Weight, kg | 11.3 |
Unimpeded air flow, m3/h | 1500 |
