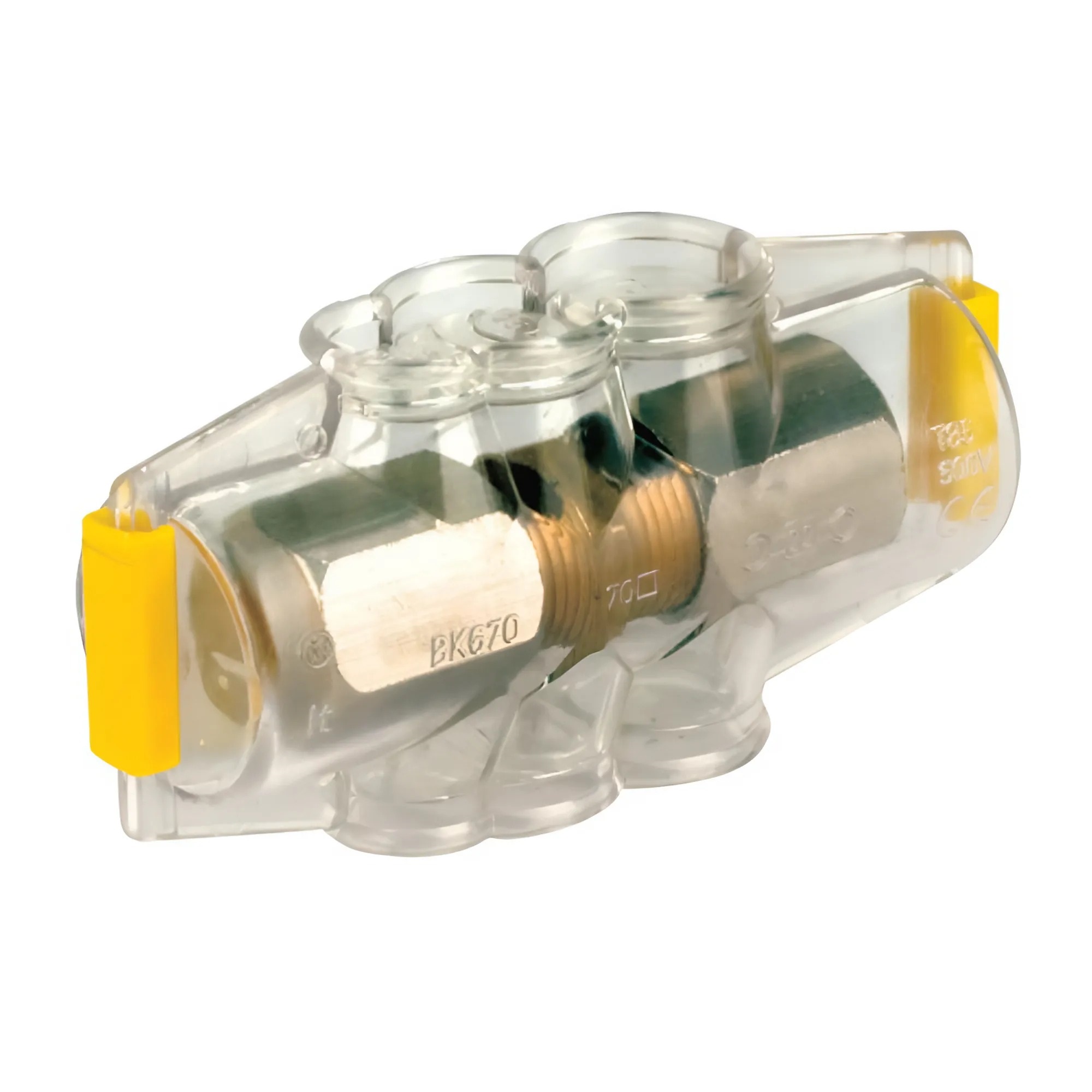

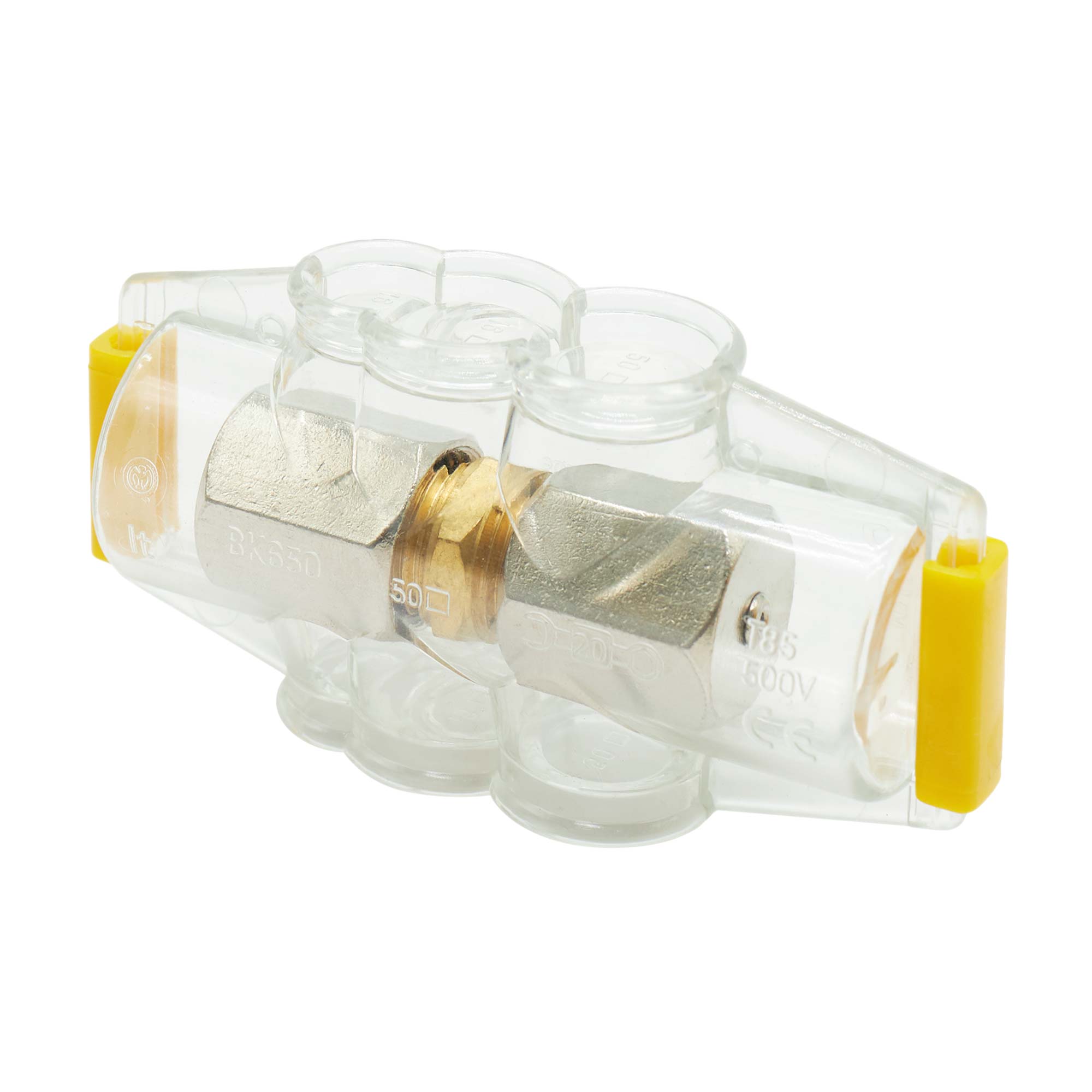

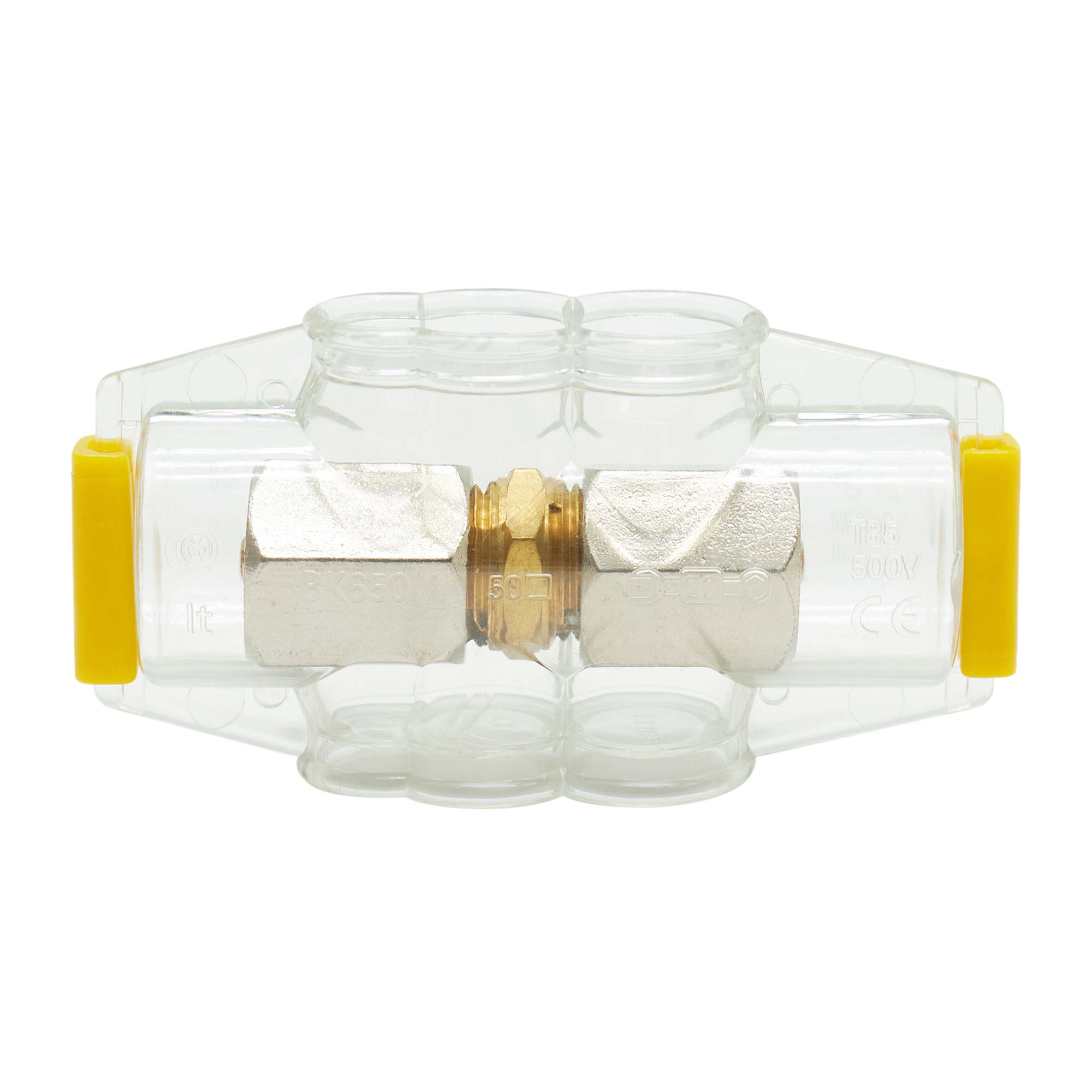

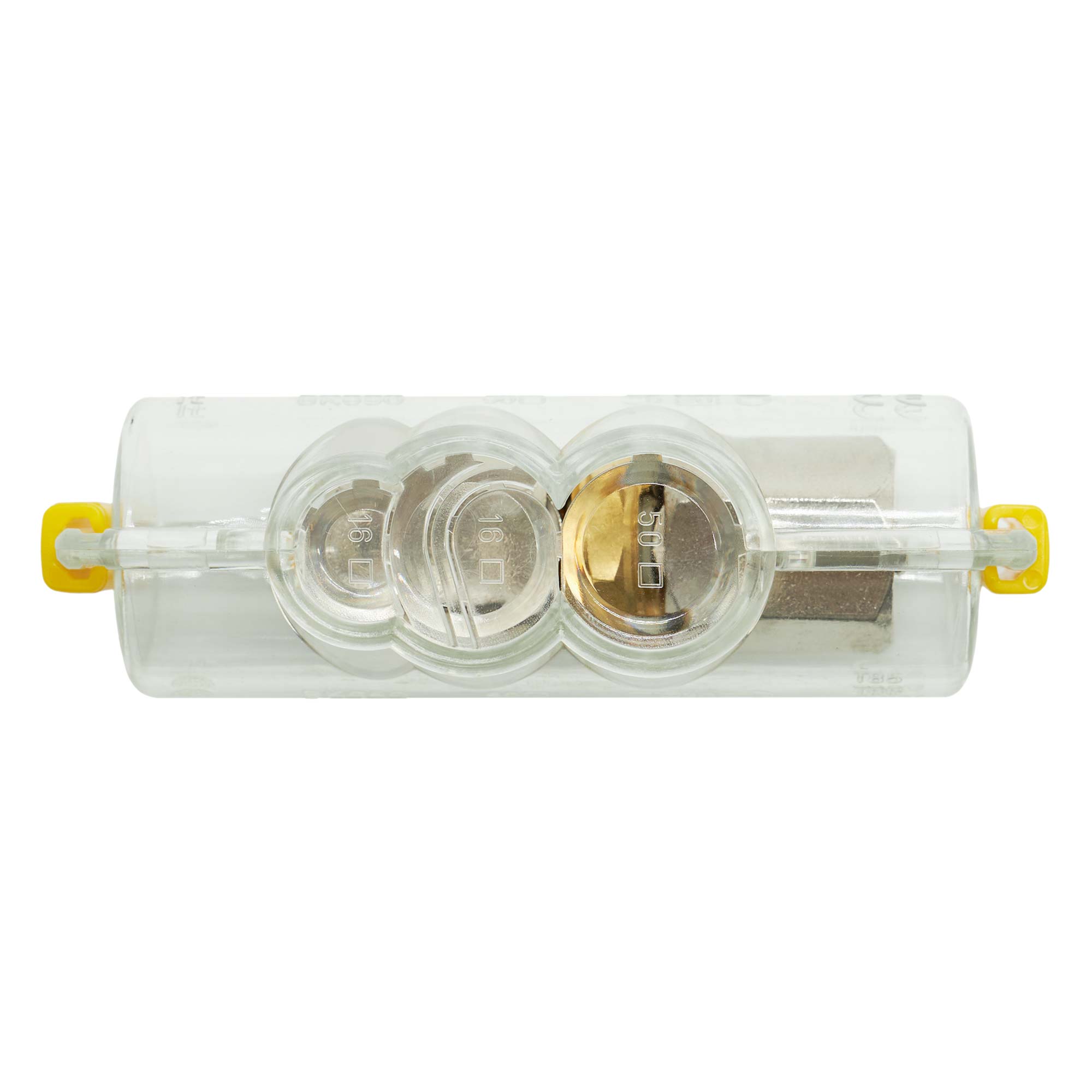

Universal Terminal Block 16/16/4mm²

Code: BK616
Universal Terminal Block 16/16/4mm²
  • To ask a question
Mounting method Other
Colour Other
Nominal rated voltage, V 750
Number of poles 1
Length, mm 67
Operation temperature, °C -5…85
Number of clamp positions per pole 2
Width/grid dimension, mm 25.2
Closing plate required Нет
Transparent Нет
Connectable conductor cross section multi-wired, mm² 4...16
Explosion-tested version 'Ex e' Нет
Inflammability class of insulation material acc. with UL94 Other
Type of electrical connection 1 Spring clamp connection
Type of electrical connection 2 Spring clamp connection
Material insulation body Polycarbonate
Connection position Above
Product type Branch terminal blocks
Drawings
Seria Name Eplan
Terminal blocks - "Quadro"
