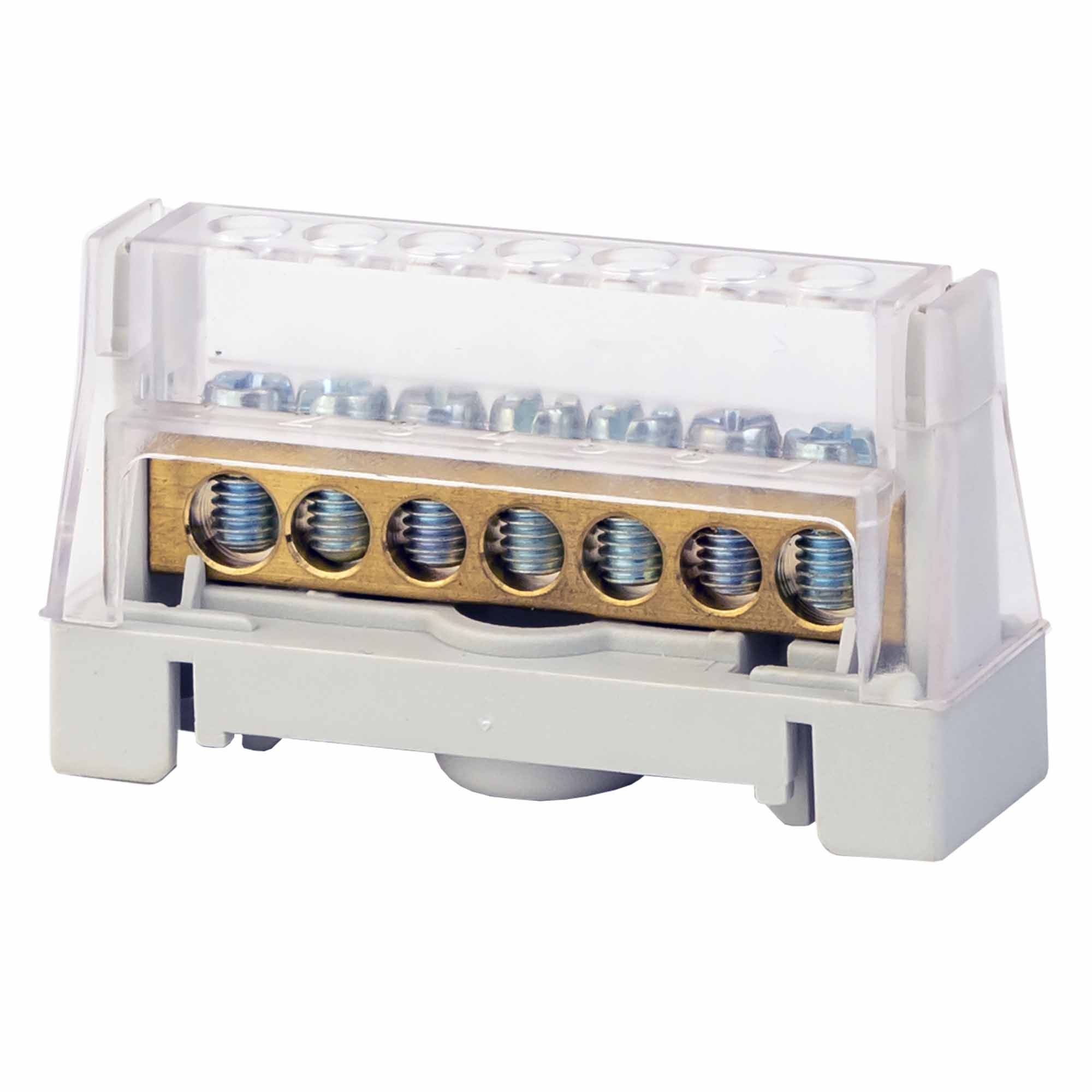

Unipolar terminal blocks 1р 11х5,3mm gray

Code: 5011F
Unipolar terminal blocks 1р 11х5,3mm gray
  • To ask a question
Mounting method DIN rail (top hat rail) 35 mm
Colour Grey
Nominal rated voltage, V 750
Number of poles 1
Length, mm 88
Operation temperature, °C -5…85
Number of clamp positions per pole 11
Width/grid dimension, mm 5.3
Closing plate required Нет
Transparent Нет
Connectable conductor cross section multi-wired, mm² 16
Rated current In, A 63
Explosion-tested version 'Ex e' Нет
Inflammability class of insulation material acc. with UL94 Other
Type of electrical connection 1 Screw connection
Type of electrical connection 2 Screw connection
Material insulation body Polycarbonate
Connection position Sideways
Product type Connecting terminal blocks
Drawings
Seria Name Eplan
Terminal blocks - "Quadro"
