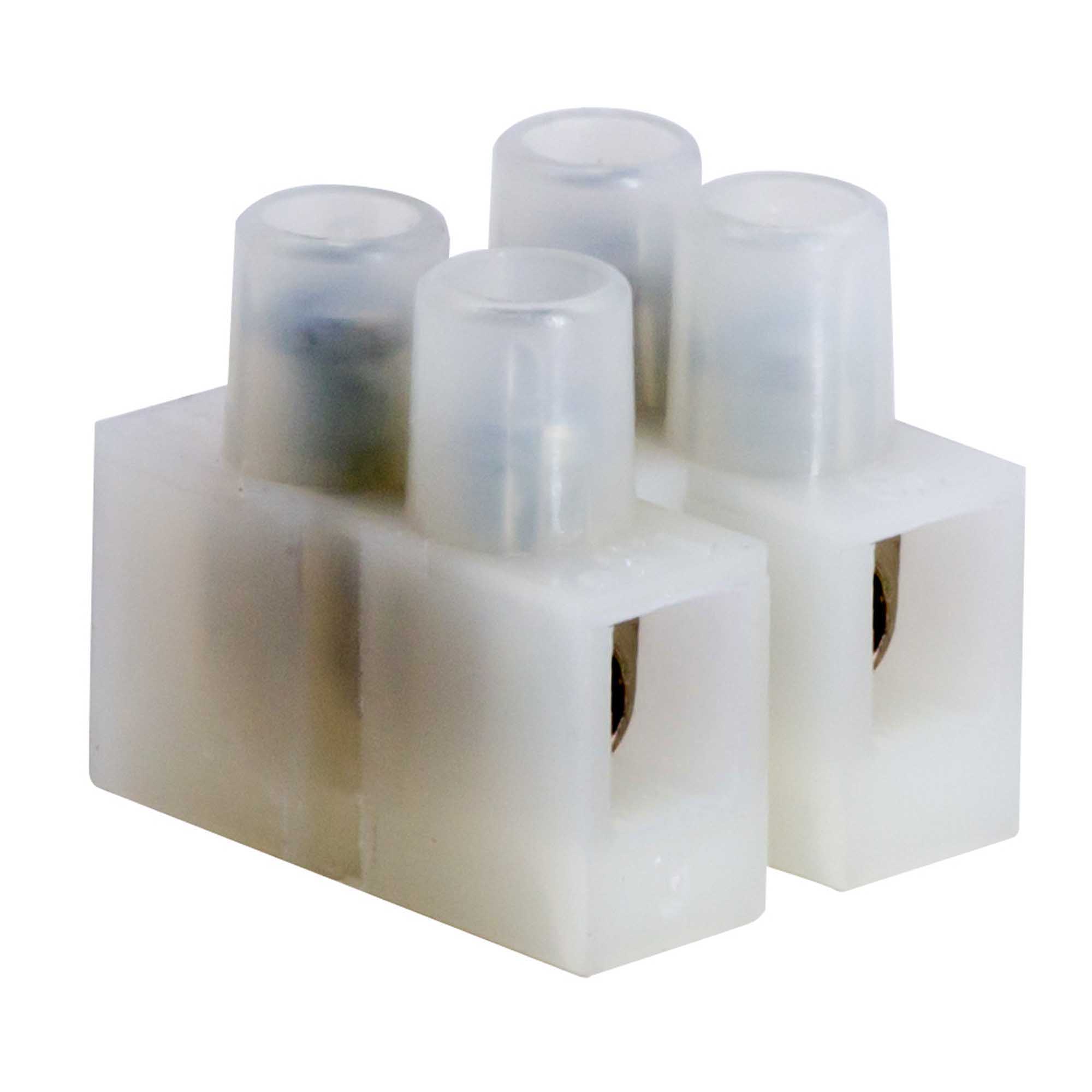

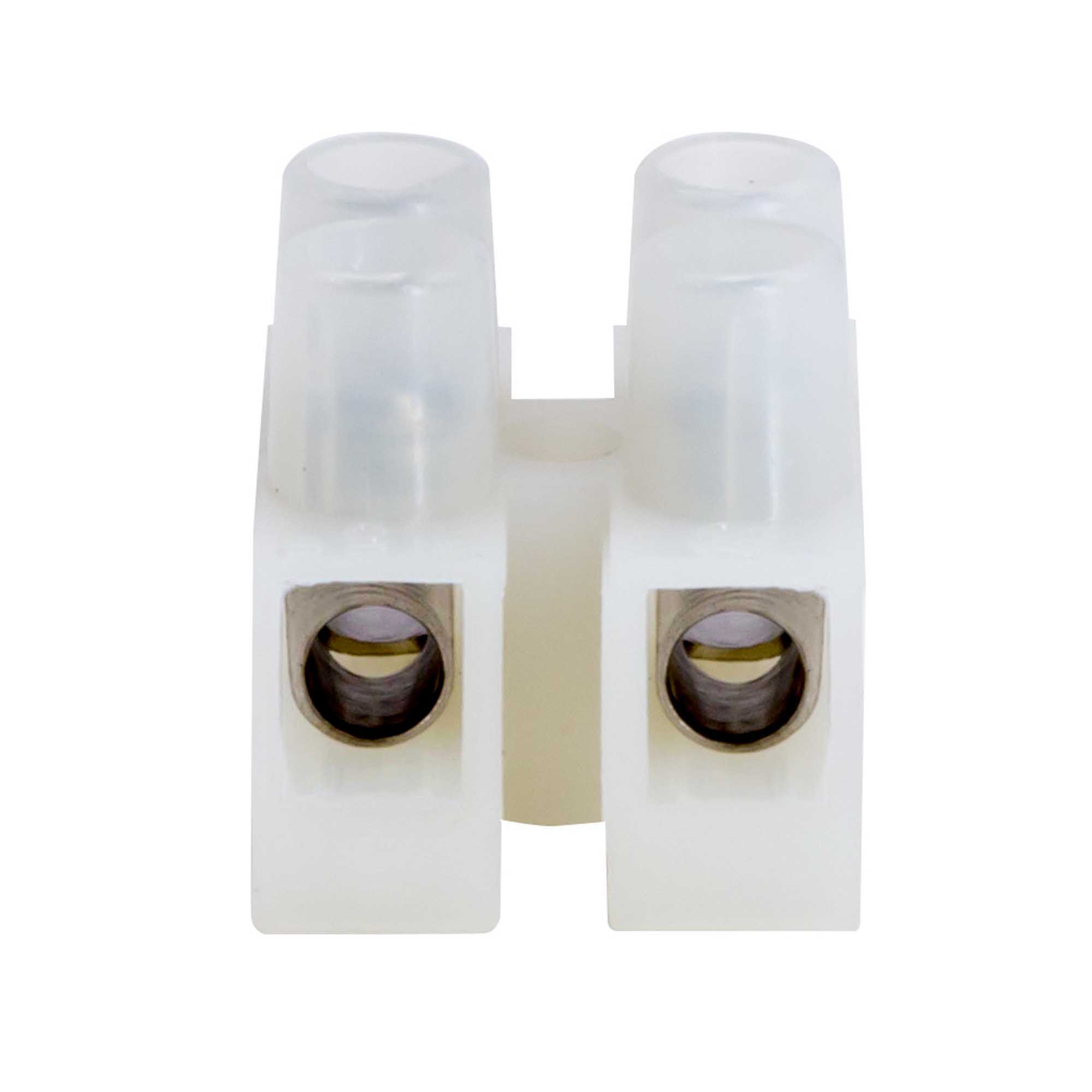

Terminal blocks polyamide 6.6, 2р,110°С,450V, 24A, 2,5mm²

Code: 43102NY
Terminal blocks polyamide 6.6, 2р,110°С,450V, 24A, 2,5mm²
  • To ask a question
Mounting method Direct mounting
Colour White
Nominal rated voltage, V 450
Number of poles 2
Length, mm 15.75
Operation temperature, °C -40...110
Number of clamp positions per pole 2
Width/grid dimension, mm 8
Closing plate required No
Transparent No
Connectable conductor cross section multi-wired, mm² 2.5
Rated current In, A 24
Explosion-tested version 'Ex e' No
Inflammability class of insulation material acc. with UL94 Other
Type of electrical connection 1 Screw connection
Type of electrical connection 2 Screw connection
Material insulation body Polyamide (PA)
Connection position Sideways
Product type Screw terminal blocks
Drawings
Seria Name Eplan
Terminal blocks - "Quadro"
