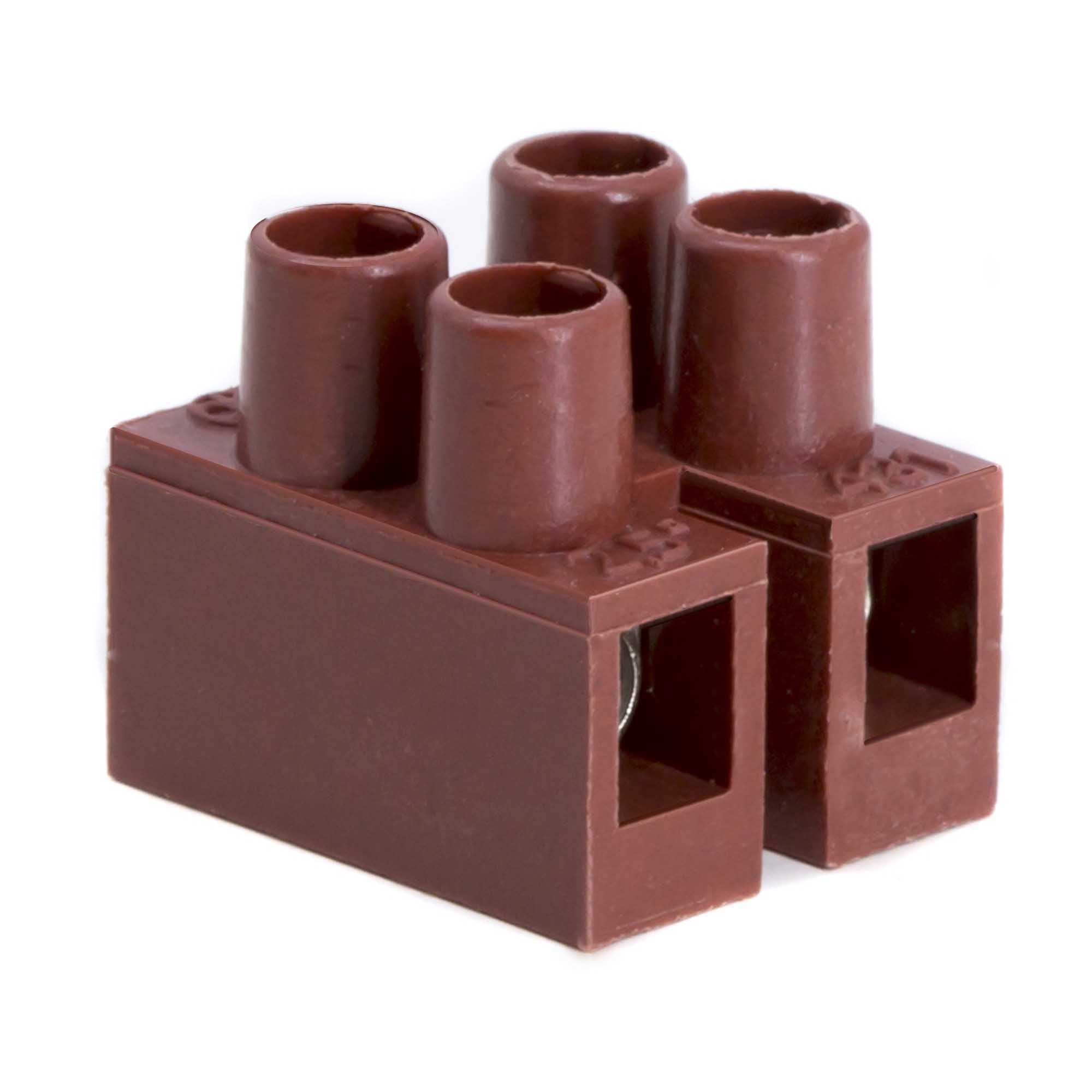

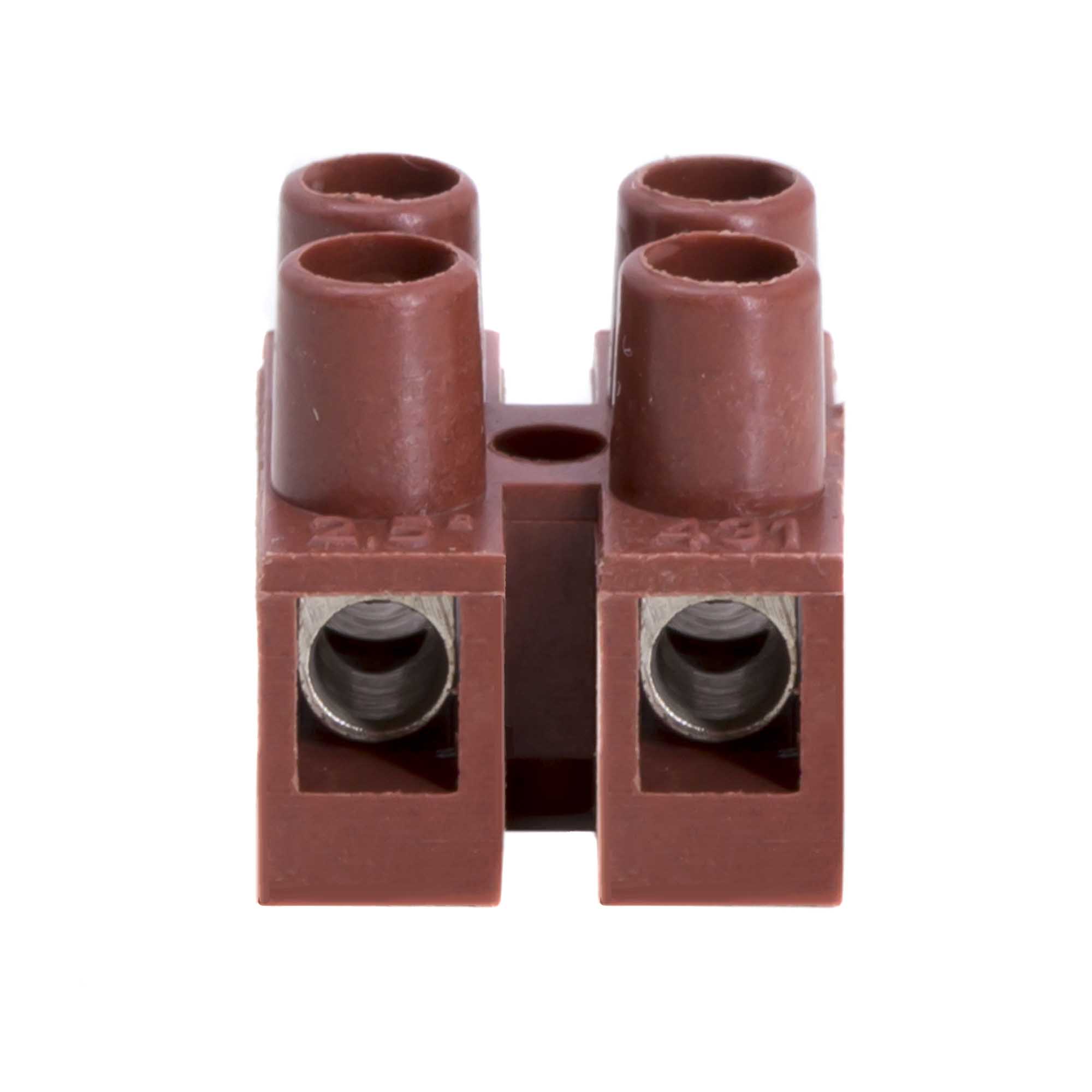

Terminal blocks fiberglass, 2р,150°С,450V, 24A, 2,5mm²

Code: 43102FV
Terminal blocks fiberglass, 2р,150°С,450V, 24A, 2,5mm²
  • To ask a question
Mounting method Direct mounting
Colour Red
Nominal rated voltage, V 450
Number of poles 2
Length, mm 15.75
Operation temperature, °C -40...150
Number of clamp positions per pole 2
Width/grid dimension, mm 8
Closing plate required No
Transparent No
Connectable conductor cross section multi-wired, mm² 2.5
Rated current In, A 24
Explosion-tested version 'Ex e' No
Inflammability class of insulation material acc. with UL94 Other
Type of electrical connection 1 Screw connection
Type of electrical connection 2 Screw connection
Material insulation body Fiberglass
Connection position Sideways
Product type Screw terminal blocks
