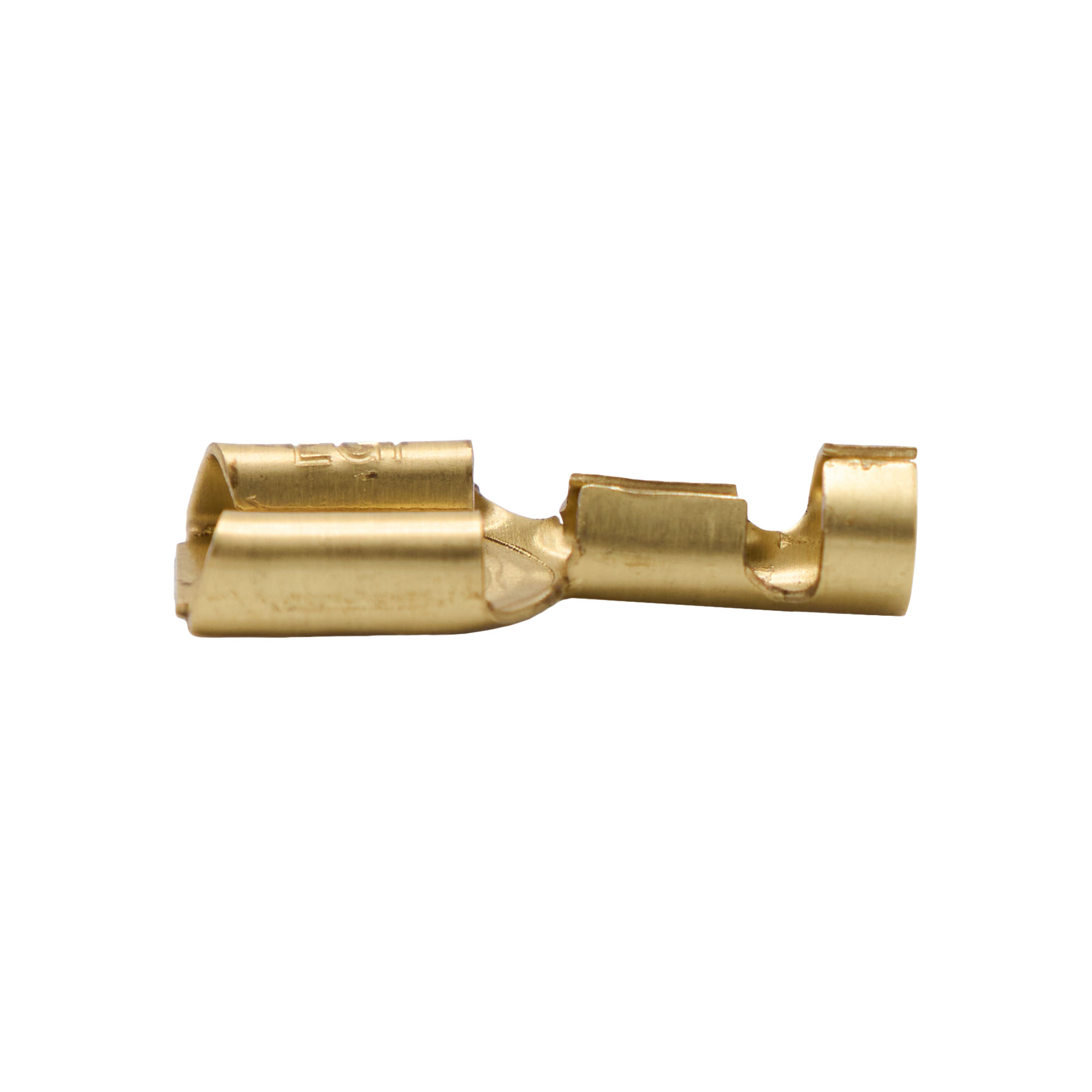

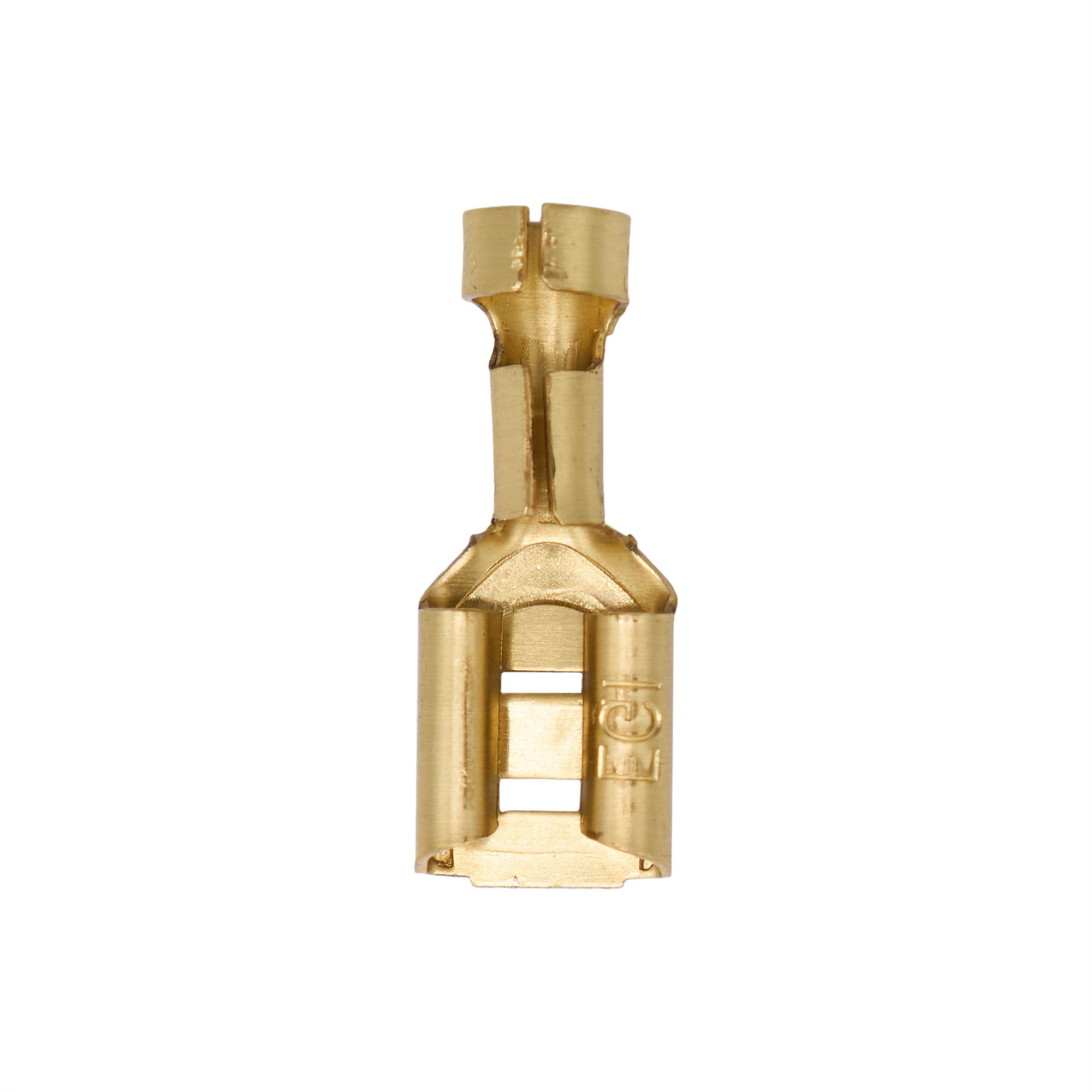

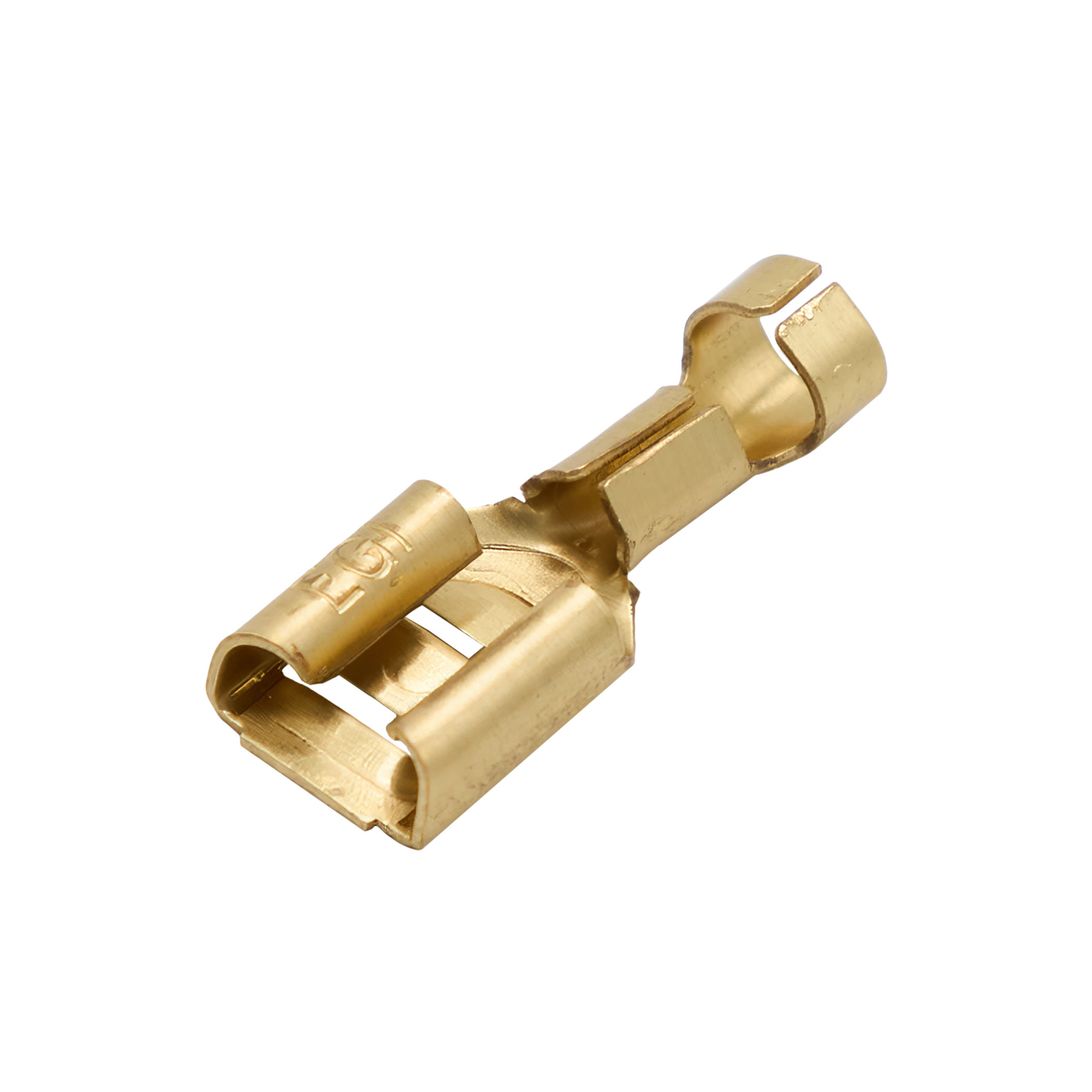

Female terminals 2,5-6mm² 6,3х0,8mm

Code: 2C02L
Female terminals 2,5-6mm² 6,3х0,8mm
Female terminals 2,5-6mm² 6,3х0,8mm

Female terminals 2,5-6mm² 6,3х0,8mm

Code: 2C02L
Material Brass
Model Bushing
Insulation Not isolated
Colour insulation Not applicable
Plug dimensions Flat 6.3x0.8 mm
Nominal cross section, mm² 2.5...6
Material insulation Not applicable
Insulation Not isolated
Flange shape Socket
Product type Non insulated terminals
Accessories
Drawings
Seria Name Eplan
Cable terminals -"Quadro"
The System "Quadro"
RAR
27.23 Mb
Certificates
Name Document
Quadro_ Exemption Letter for shrink tubes_DIN-rail, braid, frames and frames for EUI, drawing, accessories_1
PDF
1.30 MB
"Quadro"_cable lugs_EGI_1
PDF
4.29 MB
Declaration of conformity to TR TS 004/2011 for pre-insulated spade terminals
PDF
1.36 MB
Declaration of conformity to TR TS 004/2011 for pre-insulated spade terminals_1
PDF
2.65 MB
