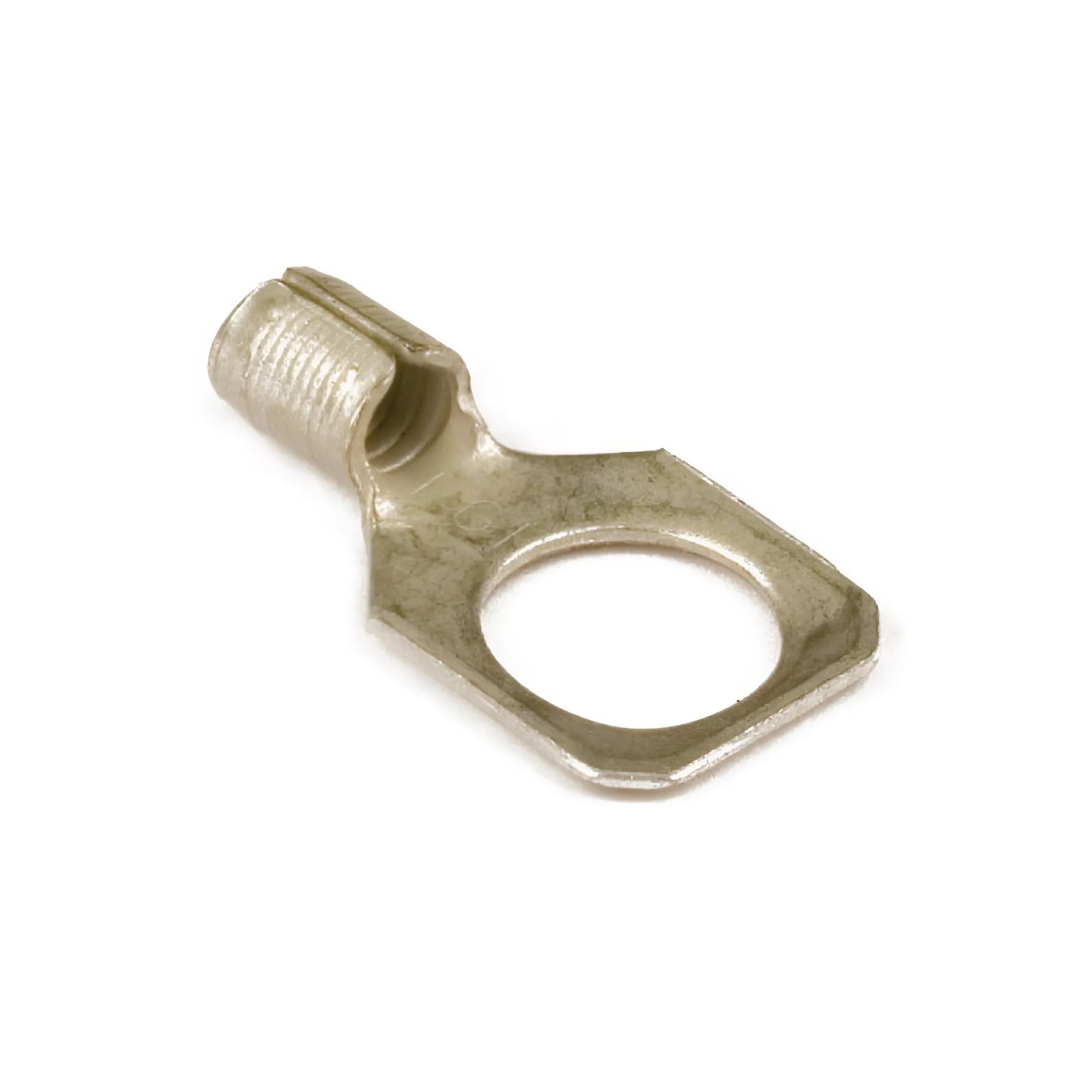

Ring terminals, 1,5-2,5mm² 8,2mm

Code: 2B8
Ring terminals, 1,5-2,5mm² 8,2mm
Ring terminals, 1,5-2,5mm² 8,2mm

Ring terminals, 1,5-2,5mm² 8,2mm

Code: 2B8
Surface protection Tinned
Flange shape Ring shape
Material Copper
Nominal cross section, mm² 1.5...2.5
Colour insulation Grey
Insulation Not isolated
Flange shape Ring shape
Product type Non insulated terminals
Accessories
Drawings
Seria Name Eplan
Cable terminals -"Quadro"
The System "Quadro"
RAR
27.23 Mb
Certificates
Name Document
Quadro_ Exemption Letter for shrink tubes_DIN-rail, braid, frames and frames for EUI, drawing, accessories_1
PDF
1.30 MB
"Quadro"_cable lugs_EGI_1
PDF
4.29 MB
Declaration of conformity to TR TS 004/2011 for pre-insulated spade terminals
PDF
1.36 MB
Declaration of conformity to TR TS 004/2011 for pre-insulated spade terminals_1
PDF
2.65 MB
Declaration of conformity for pre-insulated spade terminals
PDF
1.89 MB
