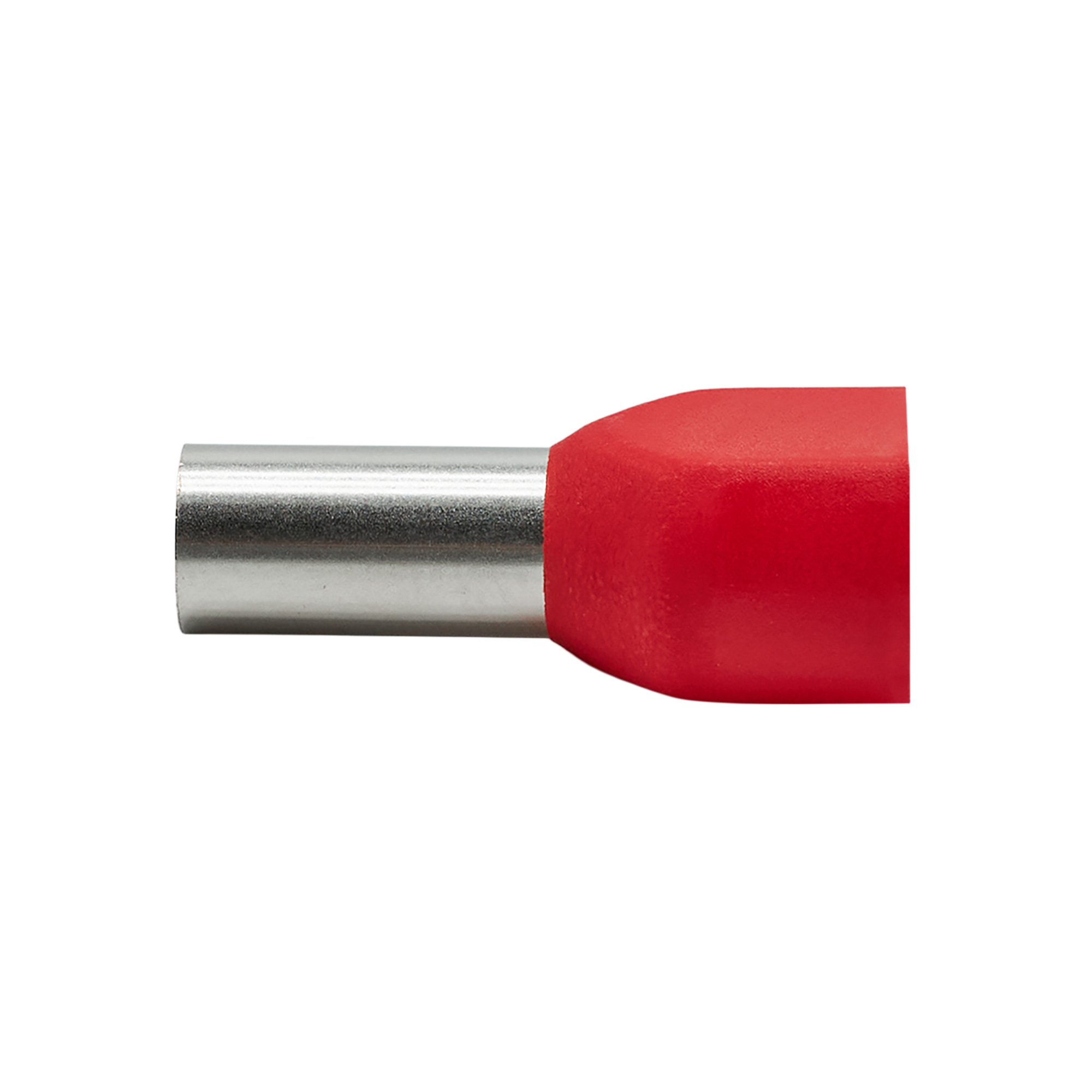

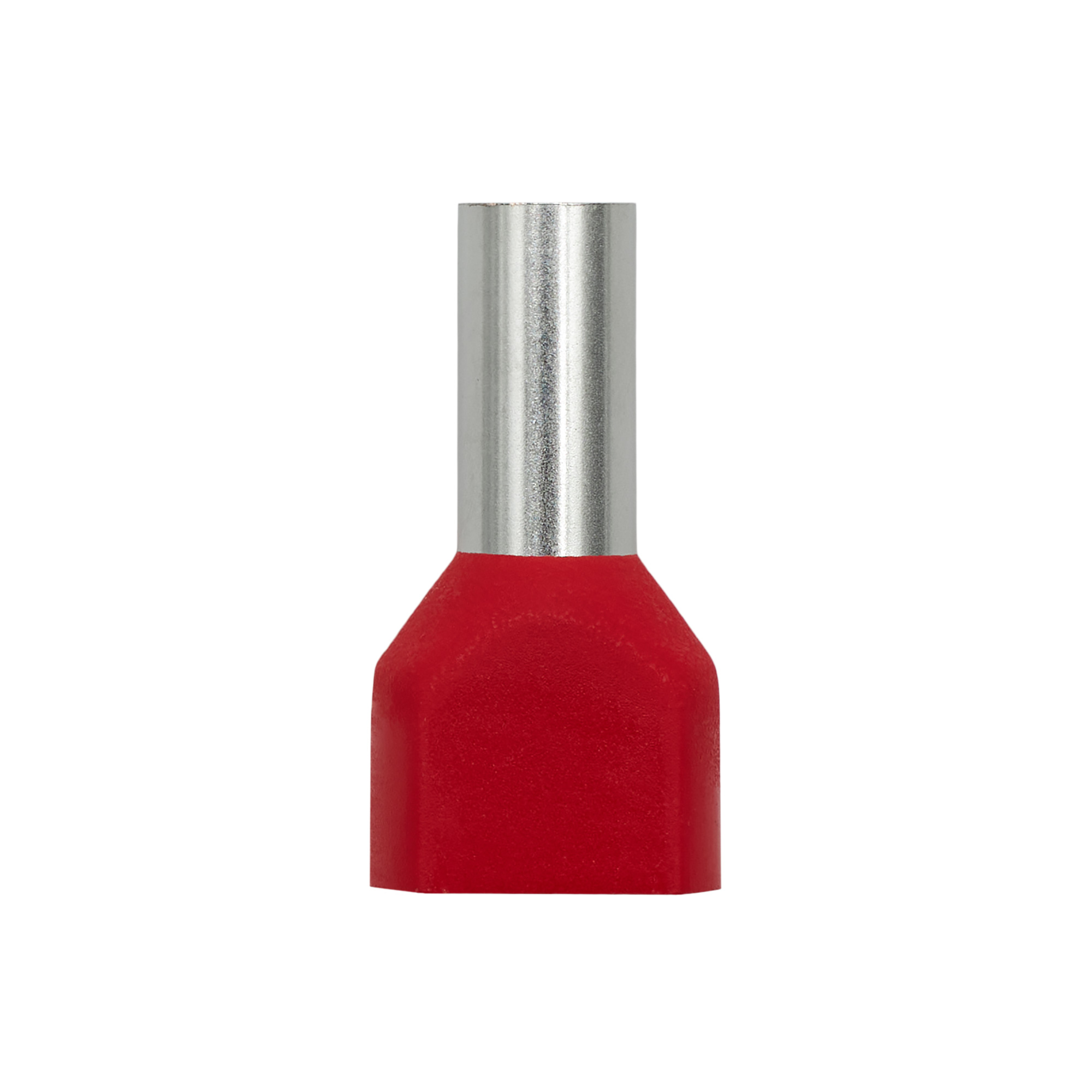

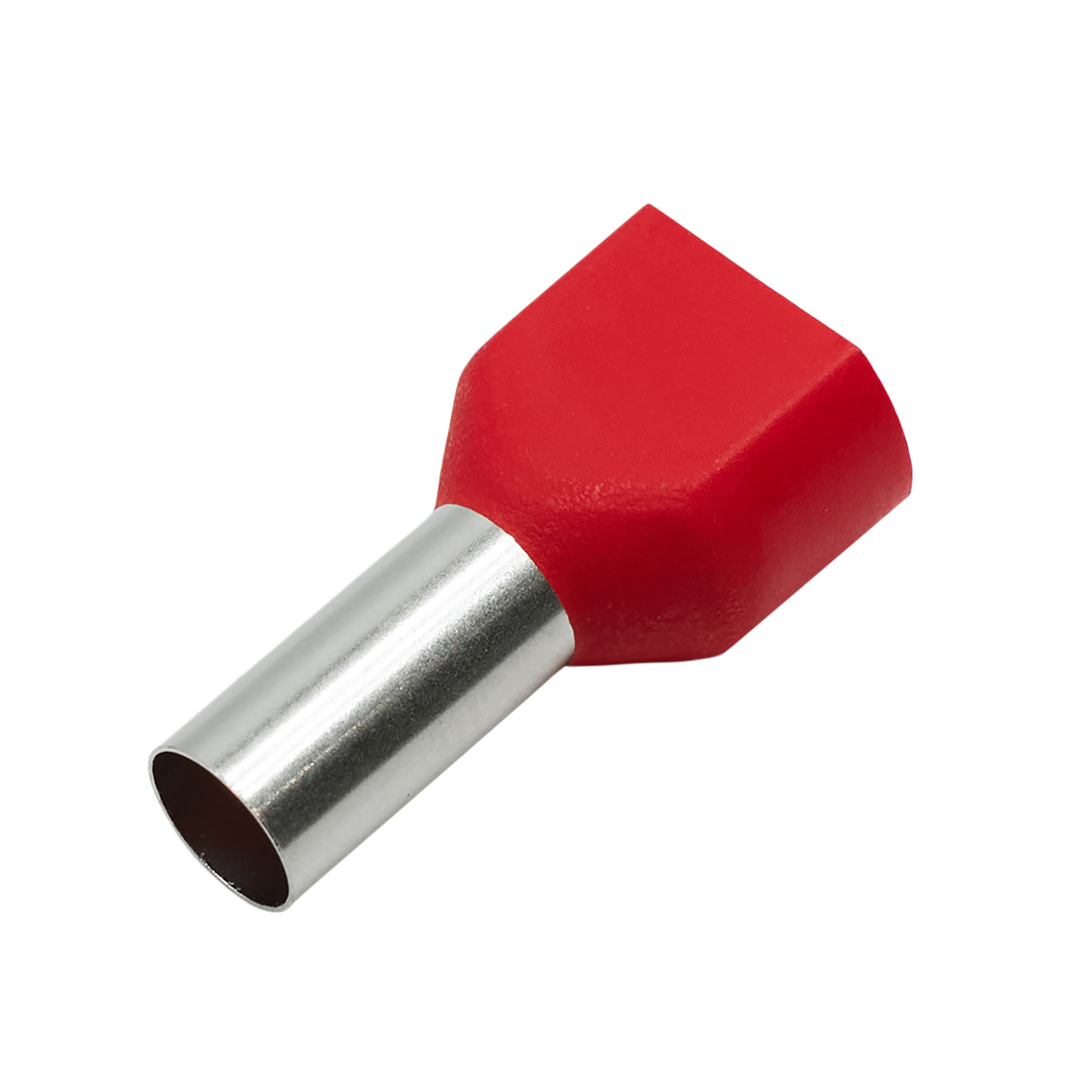

Insulated wire end ferrule for cable cross section 10 sq.mm, contact length 14 mm, red
Code:
IFD2-10-14RD
Code:
IFD2-10-14RD
| Colour | Red |
| Sleeve length, mm | 14 |
| Insulated | Yes |
| Halogen free | Yes |
| Surface protection | Tinned |
| Construction type | Twin cable end sleeve |
| Nominal cross section, mm² | 10 |
| For cables resistant to short circuit | No |
| Reel/roll packaging | No |
| Material | Copper |
| With identification flag | No |
| Material insulation | Polypropylene (PP) |
| Constructive execution | Double tip |
