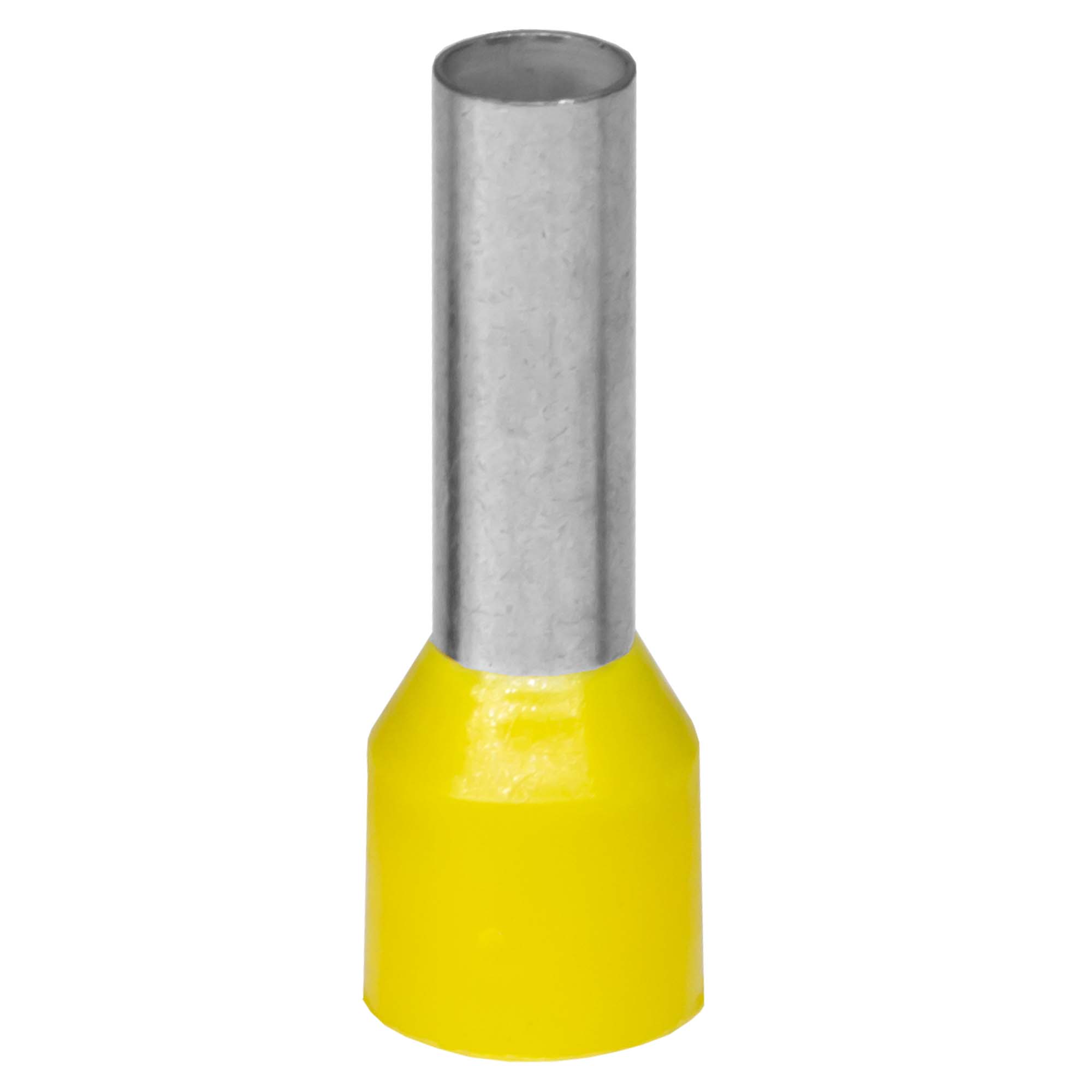

Insulated wire end ferrule for cable cross section 6sq.mm, contact length 18mm, yellow
Code: IF6-18YW
Insulated wire end ferrule for cable cross section 6sq.mm, contact length 18mm, yellow
Code: IF6-18YW
| Colour | Yellow |
| Sleeve length, mm | 18 |
| Insulated | Yes |
| Halogen free | Yes |
| Surface protection | Tinned |
| Construction type | Standard |
| Nominal cross section, mm² | 6 |
| For cables resistant to short circuit | Yes |
| Reel/roll packaging | Yes |
| Material | Copper |
| With identification flag | No |
| Material insulation | Polypropylene (PP) |
| AWG size | 10 |
Drawings
| Seria | Name | Eplan |
|---|---|---|
|
Cable terminals -"Quadro"
|
