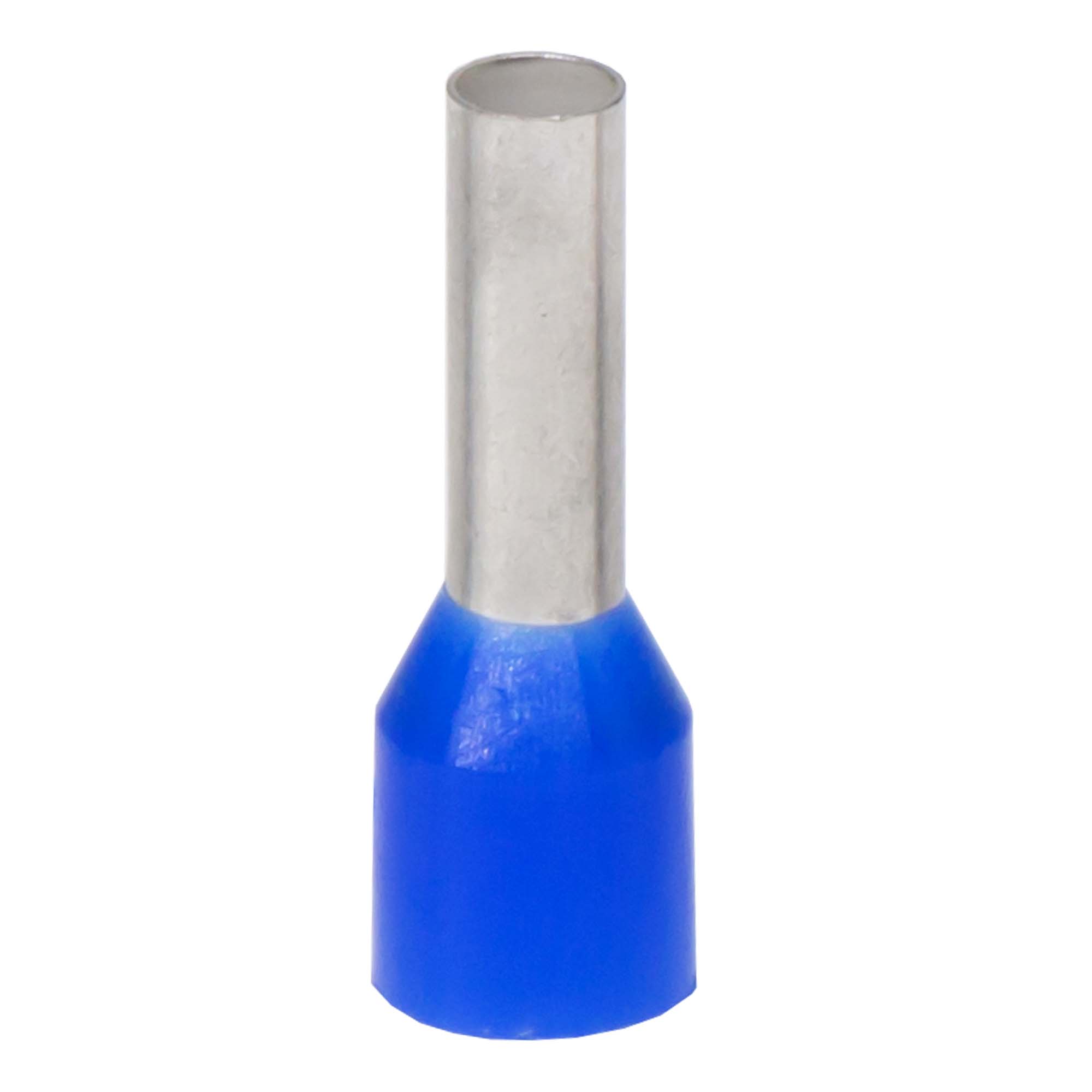

Insulated wire end ferrule for cable cross section 2,5sq.mm, contact length 12mm, blue
Code: IF2.5-12BL
Insulated wire end ferrule for cable cross section 2,5sq.mm, contact length 12mm, blue
Code: IF2.5-12BL
| Colour | Blue |
| Sleeve length, mm | 12 |
| Insulated | Yes |
| Halogen free | Yes |
| Surface protection | Tinned |
| Construction type | Standard |
| Nominal cross section, mm² | 2.5 |
| For cables resistant to short circuit | Yes |
| Reel/roll packaging | Yes |
| Material | Copper |
| With identification flag | No |
| Material insulation | Polypropylene (PP) |
| AWG size | 14 |
Drawings
| Seria | Name | Eplan |
|---|---|---|
|
Cable terminals -"Quadro"
|
