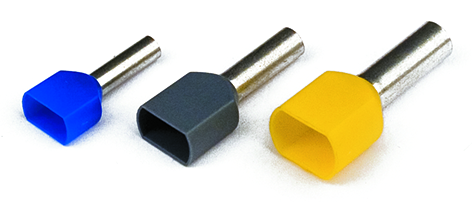

Insulated Twin Ferrules. 2,50 sq.mm. L-13 mm.

Code: 2ART5062GRL

Construction type	Twin cable end sleeve
For cables resistant to short circuit	No
Bandware	No
Insulation material	Polypropylene
With identification flag	No
