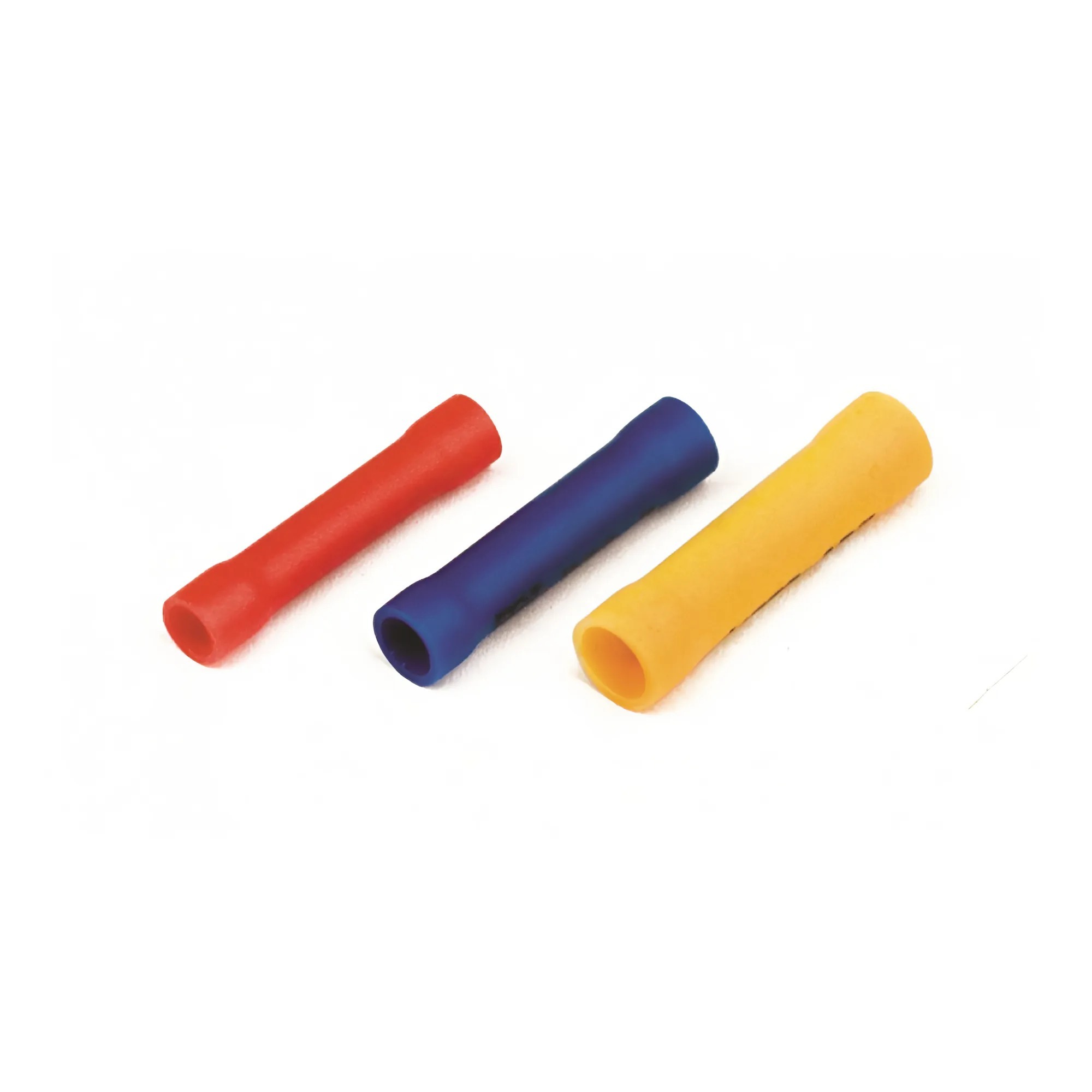

Butt connectors copper tinned 6-10mm²

Code: 2D
Butt connectors copper tinned 6-10mm²
Butt connectors copper tinned 6-10mm²
Surface protection Tinned
Material Copper
Oil stop/centre bar No
For pull protected connections No
Model Standard version
Type of connection Percussion connector
Insulation PVC
Colour insulation Red
Number of branches 1
Nominal cross section 6…10
Suitable for fine strand conductors Yes
Suitable for flat conductors No
Suitable for high temperatures (to 650 No
Suitable for insulated varnish No
Suitable for solid cores Yes
Useful for stranded conductors Yes
Suitable for round conductors Yes
Sleeve form Long
Drawings
Seria Name Eplan
Quadro - cable terminals
The System "Quadro"
RAR
27.23 MB
Certificates
Name Document
Quadro_ Exemption Letter for shrink tubes_DIN-rail, braid, frames and frames for EUI, drawing, accessories_1
PDF
1.30 MB
"Quadro"_cable lugs_EGI_1
PDF
4.29 MB
Declaration of conformity to TR TS 004/2011 for pre-insulated spade terminals
PDF
1.36 MB
Declaration of conformity to TR TS 004/2011 for pre-insulated spade terminals_1
PDF
2.65 MB
