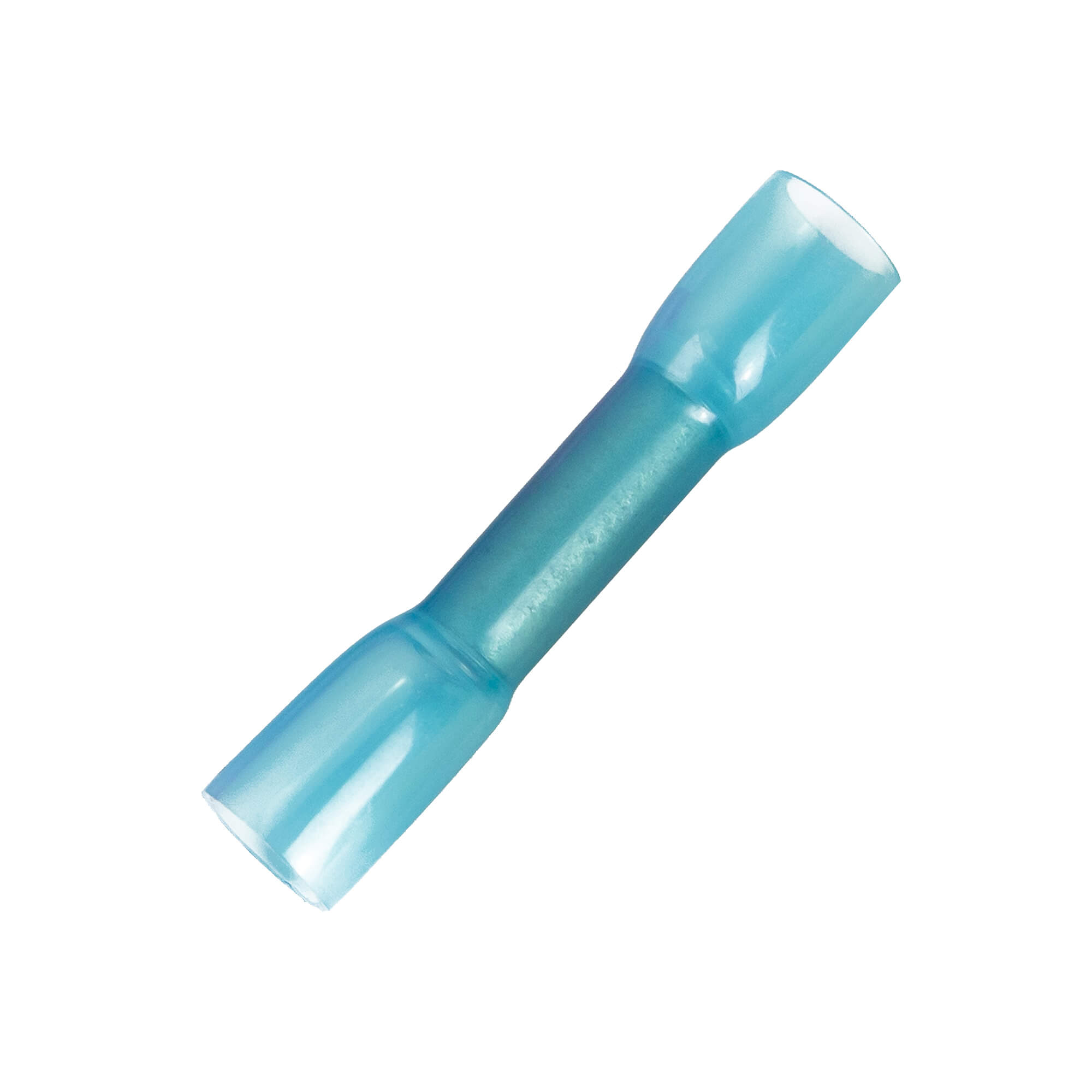

Connector, TST 1,5-2,5 sq.mm
Code: 2B20P-TST
Connector, TST 1,5-2,5 sq.mm
Code: 2B20P-TST
Type of connection | End connector |
Surface protection | Tinned |
Insulation | Shrink insulation PE |
Oil stop/centre bar | No |
For pull protected connections | No |
Voltage level | Up to 600 V |
Colour insulation | Blue |
Material | Copper |
Number of branches | 1 |
AWG-range | 14 |
Nominal cross section, mm² | 1.5...2.5 |
Suitable for fine strand conductors | Yes |
Suitable for high temperatures (to 650 °C) | No |
Suitable for insulated varnish | No |
Suitable for solid cores | Yes |
Useful for stranded conductors | Yes |
Suitable for round conductors | Yes |
Sleeve form | Long |
Nominal current, A | 27 |
Sleeve type | single |
