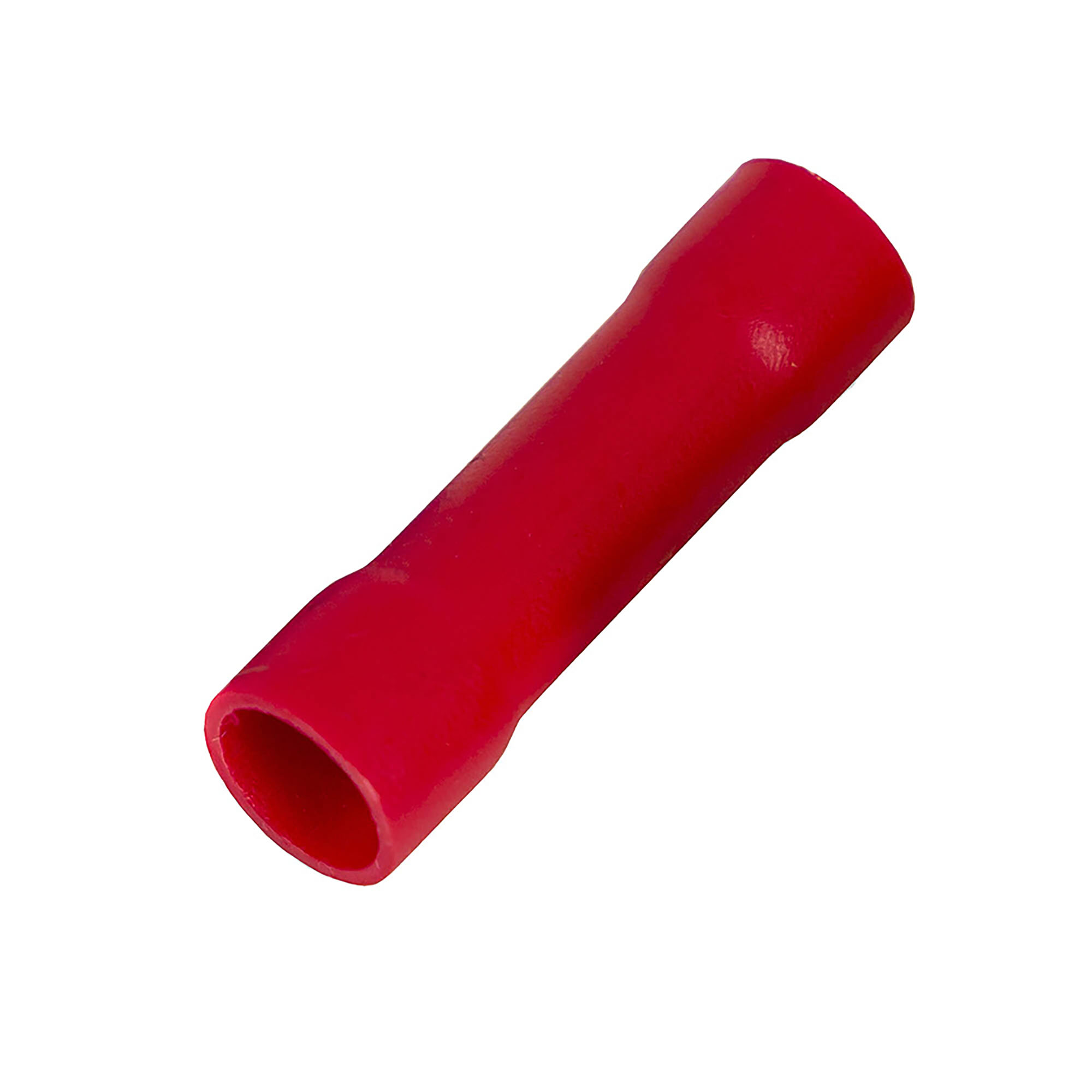

Butt connectors copper tinned 0,25-1,5mm²
Code: 2A20P
Butt connectors copper tinned 0,25-1,5mm²
Code: 2A20P
| Surface protection | Tinned |
| Material | Copper |
| Type of connection | End connector |
| Insulation | Polyvinyl chloride (PVC) |
| Oil stop/centre bar | No |
| For pull protected connections | No |
| Colour insulation | Red |
| Number of branches | 1 |
| Nominal cross section, mm² | 0.25...1.5 |
| Suitable for fine strand conductors | Yes |
| Suitable for high temperatures (to 650 °C) | No |
| Suitable for insulated varnish | No |
| Suitable for solid cores | Yes |
| Useful for stranded conductors | Yes |
| Suitable for round conductors | Yes |
| Sleeve form | Long |
| Voltage level | Up to 600 V |
| AWG-range | 16 |
| Nominal current, A | 19 |
| Insulation | Fully isolated |
| Flange shape | Cylindrical |
| Product type | Pre-insulated terminals |
| Sleeve type | single |
