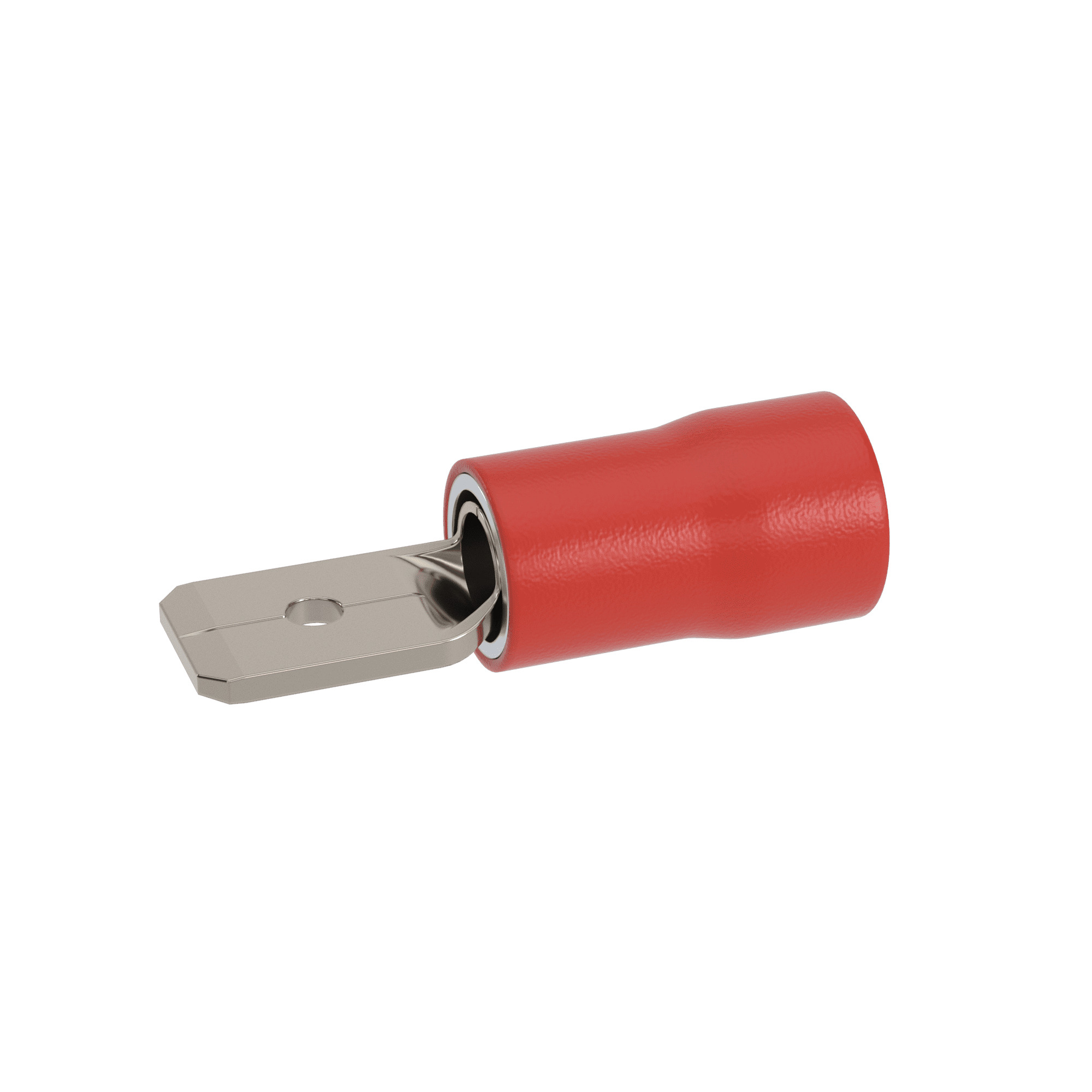

Insulated flat connector male 4.8x0.8 for cable to 1.5sq.mm

Code: IFCM-1.5-4.8-8
Insulated flat connector male 4.8x0.8 for cable to 1.5sq.mm
Insulated flat connector male 4.8x0.8 for cable to 1.5sq.mm
Code: IFCM-1.5-4.8-8
  • To ask a question
  • Characteristics
  • Analogs
  • The accompanying goods
  • Drawings
  • Certificates
  • Promo
  • Viewed items
Model Plug
Insulation Partially isolated
Max. current (Imax), A 10
Colour insulation Red
Plug dimensions Flat 4.8x0.8 mm
Material Copper
Nominal cross section, mm² 0.5...1.5
Material insulation Polyvinyl chloride (PVC)
