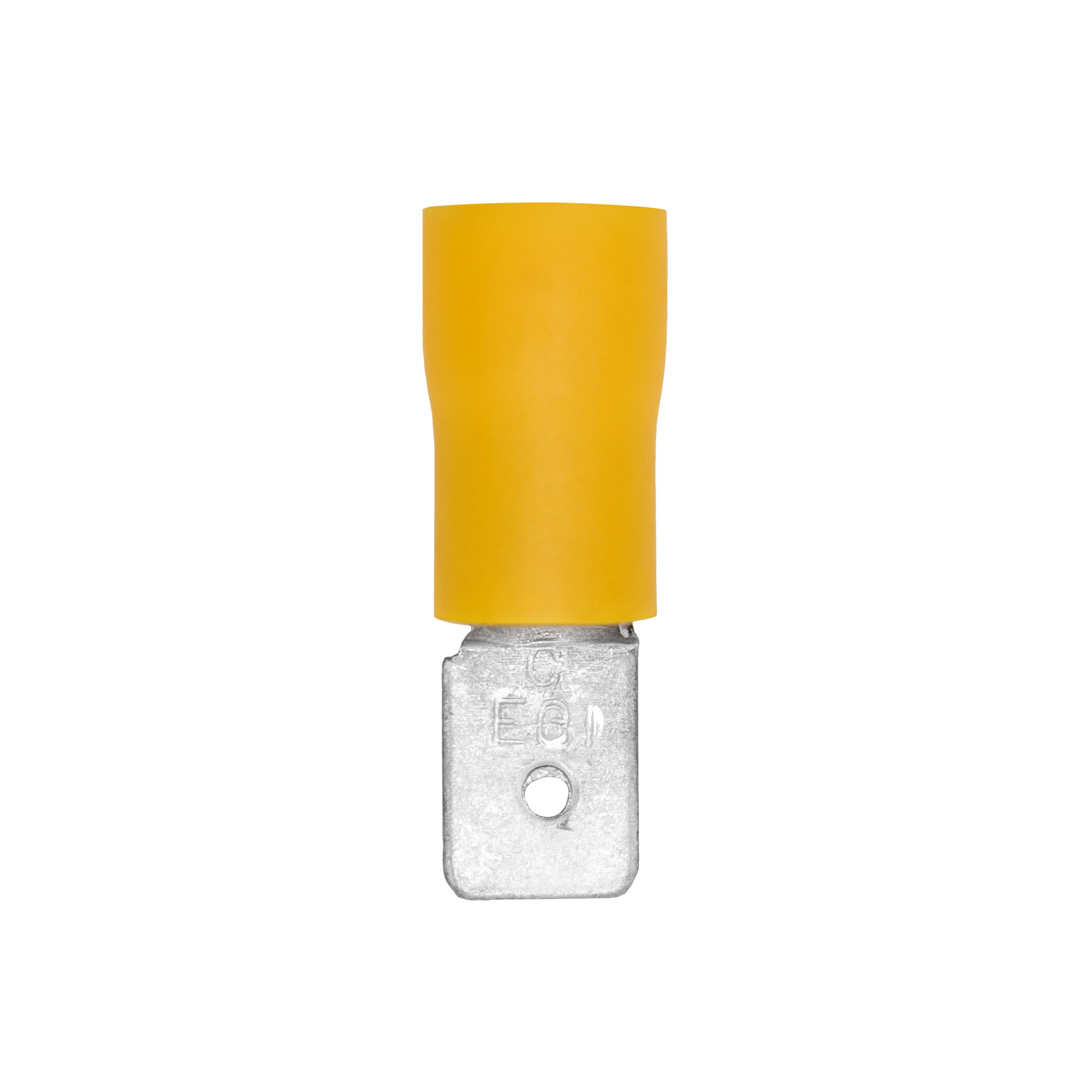

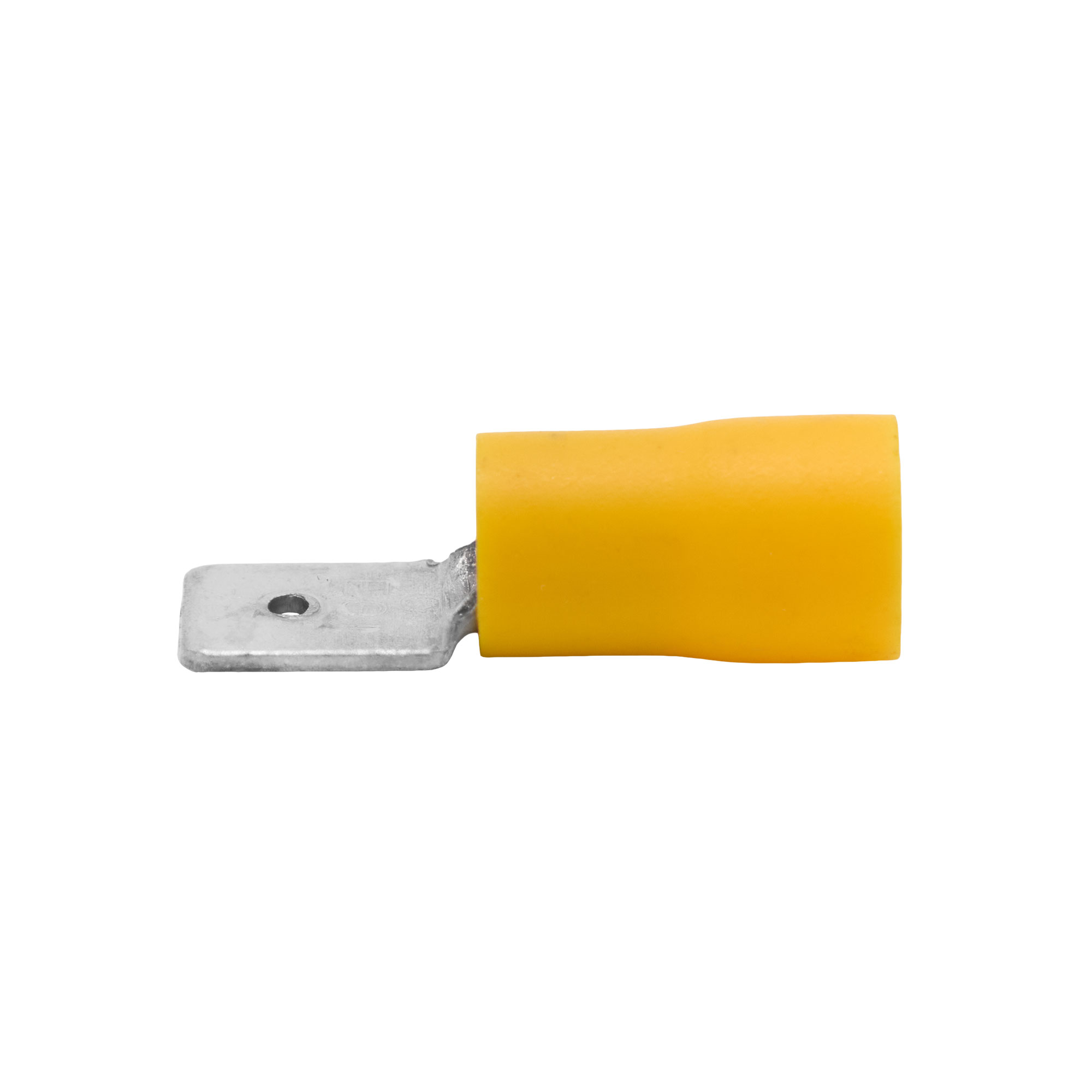

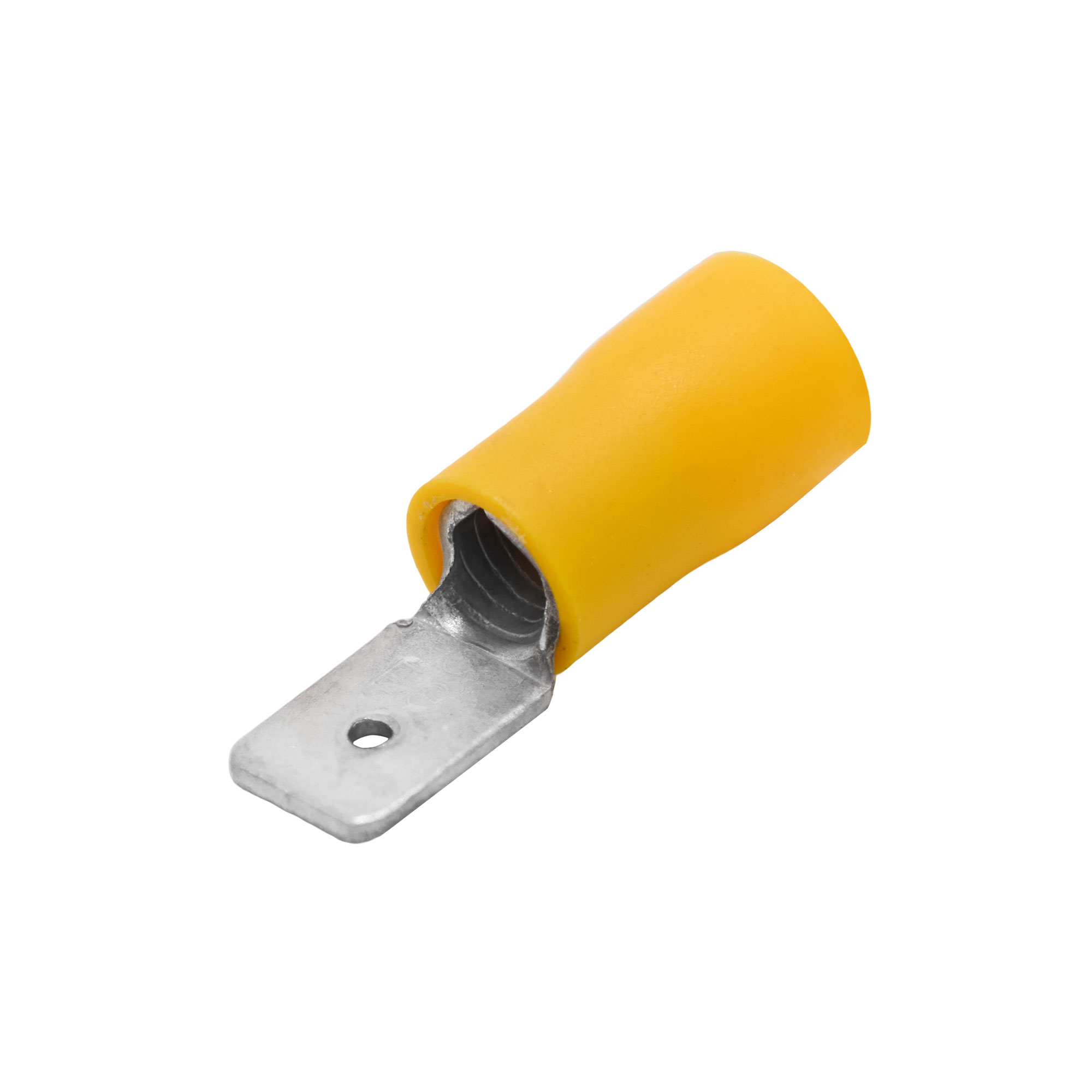

Pre-insulated male quick-connect terminals, 2,5-6mm² 6,3х0,8mm.
Code: 2C22P
Pre-insulated male quick-connect terminals, 2,5-6mm² 6,3х0,8mm.
Code: 2C22P
| Material | Copper |
| Insulation | Partially isolated |
| Colour insulation | Yellow |
| Plug dimensions | Flat 6.3x0.8 mm |
| Nominal cross section, mm² | 2.5...6 |
| Material insulation | Polyvinyl chloride (PVC) |
| Insulation | Partially isolated |
| Flange shape | Fork shape |
| Product type | Pre-insulated terminals |
| Sleeve type | single |
Accessories
Drawings
| Seria | Name | Eplan |
|---|---|---|
|
Cable terminals -"Quadro"
|
Certificates
| Name | Document |
|---|---|
