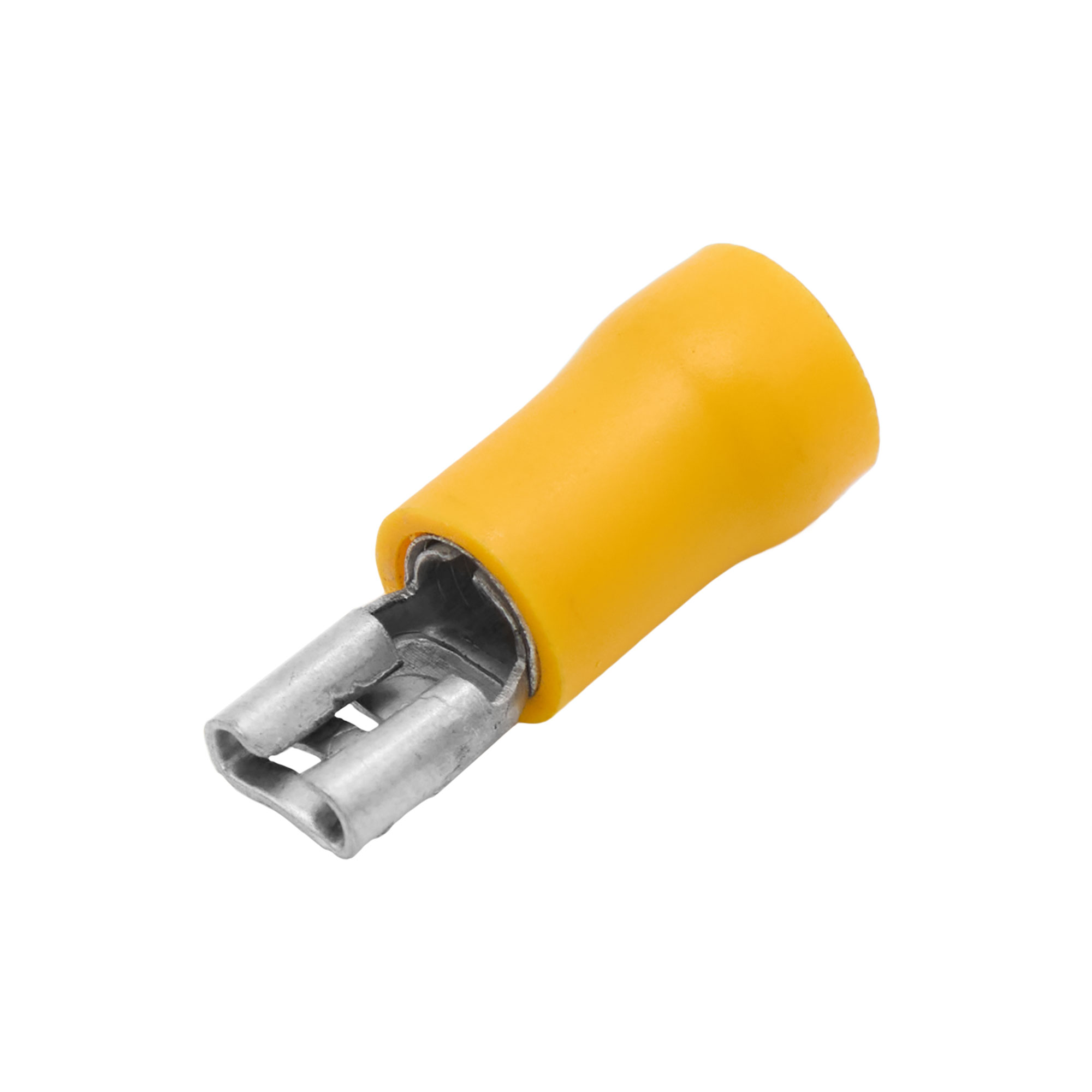

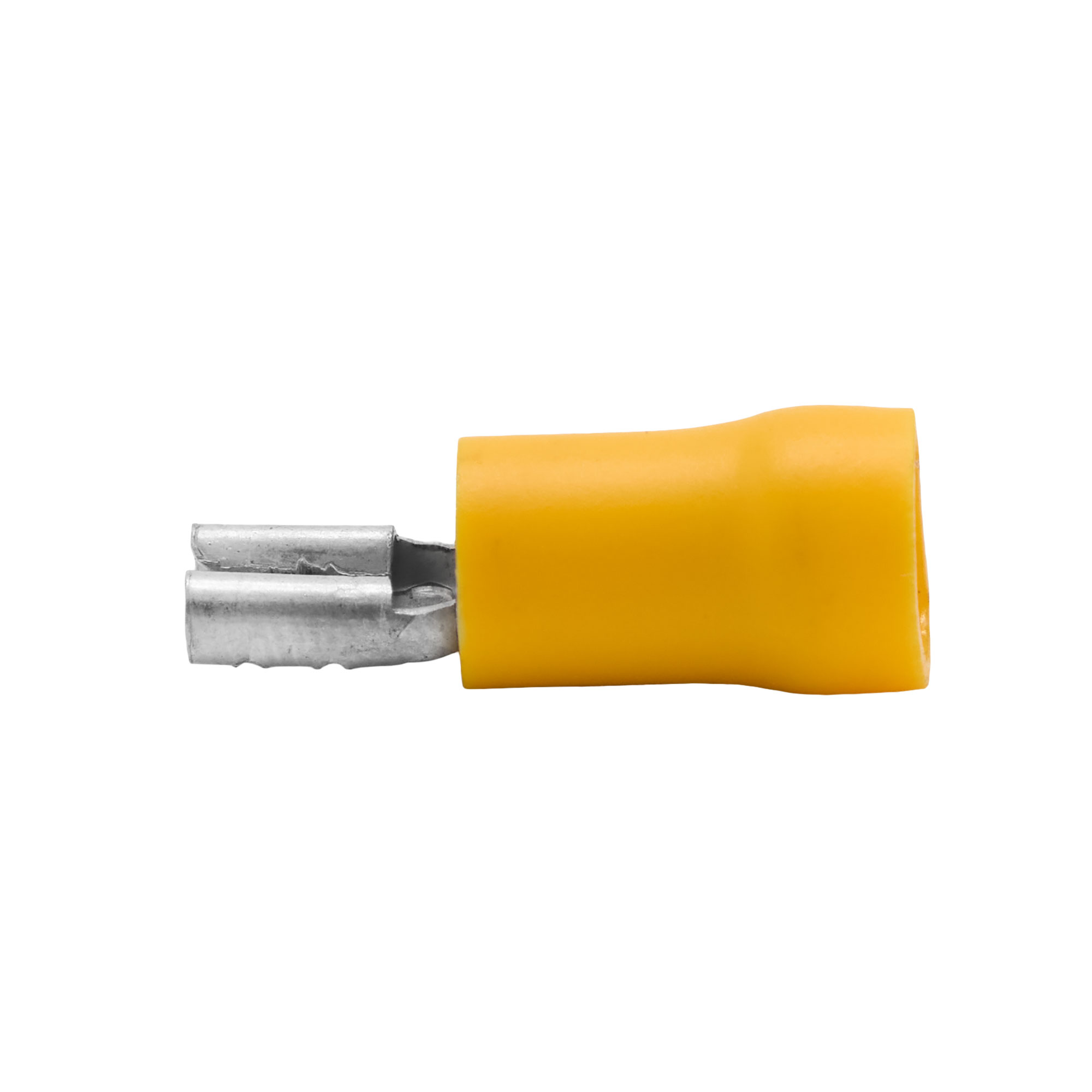

Pre-insulated female quick-connect terminals, 2,5-6mm² 9,9х1,1mm.
Code: 2C09P
Pre-insulated female quick-connect terminals, 2,5-6mm² 9,9х1,1mm.
Code: 2C09P
| Material | Copper |
| Model | Bushing |
| Insulation | Partially isolated |
| Colour insulation | Yellow |
| Plug dimensions | Flat 9.8x1.1 mm |
| Nominal cross section, mm² | 2.5...6 |
| Material insulation | Polyvinyl chloride (PVC) |
| Insulation | Partially isolated |
| Flange shape | Socket |
| Product type | Pre-insulated terminals |
| Sleeve type | single |
