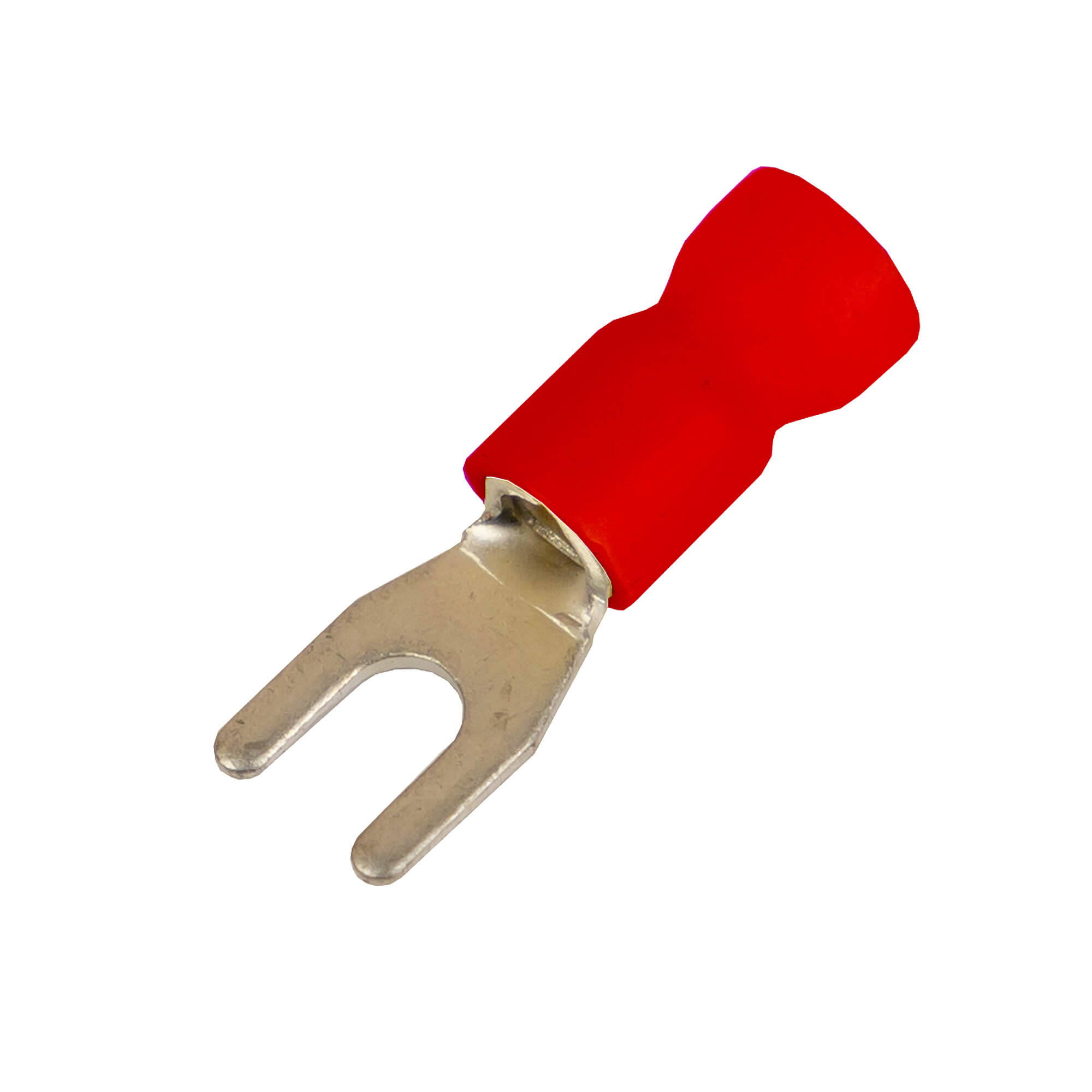

Fork-type cable lug,PVC, EasyEnter, 1,5 sq. d.4,3
Code: 2A14P-EE-PVC
Fork-type cable lug,PVC, EasyEnter, 1,5 sq. d.4,3
Code: 2A14P-EE-PVC
| Flange shape | Fork shape |
| Bolt dimension (metric) | 4 |
| Nominal cross section, mm² | 1.5...1.5 |
| According to DIN | Yes |
| Material | Copper |
| Surface protection | Tinned |
| Insulation | Polyvinyl chloride (PVC) |
| Max. current (Imax), A | 19 |
| For pull protected connections | Yes |
| Reel/roll packaging | Yes |
| AWG-range | 16...16 |
| Suitable for fine strand conductors | Yes |
| Suitable for flat conductors | Yes |
| Suitable for high temperatures (to 650 °C) | Yes |
| Suitable for insulated varnish | Yes |
| Suitable for solid cores | Yes |
| Useful for stranded conductors | Yes |
| Suitable for round conductors | Yes |
| Stud size (imperial) | 1/8 inch |
| Colour insulation | Grey |
| Sleeve type | single |
