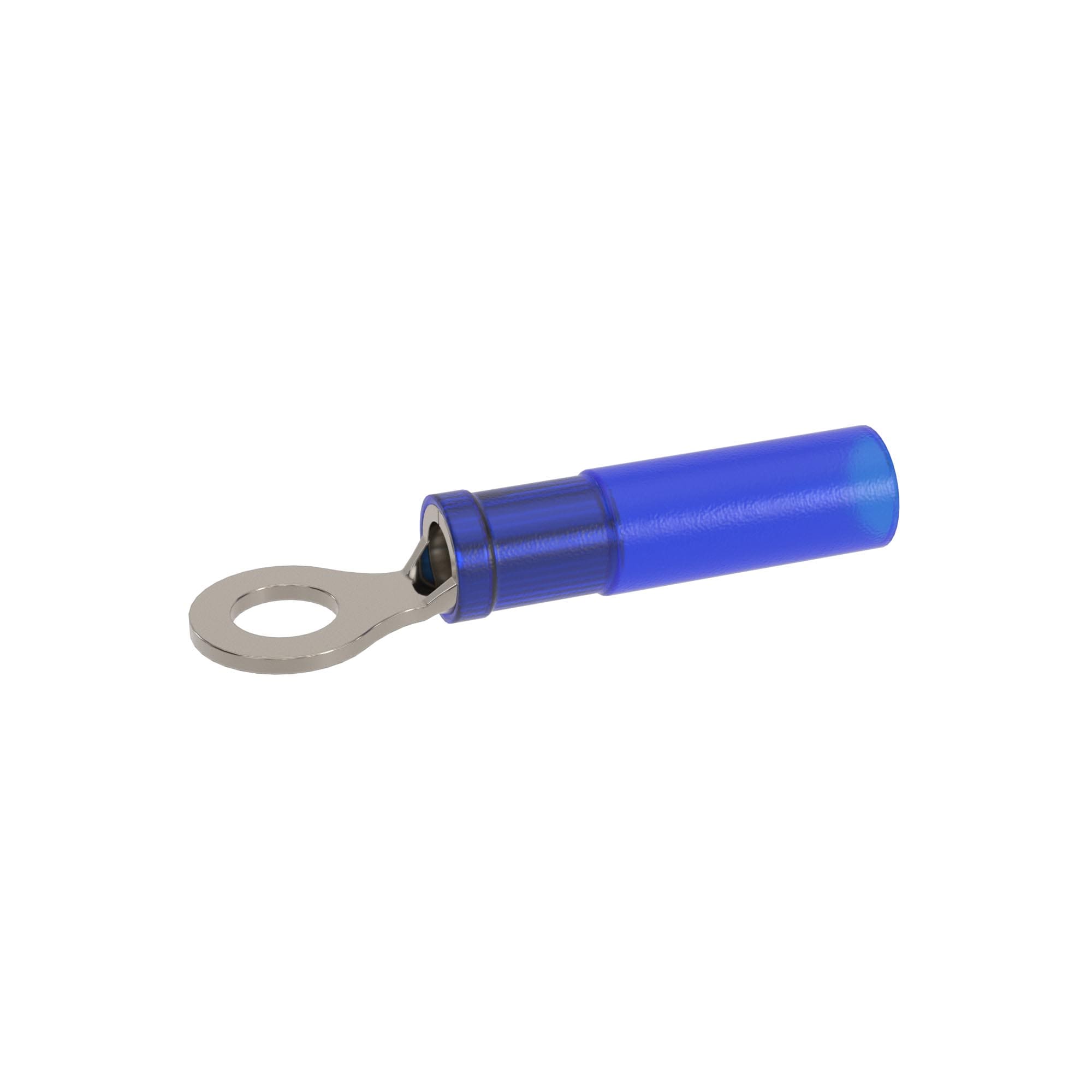

Ring cable lug with heat shrinkable insulation for cable 1.5-2.5sq.mm with hole M3.5
Code:
IRCL-2.5-3.5HS
Code:
IRCL-2.5-3.5HS
| Surface protection | Tinned |
| Insulation | Shrink insulation PE |
| Max. current (Imax), A | 27 |
| Flange shape | Ring shape |
| Colour insulation | Blue |
| Material | Copper |
| Bolt dimension (metric) | 3.5 |
| Nominal cross section, mm² | 1.5...2.5 |
| Suitable for fine strand conductors | Yes |
| Suitable for flat conductors | Yes |
| Suitable for high temperatures (to 650 °C) | Yes |
| Suitable for insulated varnish | Yes |
| Suitable for solid cores | Yes |
| Useful for stranded conductors | Yes |
| Suitable for round conductors | Yes |
| According to DIN | Yes |
| Insulated | Yes |
| Honest SIGN system. Commodity group | Radio‑electronic products |
| Russian Classification of Products by Economic Activities (OKPD 2) | 27.33.13.130 |
| Commodity Nomenclature of Foreign Economic Activity | 8536901000 |
