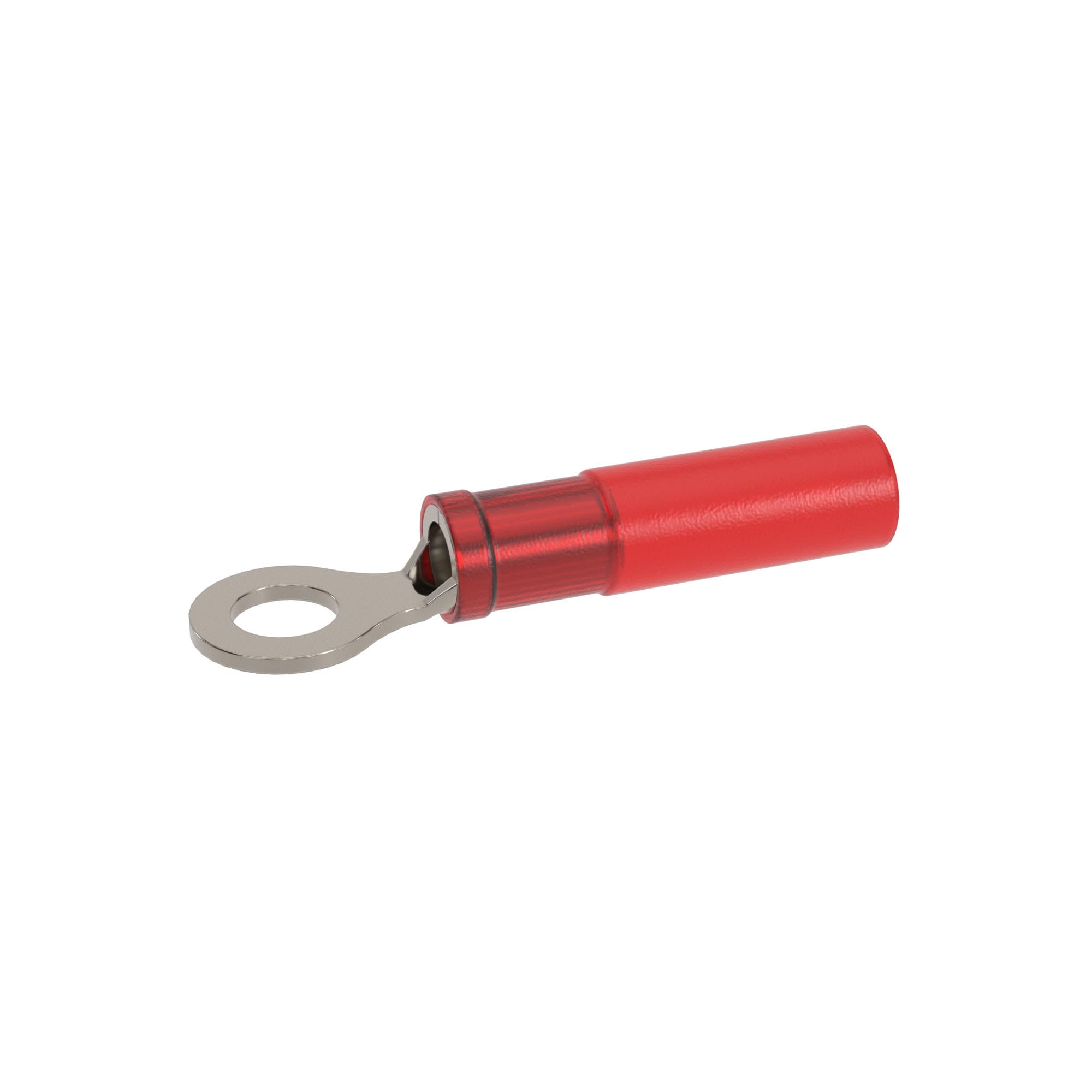

Ring cable lug with heat shrinkable insulation for cable 0.5-1.5sq.mm with hole M6
Code:
IRCL-1.5-6HS
Code:
IRCL-1.5-6HS
| Surface protection | Tinned |
| Insulation | Shrink insulation PE |
| Max. current (Imax), A | 19 |
| Flange shape | Ring shape |
| Colour insulation | Red |
| Material | Copper |
| Bolt dimension (metric) | 6 |
| Nominal cross section, mm² | 0.5...1.5 |
| Suitable for fine strand conductors | Yes |
| Suitable for flat conductors | Yes |
| Suitable for high temperatures (to 650 °C) | Yes |
| Suitable for insulated varnish | Yes |
| Suitable for solid cores | Yes |
| Useful for stranded conductors | Yes |
| Suitable for round conductors | Yes |
| According to DIN | Yes |
| Insulated | Yes |
