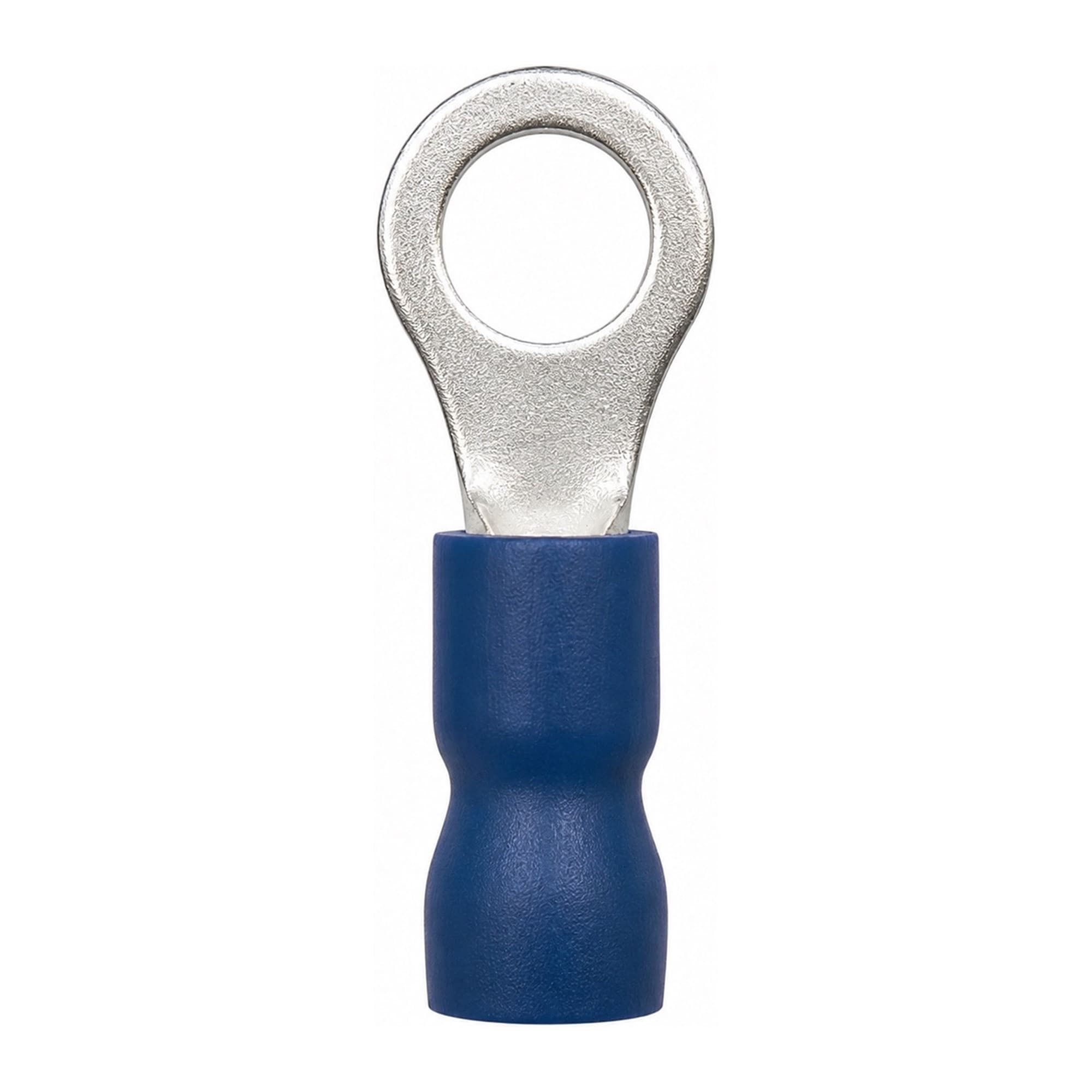

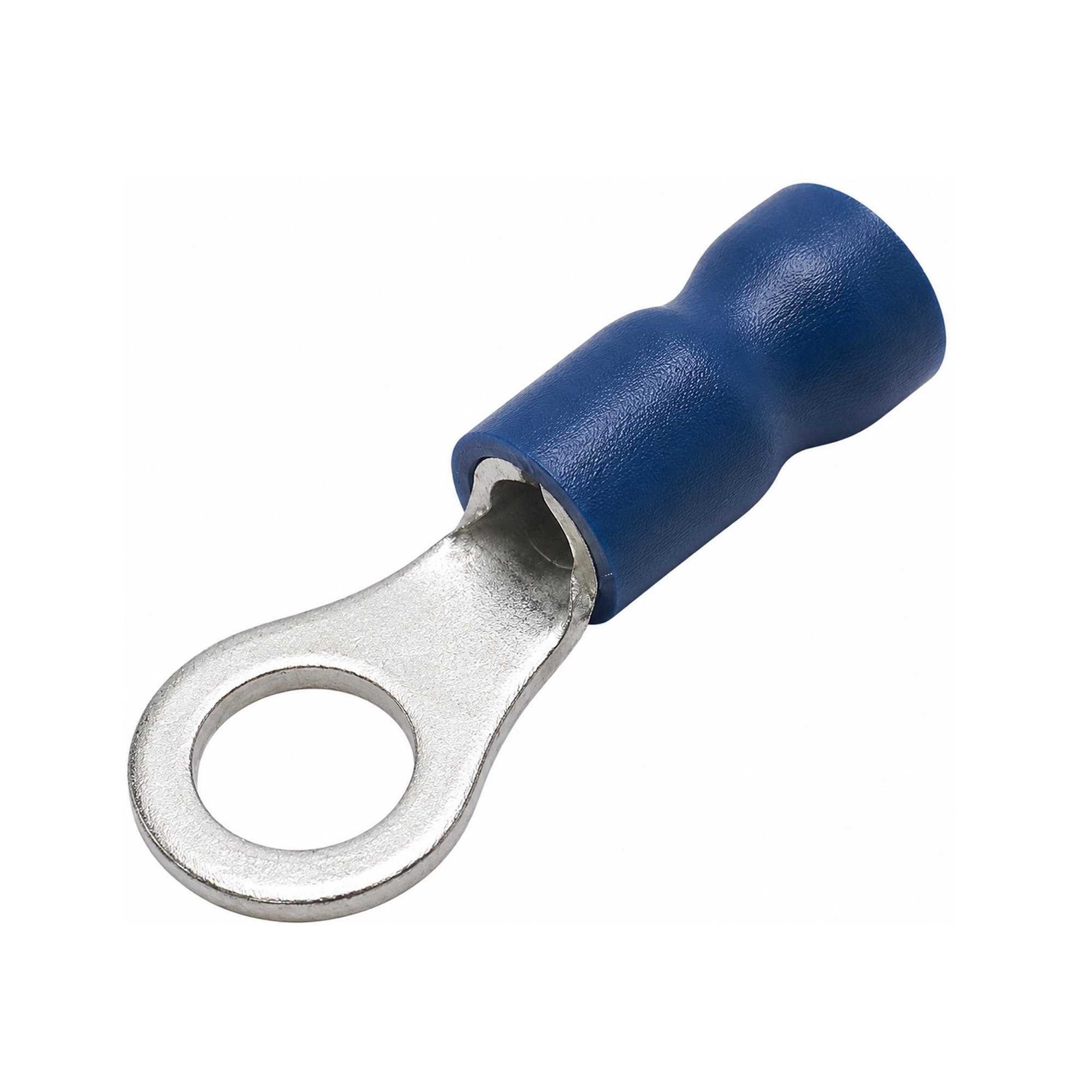

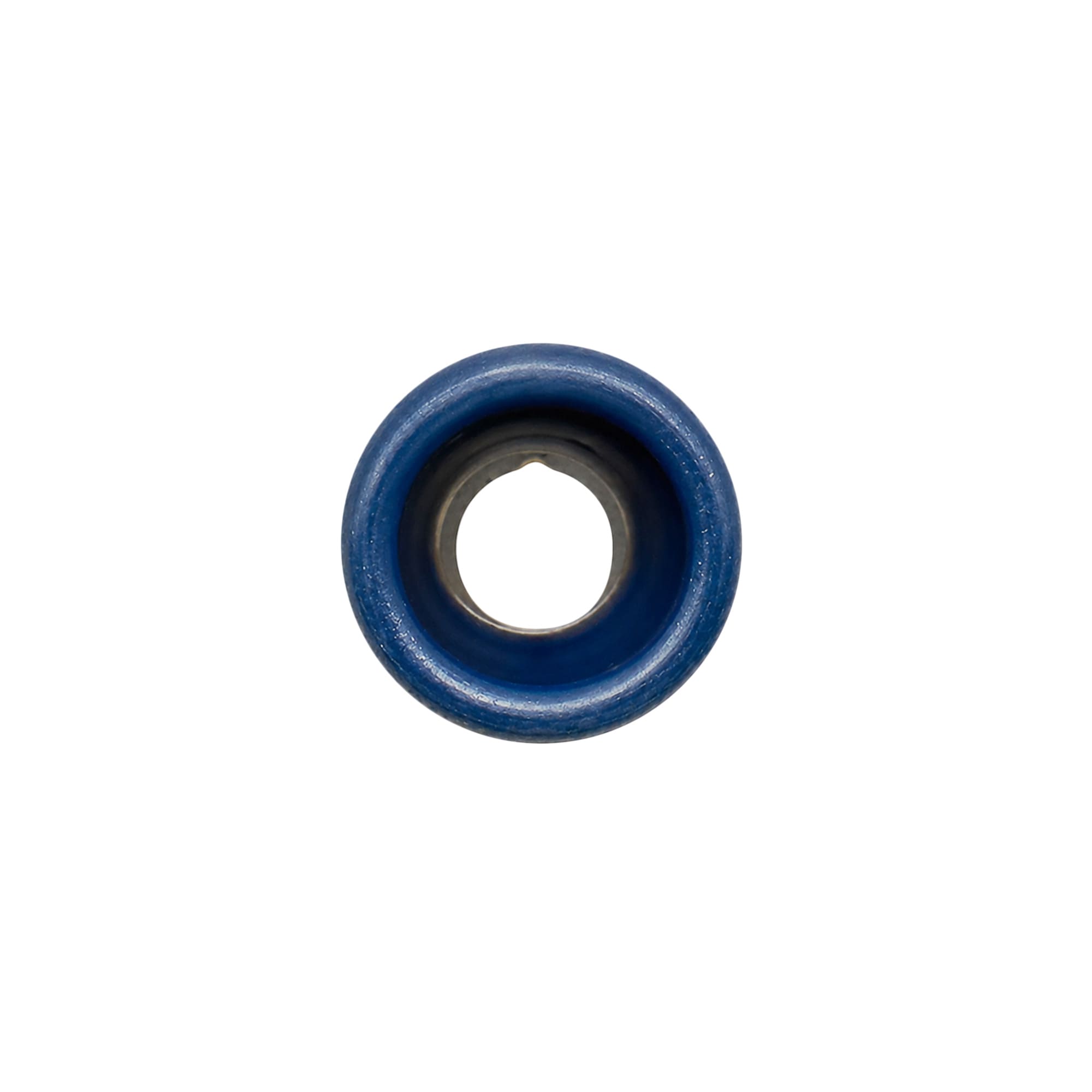

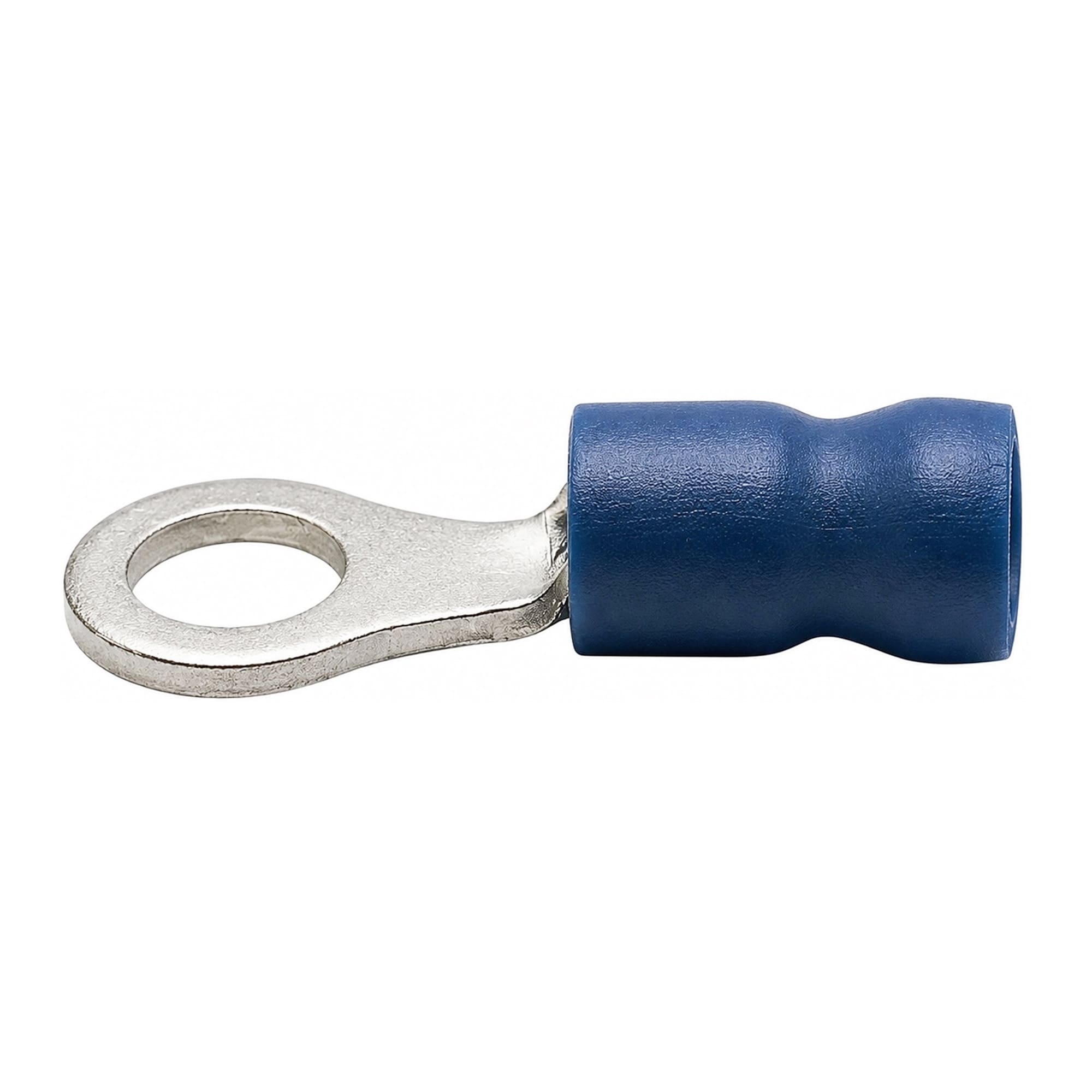

Ring terminal, PVC, EasyEnter, 2,5 sq. d.5,3
Code: 2B5P-EE-PVC
Ring terminal, PVC, EasyEnter, 2,5 sq. d.5,3
Code: 2B5P-EE-PVC
| Flange shape | Ring shape |
| Bolt dimension (metric) | 5 |
| Nominal cross section, mm² | 2.5...2.5 |
| According to DIN | Yes |
| Material | Copper |
| Surface protection | Tinned |
| Insulation | Polyvinyl chloride (PVC) |
| Max. current (Imax), A | 27 |
| For pull protected connections | Yes |
| Reel/roll packaging | Yes |
| AWG-range | 14...14 |
| Suitable for fine strand conductors | Yes |
| Suitable for flat conductors | Yes |
| Suitable for high temperatures (to 650 °C) | Yes |
| Suitable for insulated varnish | Yes |
| Suitable for solid cores | Yes |
| Useful for stranded conductors | Yes |
| Suitable for round conductors | Yes |
| Stud size (imperial) | 3/16 inch |
| Colour insulation | Grey |
| Sleeve type | single |
