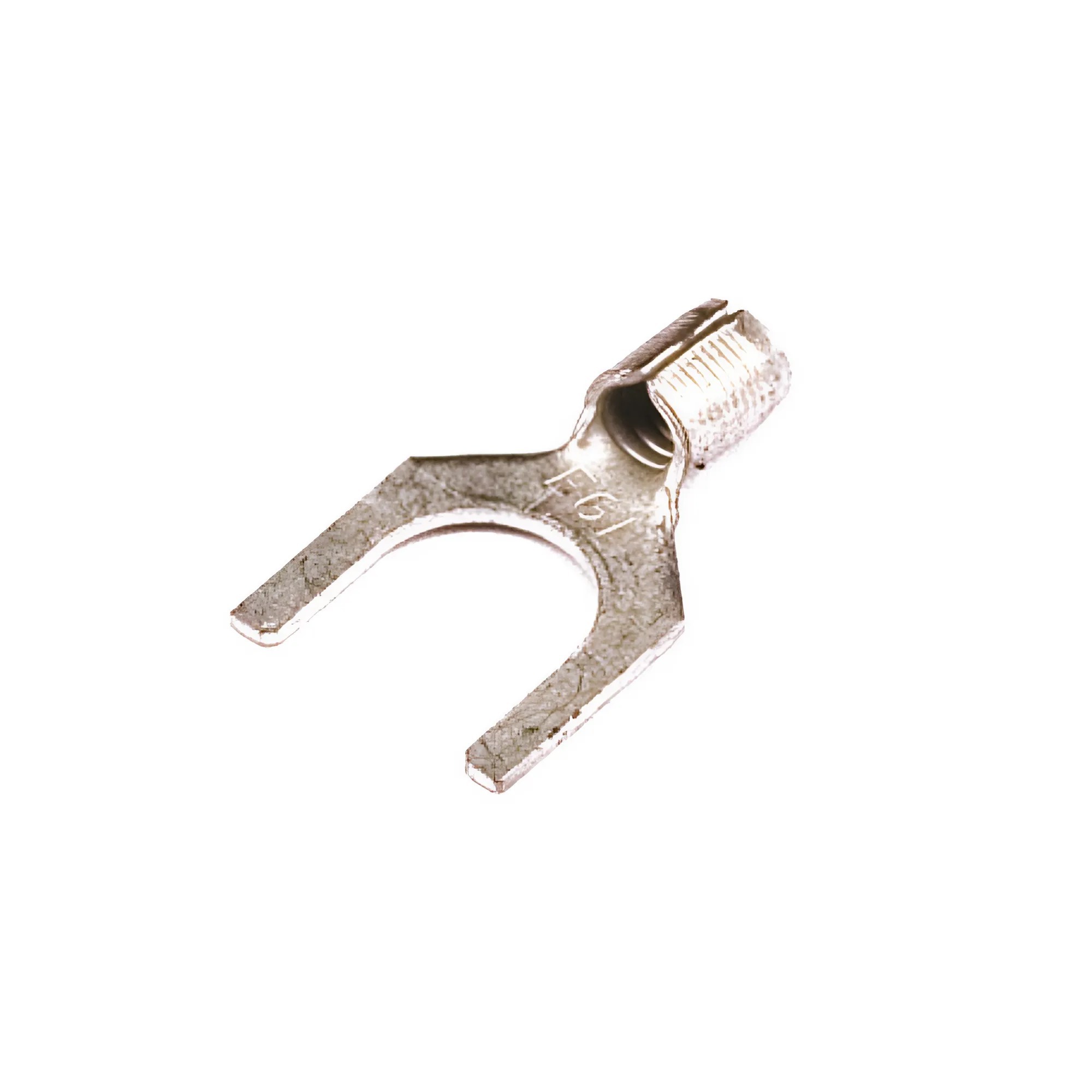

Spade terminals 0,25-1,5mm² 3,6mm

Code: 2A135
Spade terminals 0,25-1,5mm² 3,6mm
Spade terminals 0,25-1,5mm² 3,6mm
Insulated No
Surface protection Tinned
Nominal cross section, mm² 0.25…1.5
Connecting angle Straight
Flange shape Fork shape
Type of conductor Multi-wire
Material Copper
Bolt dimension metric (M..) 3,6
With sight-hole No
Slender flange model No
Insulation Not isolated
Flange shape Fork shape
