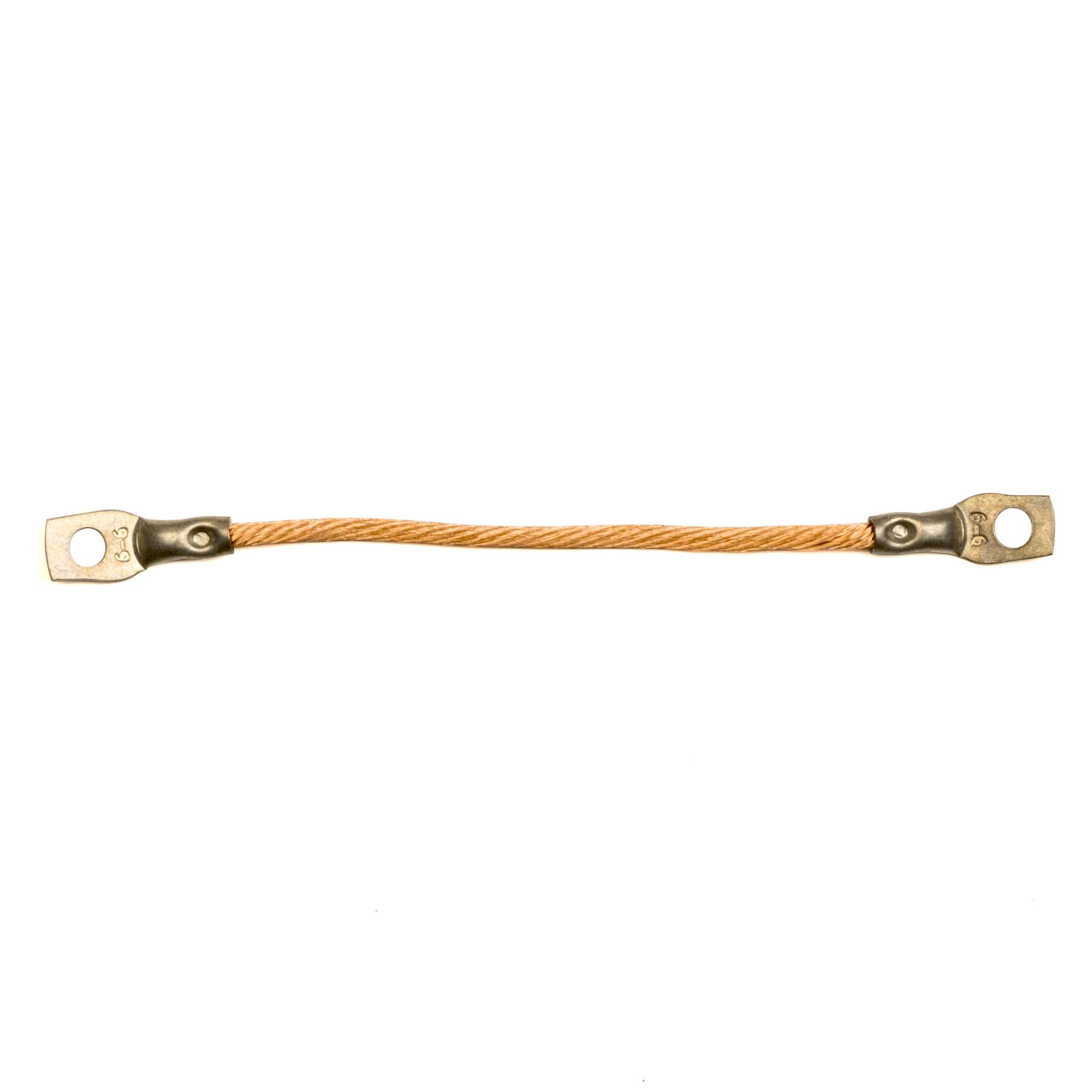

Parallel connectors round screw m6 6mm² 150mm

Code: 2TR1
Parallel connectors round screw m6 6mm² 150mm
Parallel connectors round screw m6 6mm² 150mm
Insulated No
Nominal cross section conductor, mm² 6
With connecting lugs Yes
Length, mm 150
Shape of conductor Round
Conductor material Cu, bare
Conductor category Class 6 = very flexible
Outer diameter approx., mm 6
Braided No
Connection lugs drilled Yes
Raw material copper
Length, mm 150
Drawings
Seria Name Eplan
Quadro - cable terminals
The System "Quadro"
RAR
27.23 MB
Certificates
Name Document
Quadro_ Exemption Letter for shrink tubes_DIN-rail, braid, frames and frames for EUI, drawing, accessories_1
PDF
1.30 MB
“Quadro”_ Exemption Letter for ground loops flexible twisted multicore
PDF
4.23 MB
“Quadro”_ Exemption Letter for fire safety on ground loops of flat and round cross section
PDF
269.29 kB
Declaration of conformity to TR TS 004/2011 for pre-insulated spade terminals_1
PDF
2.65 MB
