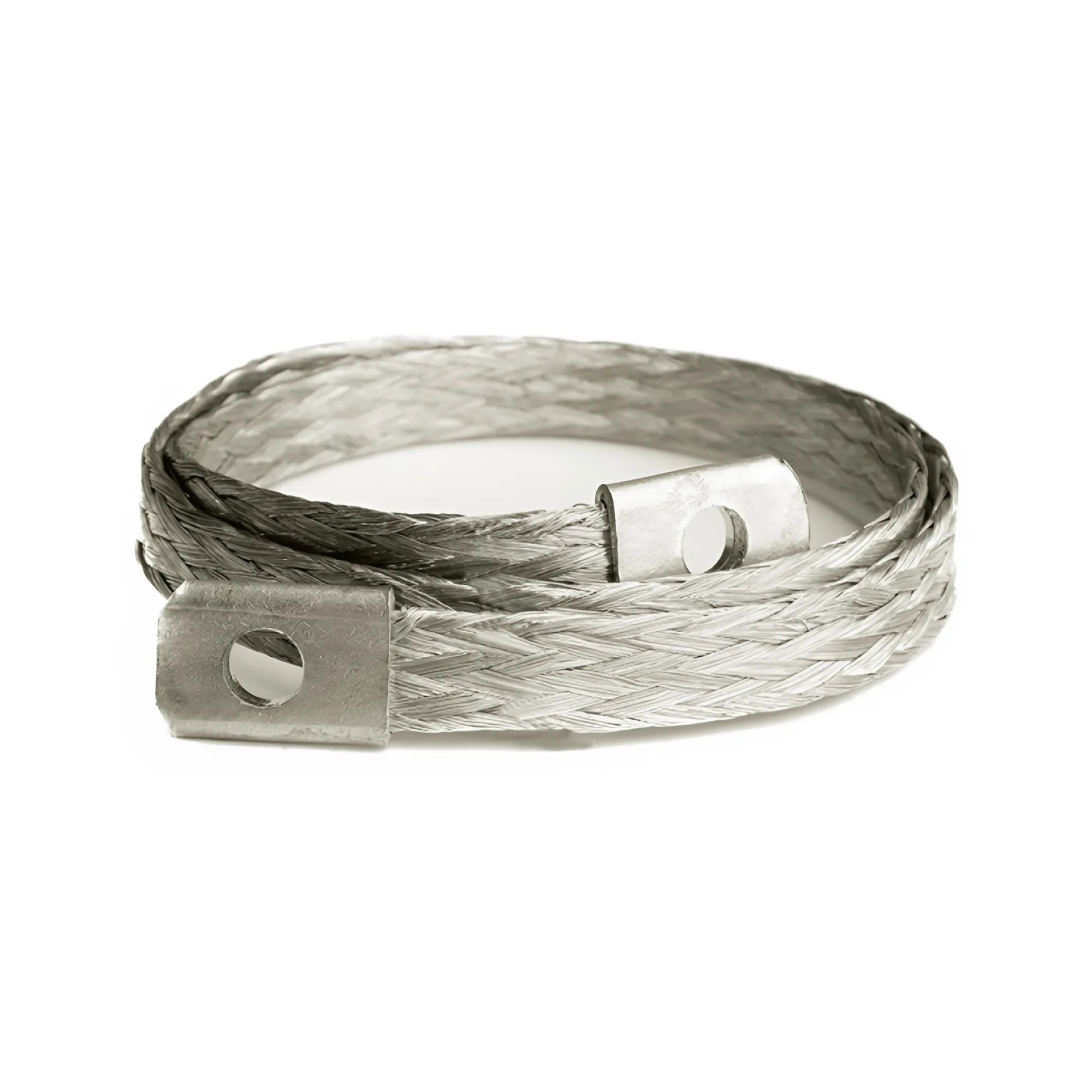

Parallel connectors screw m8 16mm² 660mm

Code: 2T11
Material Brass
Width, mm 16
Length, mm 660
Insulated No
Nominal cross section conductor, mm2 16
With connecting lugs Yes
Length, mm 660
Shape of conductor Flat
Conductor material Cu, bare
Conductor category Class 6 = very flexible
Outer diameter approx., mm 16
Braided No
Connection lugs drilled Yes
Drawings
Seria Name Eplan
Quadro - cable terminals
